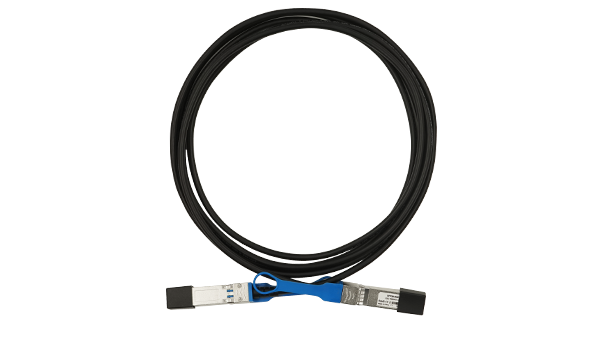

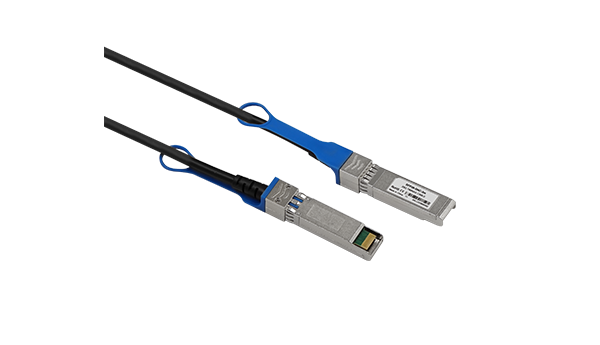

Passive SFP28 25G DAC cable for short-distance data center connections.
When optimizing rack-to-rack connectivity in high-density data centers, minimizing latency and power draw is critical for operational efficiency. This SFP28 direct attach cable provides a reliable physical layer solution for short-reach 25G Ethernet deployments.
Supporting 25 Gb/s bi-directional data links per IEEE 802.3by, this passive DAC eliminates active component failures while consuming less than 0.1W power, reducing cooling costs significantly. The 3-meter length enables flexible cabling between adjacent cabinets or top-of-rack switches without signal degradation.
Ideal for 25GBASE Ethernet applications requiring high port density, the SFP28-DAC-3m ensures hot-pluggable reliability with enhanced EMI design. It delivers enterprise-grade performance at lower cost compared to optical transceiver modules for intra-rack connections.
Supports up to 25 Gb/s bi-directional data links compliant with IEEE 802.3by standard.
Passive design consumes less than 0.1W, reducing data center energy and cooling costs.
Shielded high-speed differential cables ensure signal integrity in dense environments.
Allows installation and removal without powering down network equipment.
Complete technical details for integration and deployment planning.
| Product Type | SFP28 Direct Attach Cable |
|---|---|
| Cable Type | Passive |
| Length | 3 meters |
| Data Rate | 25 Gb/s |
|---|---|
| Bit Error Rate | E-12 |
| Protocol Support | IEEE 802.3by, SFF-8402 |
|---|---|
| RoHS Compliant | Yes |
| Supply Voltage | 3.14V to 3.46V |
|---|---|
| Power Consumption | Less than 0.1W |
| Input/Output Coupling | AC coupled |
| Operating Case Temperature | 0℃ to +70℃ |
|---|---|
| Storage Temperature | -40℃ to +85℃ |
| Relative Humidity (non-condensing) | 0% to 85% |
| Feature Support (Yes) | Hot-pluggable, Enhanced EMI design |
|---|
