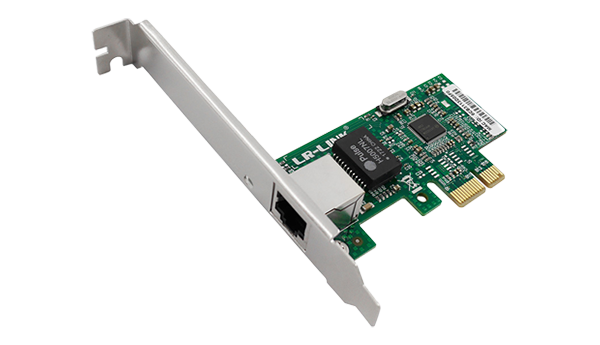

Single-port Gigabit Ethernet adapter based on Intel I211 with miniaturized design.
Deploying reliable connectivity in space-constrained industrial PCs or legacy server slots often requires balancing port density with physical footprint limitations. The LREC9202CT addresses this by offering a compact PCIe x1 form factor that delivers full gigabit performance without occupying valuable x4 or x8 slots needed for other expansion cards.
Powered by the Intel I211 controller, this adapter supports 10/100/1000Mbps data rates over Cat5e copper cabling up to 100 meters. With a low power consumption of just 1.0W and support for Energy Efficient Ethernet (EEE), it reduces operational costs while maintaining high reliability through error-correcting memory protection and four send/receive queues.
Ideal for general-purpose server networking, industrial automation control systems, and desktop upgrades requiring stable Gigabit connectivity. The Intel I211 chipset ensures broad OS compatibility and proven stability, making the LREC9202CT a cost-effective solution for scalable network infrastructure deployment.
Based on Intel I211 master control integrating gigabit MAC/PHY for high performance and reliability.
Supports IEEE 802.3az Energy Efficient Ethernet (EEE) and DMA merging to reduce power consumption to 1.0W.
Miniaturized PCIe x1 form factor with full and half-height baffles, ideal for space-constrained systems.
Features 4 send/4 receive queues and error-correcting memory protection to ensure stable data transmission.
Compatible with Ethernet and Fast Ethernet, supporting Windows, Linux, FreeBSD, and VMware environments.
Complete technical details for integration and deployment planning.
| Controller | Intel I211 |
|---|
| Bus Type | PCIe v2.1 x1, compatible with x4, x8, x16 |
|---|
| Connector | 1*1G RJ45 |
|---|---|
| Cable Medium | Copper |
| Cable Type | 1GBase-T, Cat 5e or higher up to 100m; 100MBase-T, Cat 5 or higher up to 100m; 10MBase-T, Cat 3/4/5/5E/6 or higher up to 100m |
| Data Rate | 10/100/1000Mbps |
|---|
| Power Consumption | 1.0W |
|---|
| Standards Compliant | IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3z, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|---|
| Supported Features | PXE, DPDK, Jumbo frame |
|---|
| Unsupported Features | iSCSI, FCoE, WoL |
|---|
| Baffle Configuration | Full height & half height |
|---|---|
| PCB Size(mm) | 80*44.3*1.6 |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Windows | Windows 7/8/8.1/10/11, Windows Server 2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 |
|---|---|
| Linux | Stable Kernel version 2.6.x/3.x/4.x or later; CentOS/RHEL 6.5 / 7.x or later; Ubuntu 14.x/15.x/16.x or later |
| Other | FreeBSD 9 / 10 / 11 or later, VMware ESX/ESXi 4.x/5.x/6.x or later |
