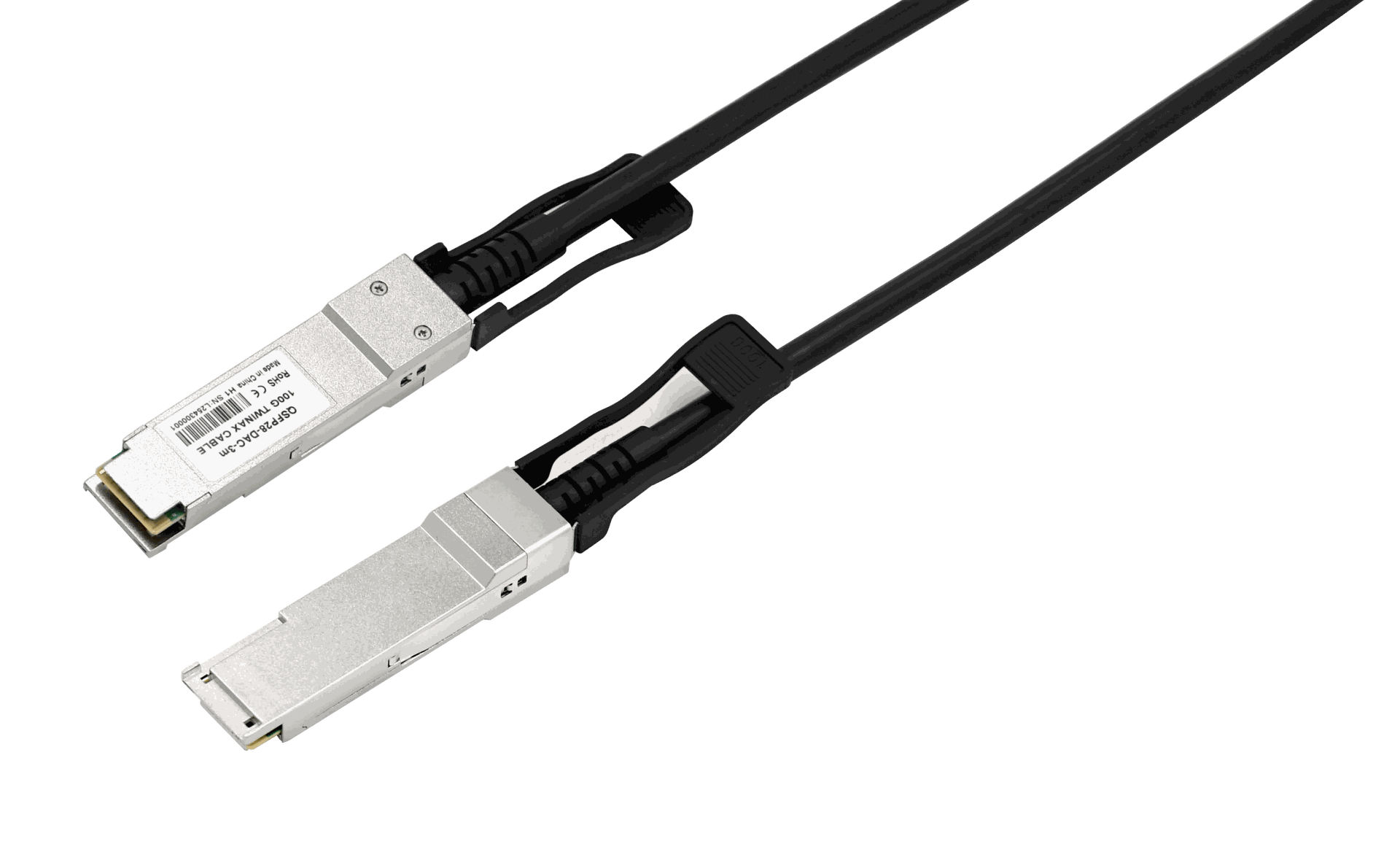

100G QSFP28 passive DAC cable for short-distance data center interconnects.
When connecting switches and servers within the same rack, optical modules often add unnecessary cost and power overhead. This QSFP28 passive copper cable assembly provides a direct, energy-efficient alternative for short-reach 100G links.
Supporting up to 100Gb/s bi-directional data rates with less than 0.1W power consumption, this 3-meter 28AWG cable eliminates active component latency while ensuring signal integrity via shielded differential pairs. Its compliance with IEEE 802.3bj guarantees interoperability in demanding environments.
Ideal for intra-rack connections in AI clusters and cloud data centers, the LRDAC-QSFP28-3M delivers high reliability at a fraction of optical transceiver costs. It enables dense, low-latency networking without compromising on performance or thermal management.
Supports up to 100Gb/s bi-directional data links compliant with QSFP28 MSA.
Passive design consumes less than 0.1W, reducing data center cooling costs.
All-metal housing provides superior EMI performance for reliable signal integrity.
Fully compliant with IEEE 802.3bj, 802.3by and Infiniband EDR specifications.
Complete technical details for integration and deployment planning.
| Product Type | QSFP28 Passive Copper Cable Assembly |
|---|---|
| Data Rate | Up to 100Gb/s bi-directional |
| Cable Length | 3m |
| Wire Gauge | 28AWG |
| Protocol Support | IEEE 802.3bj, IEEE 802.3by, Infiniband EDR |
|---|---|
| MSA Compliance | QSFP28 MSA |
| RoHS | Compliant |
| Power Consumption | <0.1W |
|---|---|
| Supply Voltage | 3.3V (3.14V-3.46V) |
| Differential Impedance | 100 Ohm |
| Bit Error Rate | 10^-12 |
| Operating Temperature | 0°C to 70°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Housing | All-metal housing |
|---|---|
| Connector | QSFP28 |
