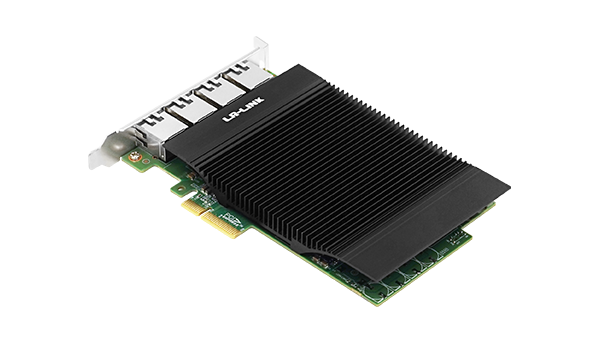

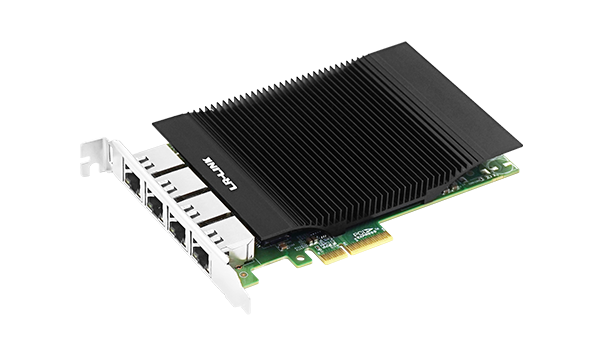

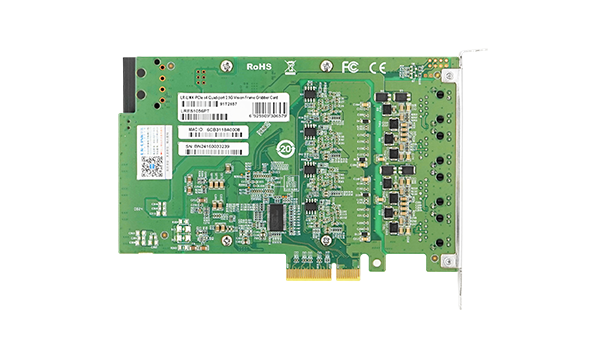

Quad-port 2.5G Vision Frame Grabber Card based on Intel I226, supporting PCIe 2.0 x4 interface for industrial vision applications.
Industrial visual inspection systems often struggle with bandwidth bottlenecks when capturing high-resolution images from multiple cameras simultaneously. The LRES1056PT PCIe x4 Quad-Port 2.5G Vision Frame Grabber Card addresses this by providing four independent electrical ports, enabling efficient multi-device data collection without compromising latency or throughput.
Built on the Intel I226 controller, this card supports data transmission speeds up to 2.5Gbps per port, delivering a total aggregate bandwidth sufficient for demanding imaging tasks. With support for jumbo frames up to 9.2KB and compatibility with PCIe 2.0 x4 slots (also compatible with x8/x16), it ensures stable, high-performance data transfer. The card consumes between 5.88W and 9.36W, making it energy-efficient for dense server deployments.
Ideal for applications such as intelligent monitoring systems, medical imaging diagnosis, and industrial automation, the LRES1056PT offers robust connectivity via RJ45 ports up to 100 meters. Its Intel I226-based design provides reliable packet processing and low latency, ensuring high-quality image data collection for critical real-time analysis.

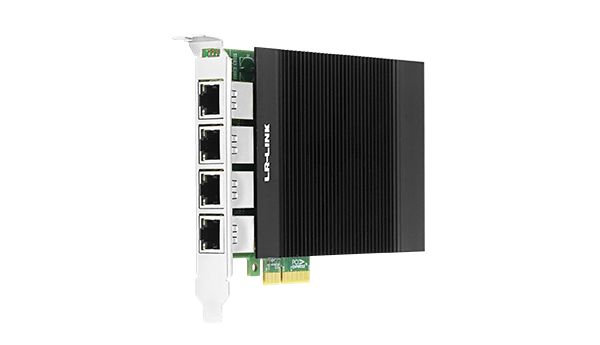

Four independent RJ45 ports supporting up to 2.5Gbps speed for high-throughput data acquisition.
Based on the reliable Intel I226 main controller solution for stable and efficient performance.
Optimized for industrial visual inspection, intelligent monitoring, and medical imaging diagnosis.
Supports CAT5e, CAT6A, or CAT7 cables with transmission distances up to 100 meters.
Supports IEEE 1588 PTP for synchronized data transmission across multiple devices.
Complete technical details for integration and deployment planning.
| Model | LRES1056PT |
|---|---|
| Controller | Intel I226 |
| Bus Interface | PCIe 2.0 (5.0GT/s) x4 |
| Connector | 4x RJ45 |
| Data Rate per Port | 10Mbps; 100Mbps; 1Gbps; 2.5Gbps |
|---|---|
| Transmission Distance | Up to 100 meters |
| Jumbo Frame (max) | 9.2KB |
| Power Supply | PCIe |
|---|---|
| Power (min) | 5.88W |
| Power (max) | 9.36W |
| Dimensions (WxL) | 156.7mm x 104.4mm |
| Bracket | Full Height |
| Protocol Support | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x |
|---|---|
| Feature Support (Yes) | UEFI, WoL, Jumbo Frames, 1588 PTP |
| Feature Support (No) |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Certification | FCC, CE, RoHS |
| ESD | ±8kV |
| Lightning surge test | ±2kV |
