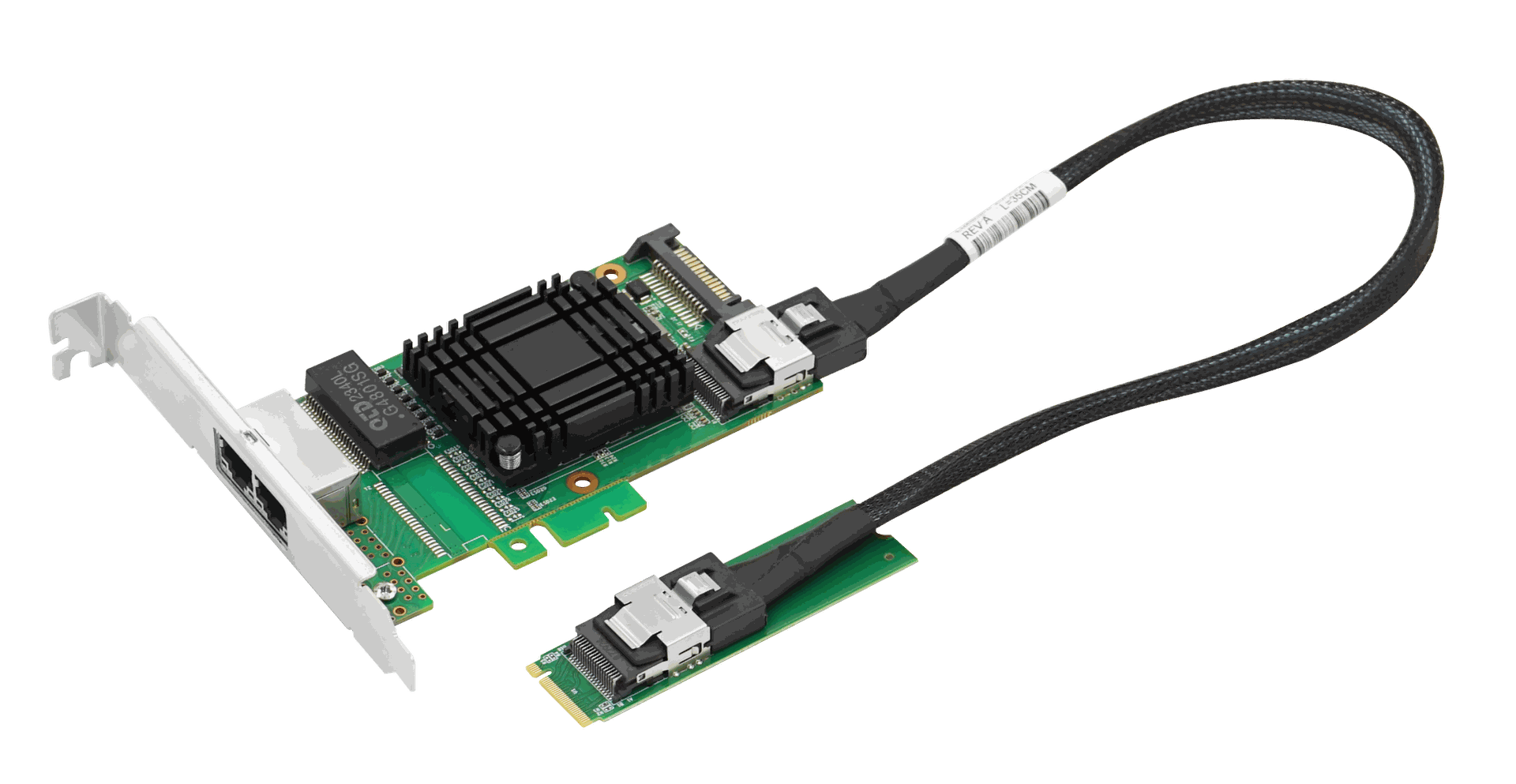

LRES2030PT-2RJ45 is a 1G Dual-port to SFF-8087/M.2 Ethernet Network Adapter developed by Linkreal Co. Ltd. based on Intel I350 master solution. It directly converts to two RJ45 ports through M.2 interface without taking up valuable PCIe slots, providing a more flexible network expansion solution for industrial automation systems. The adapter not only provides high-speed and stable data transmission capability, but also ensures the reliability and compatibility of the network connection, meeting the strict requirements of real-time, accuracy and efficiency in the industrial automation field. Whether it is data transmission in production lines, remote monitoring of equipment or centralised management of systems, the LRES2030PT-2RJ45 is an indispensable network connectivity solution for industrial automation as it can help companies optimise their production processes with its practical, efficient and reliable performance.
Model | LRES2030PT-2RJ45 | |
Controller | Intel I350 | |
Cable medium | copper | |
Fiber Type | 1000BASE-T, 100BASE-TX, and 10BASE-T | |
Bracket Height | Low Profile & Full Height | |
Connector | 2*RJ45 + M.2 Interface | |
Bus Type | PCIe v2.1 ( 5.0GT/s)x4 | |
Data rate per port | 10Mbps/100Mbps/1000Mbps | |
ESD(Contact discharge) | 8KV (Class A) | |
Power Supply | 15Pin SATA power socket | |
Protocol Support | IEEE 802.3 IEEE802.3u IEEE802.3ab IEEE Std 1588 PTP IEEE 802.1Q VLAN IEEE 802.3az - Energy Efficient Ethernet (EEE) | |
System Support | * Windows 7/8/8.1/ 10/11 * Windows Server 2008/ 2012 * Windows Server 2016/2019 * Windows Server 2022 * RHEL/Centos7.6/7.9/8.2/8.3/9.0 * Deepin 15.11/20/20.6 * Ubuntu 16.04.3/18.04.5/20.04.1 * Ubuntu 22.04.2/ 24.04 * SUSE 12.5/15.4 * FreeBSD 12.2/13.2 * NewStart Server OS 6.6.6 * NewStart Desktop OS 4.5.2 * Galaxy Unicorn v10 | * NeoKylin 7.6 * Fangde Desktop OS 5.0 * Fangde Server OS 4.0 * UOS 20 * Rocky 9.4 * OpenEuler 24.03 * Debian 12.5.0 * FusionOS 22.06/23.06 * YMOS * OpenKylin 2.0 * VMware ESXi 6.7/7.0/8.0 * iKuai router |
1588PTP | Yes | |
WoL | No | |
SR-IOV | Yes | |
PXE/UEFI | Yes | |
DPDK | Yes | |
Jumbo Frames | 9.2KB | |
Hot Swap | Yes | |
