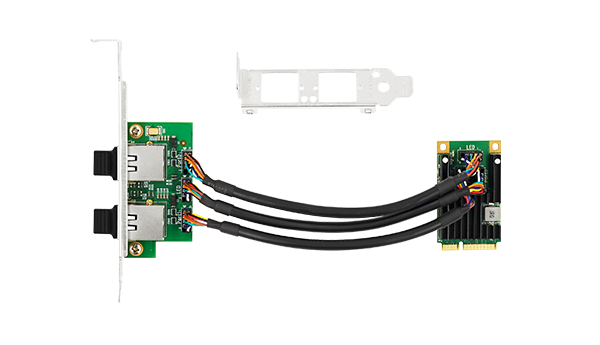

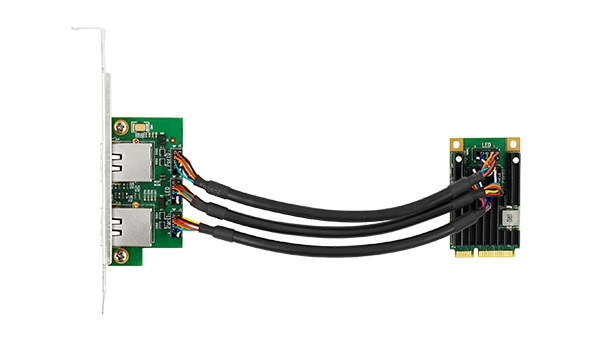

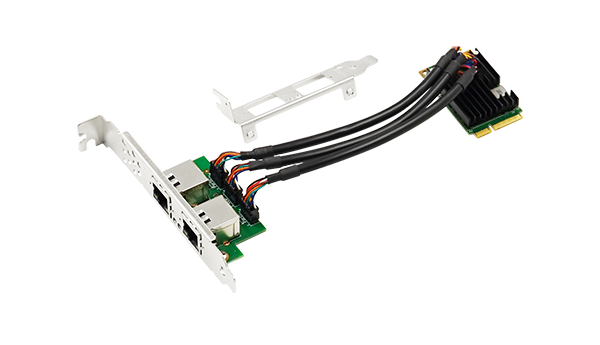

LRES2217PT is a Mini PCIe dual port gigabit ethernet network adapter developed by Linkreal Co., Ltd. based on Intel master control solution.
The adapter adopts Mini PCI-E full-height slot design, which is designed to be used in industrial computers, single board computers and other industrial equipment with Mini PCIe interface slots. It can greatly solve the problem of compact device space. The ethernet adapter supports 10/100/1000Mbps connection rate to automatically adapt to the existing ethernet network.
This ethernet adapter can be widely used in industrial computer, embedded computer, single board computer, digital multimedia and other network equipment, can achieve Windows, Linux and other systems support.
Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (Intel I350): LRES2203PF-2SFP
Controller | Intel I350 |
Baffle Height | Half height and full height configuration |
Power Consumption | 3.0W |
System Support | Windows 7/8/8.1/10/11; |
Windows Server 2008 R2/2012 R2/2016 R2/2019 R2/2022 R2 | |
Linux Stable Kernel version 2.6.x / 3.x/4.x or later; | |
Linux CentOS/RHEL 6.x / 7.x or later; | |
Ubuntu 14.x/15.x/16.x or later; | |
VMware ESX/ESXi 4.x/5.x/6.x or later; | |
Bus Type | Mini PCIe |
Data rate | 10/100/1000MbE |
Connector | 2*8-Pin RJ45 |
Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) |
PXE | No |
DPDK | Yes |
Jumbo Frames | Yes |
iSCSI | No |
Jumbo Frames | Yes |
WoL | No |
FCoE | No |
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
