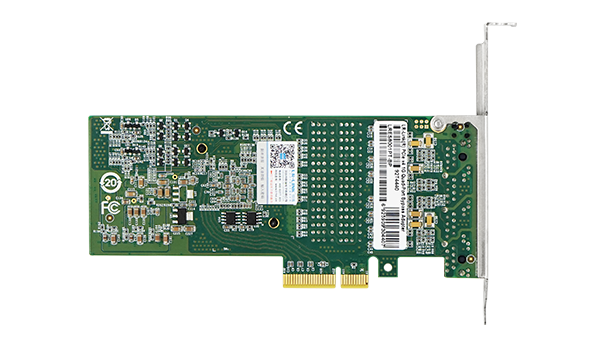

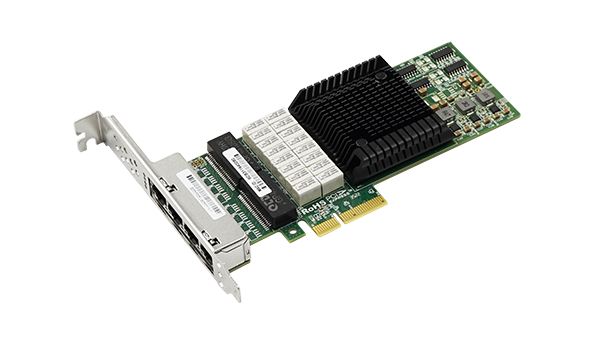

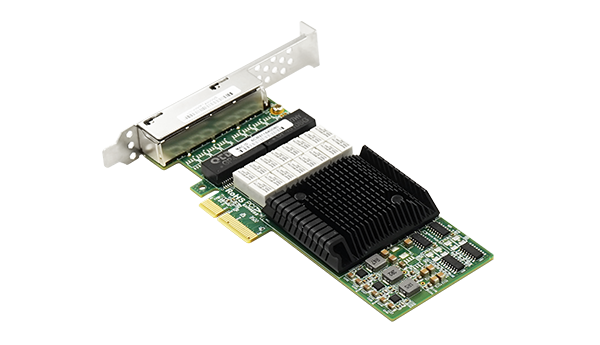

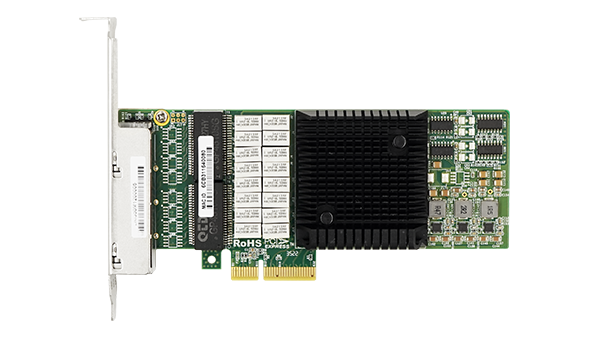

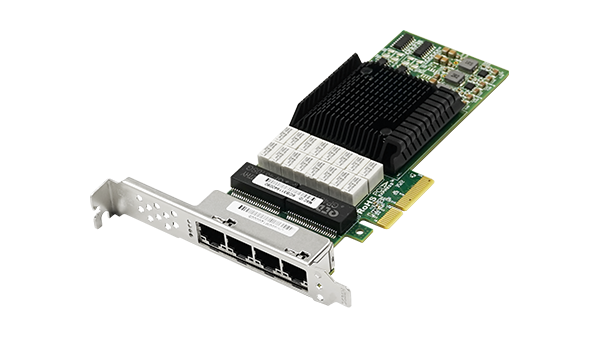

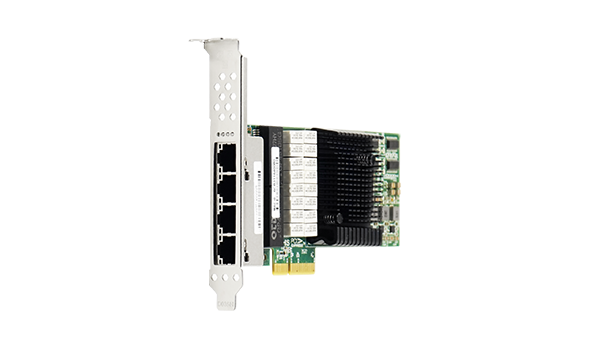

Quad-port Gigabit bypass NIC with Intel I350 for fail-safe network security appliance deployments.
When network security appliances fail, maintaining traffic flow is critical to prevent costly downtime. The LRES8001PT-BP bypass network adapter solves this by automatically switching to hardware bypass mode if the host system becomes unresponsive.
Based on the Intel I350 controller, this card provides four independent 10/100/1000Mbps RJ45 ports via a PCIe x4 interface. Its integrated watchdog timer triggers bypass instantly upon server failure, ensuring uninterrupted data transmission without manual intervention.
Ideal for firewalls, IDS/IPS systems, and UTM devices, the LRES8001PT-BP delivers reliable fail-open protection. Unlike standard NICs, it guarantees network availability even during complete system outages, making it essential for mission-critical security infrastructure.
Supports normal, disconnected, and bypass modes to maintain network connectivity during system failures.
Automatically triggers bypass mode if the server fails to send dog feeding commands, preventing network disruption.
Based on Intel I350 chip solution with four fully integrated MAC and PHY ports on a single chip.
Four independent 10/100/1000Mbps adaptive copper interfaces for flexible network deployment.
Enables high-performance packet processing for data plane development kit applications.
Supports IEEE 802.3az EEE standard to reduce power consumption during low data activity periods.
Complete technical details for integration and deployment planning.
| Chipset | Intel I350 |
|---|
| Bus Type | PCI Express v2.1 (5.0GT/s) x4,x8,x16 |
|---|---|
| Data Rate Per Port | 10/100/1000Mbps |
| Connector | 4*8-Pin RJ45 |
|---|---|
| Cable Medium | Copper Cable |
| Max Distance (1000Base-T) | Cat 5E and Cat 6: up to 100m |
| Max Distance (100Base-T) | Cat 5E and Cat 6: up to 100m |
| Power Consumption | 5.5W |
|---|
| Protocol Support | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az |
|---|
| Feature Support (Yes) | DPDK, Jumbo Frames, Dual-way Bypass, Watchdog Timer |
|---|
| Feature Support (No) | PXE, WoL, iSCSI, FCoE |
|---|
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
| PCB Size | 156*120.8*21 mm |
|---|---|
| Bracket Height | Low Bracket & Full Bracket |
| Weight | 103.4 g |
| LED Indicators | Bypass: Blue Light; Bypass Not-connected: Yellow Light; Normal: Off; 1000Mbps: Green Link + Green Blink; 100/10Mbps: Yellow Link + Green Blink |
| Windows | Windows 7, 8, 8.1, 10, 11; Windows Server 2008/R2, 2012/R2, 2016/R2, 2019/R2, 2022/R2 |
|---|---|
| Linux | Stable Kernel version 2.6.x/ 3.x/ 4.x or later; CentOS/RHEL 6.x/7.x or newer; Ubuntu 14.x/16.x or newer |
| FreeBSD | FreeBSD 9/10/11 or newer |
| VMware | Vmware ESX/ESXi 5.x/ 6.x or later |
