Dual-port M.2 adapter supporting both NVMe and SATA SSDs via PCIe 3.0 x4 interface.

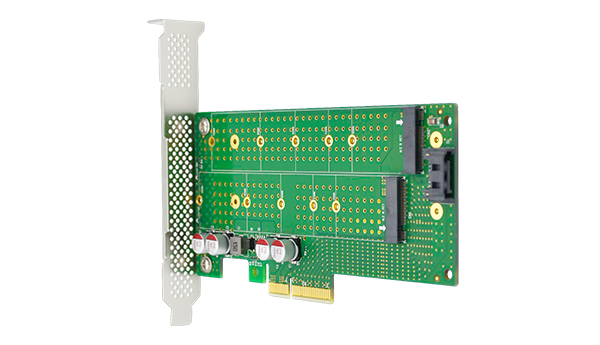

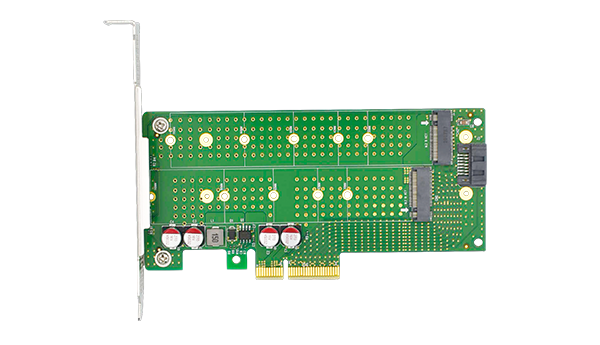

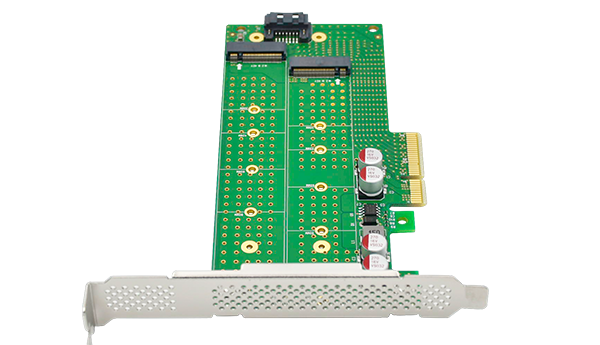

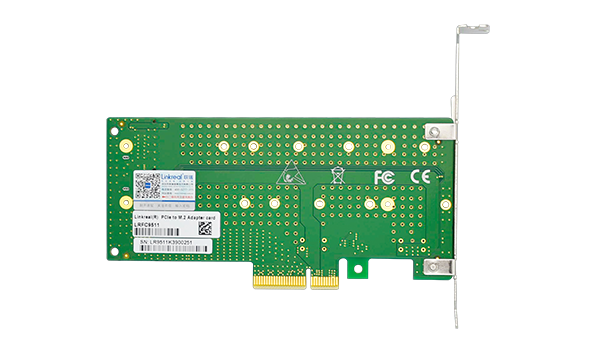

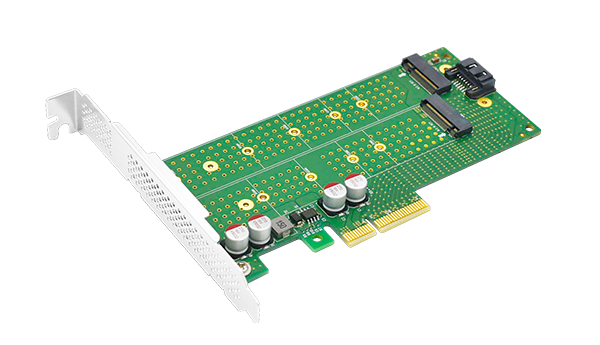

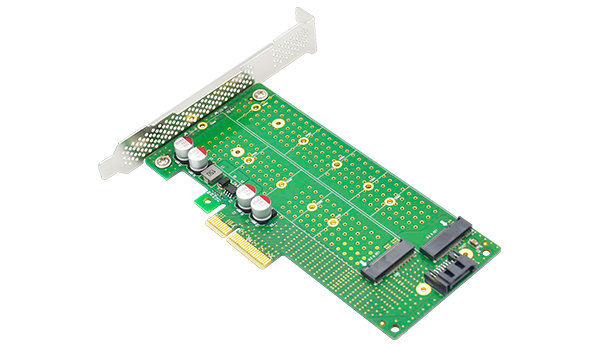

The Linkreal LRNV9511 is a high-performance M.2 SSD adapter card designed to expand storage capacity in desktop PCs and servers. Uniquely, it supports both PCIe NVMe and SATA-based M.2 solid-state drives, providing flexibility for various storage needs.
Equipped with a PCIe 3.0 x4 host interface, the adapter ensures high-speed data transfer rates while maintaining backward compatibility with PCIe 2.0 and 1.0 motherboards. This allows users to leverage the fast performance of modern M.2 drives even on older systems.
The card features two internal M.2 connectors compatible with M-Key and B-Key drives, supporting common form factors including 2230, 2242, 2260, 2280, and 22110. It includes both full-profile and low-profile brackets, making it suitable for standard towers and small form-factor computers.
Supports both PCIe NVMe and SATA-based M.2 SSDs for maximum compatibility.
High-speed PCIe 3.0 x4 connection with backward compatibility to PCIe 2.0/1.0.
Compatible with M.2 sizes 2230, 2242, 2260, 2280, and 22110.
Includes both full-profile and low-profile brackets for various chassis types.
Complete technical details for integration and deployment planning.
| Model | LRNV9511 |
|---|---|
| Number of Drives | 2 internal |
| Bus Type | PCI Express |
| Compatible Drive Types | M.2 (M-Key + B-Key) |
| Drive Connectors | M.2 (M-Key + B-Key) |
|---|---|
| Host Connectors | PCI Express x4 |
| Dimension | 139mm*69mm |
|---|---|
| Product Weight | 52g |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
|---|---|
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity | 20% ~ 80% |
| Warranty | 2 Years |
|---|
