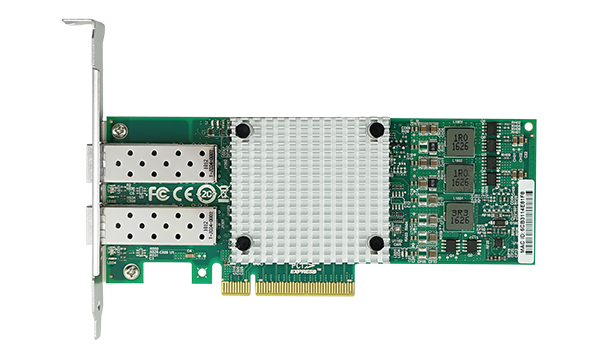

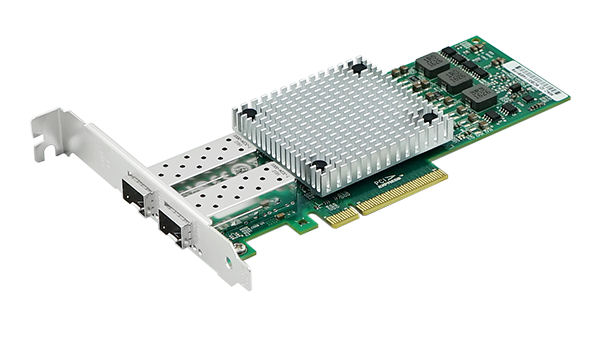

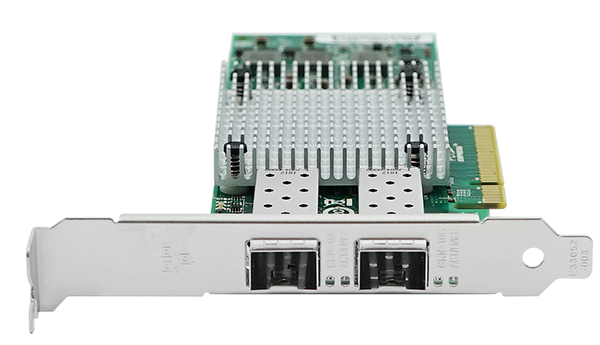

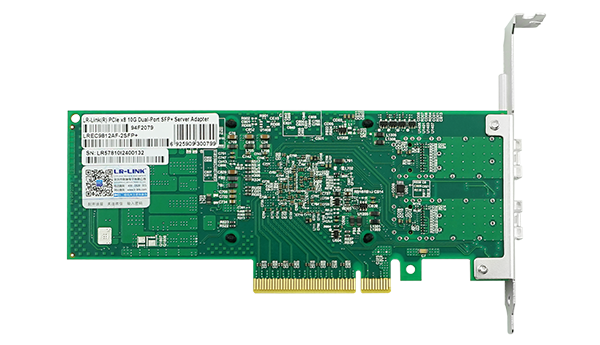

Dual-port 10G SFP+ PCIe network adapter based on Broadcom BCM57810 for data centers.
When network I/O bottlenecks hinder virtualization performance in enterprise servers, reliable dual-path connectivity becomes essential for maintaining uptime. The LREC9812AF-2SFP+ network adapter addresses this by enabling redundant link aggregation.
Built on the Broadcom BCM57810 controller, this card delivers 10Gbps per port over PCIe 2.0 x8, eliminating bandwidth constraints in multi-network deployments. With support for Jumbo Frames up to 15KB and FCoE offload, it reduces CPU overhead during heavy data transfers, ensuring efficient storage networking integration.
Ideal for mission-critical applications requiring real-time failover, this adapter ensures uninterrupted communication by routing traffic from faulty ports automatically. Unlike generic alternatives, its Broadcom foundation offers proven compatibility with VMware ESXi and Windows Server, making it a dependable choice for data center upgrades.
Developed on the basis of Broadcom chip BCM57810 for reliable enterprise performance.
Flexible dual-port 10GbE link rate facilitating ease of use in multi-network deployments.
Bundles and aggregates multiple ports to protect network performance and expand bandwidth.
Supports FCoE and iSCSI offloads for next-generation data center virtualization needs.
Supports Windows Server, VMware ESXi, Linux distributions, and domestic OS platforms.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Chipset | Broadcom BCM57810 |
|---|
| Bus Type | PCIe v2.0 (5.0GT/s) x8; compatible with x16 |
|---|
| Connector | 2*10G SFP+ |
|---|---|
| Data Rate Per Port | 1/10Gbps |
| Cable Medium | Fiber Optics |
| Cable Type | 10GBASE-SR, 10GBASE-LR, 1000BASE-SX, 1000BASE-LX |
| Power Supply | PCIe |
|---|---|
| Power (min) | 6.084W |
| Power (max) | 7.776W |
| Protocol Support | IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3q, IEEE 802.3az, IEEE 802.3, IEEE 802.1Qau |
|---|
| Feature Support (Yes) | Ethernet Power Management, PXE, iSCSI, Jumbo Frame, UEFI, FCoE |
|---|---|
| Jumbo Data Frame Max | 15KB |
| Feature Support (No) | DPDK, WoL, SCAN CHAIN, VMDq, SR-IOV, 1588 PTP |
|---|
| Operating Temperature | 0℃ to 55℃ (32 ℉ to 131 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 65 ℃ (-40 ℉ to 149 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| ESD Contact Discharge | ±4KV |
| Certification | FCC, CE, RoHS |
| Bracket Height | Low Profile & Full Height |
|---|---|
| PCB Size (LxWxH) | 164.83 x 68.89 x 1.6 mm |
| Package Size (LxWxH) | 222 x 147 x 28 mm |
| OS Compatibility | Windows 8/8.1/10/11, Windows Server 2012/2016/2019/2022, Deepin 15.11/20/20.6/20.9, VMware ESXi 6.5/6.7/7.0, Galaxy Unicorn v10, NeoKylin 7.6, RHEL/CentOS 7.9/8.2/8.3, Ubuntu 16.04.3/18.04.5/20.04.1/22.04.2, SUSE 12SP5/15SP4, FreeBSD 12.2/13.2, ZTE New Fulcrum 5.0.5/3.2.2, Asianux Server v7.0, Zhongke Fangde server operating system, EmindOS, iKuai router |
|---|
