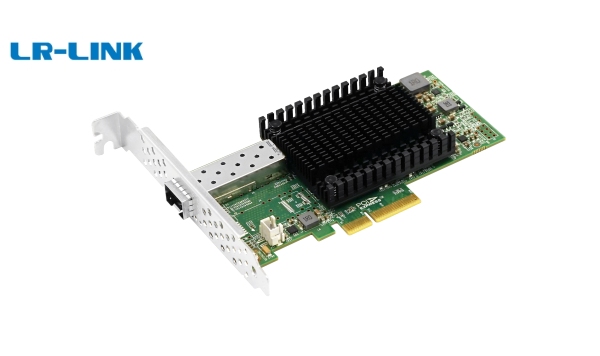

Single-port 2.5G SFP+ network adapter based on XILINX XC7A35T FPGA, supporting PCIe 2.0 x4 interface for high-speed data transmission.
Network bottlenecks in specialized industrial or research environments often require flexible, customizable connectivity solutions that standard ASICs cannot provide. The LREG1009PF addresses this need by offering a programmable FPGA-based approach to high-speed networking.
Powered by the XILINX XC7A35T FPGA, this adapter delivers data transfer rates up to 2.5Gbps via a single SFP port. This architecture allows for independent driver development and logic customization, enabling seamless integration into diverse network topologies while maintaining PCIe 2.0 compliance for broad server compatibility.
Ideal for applications demanding low power consumption and high reliability, such as edge computing nodes or specialized testbeds, the card operates efficiently within a 1.536W to 2.304W power range. Its robust design ensures stable performance across operating temperatures from 0℃ to 70℃, providing a dependable solution for critical data transmission tasks.
Based on XILINX XC7A35T FPGA with independently developed logic functions and drivers.
Supports data transfer rates up to 2.5Gbps for efficient large file handling.
Single optical port bidirectional communication adaptable to different network topologies.
High-performance design with power usage between 1.536W and 2.304W.
Complete technical details for integration and deployment planning.
| Model | LREG1009PF |
|---|---|
| Controller | XILINX XC7A35T |
| Bus Type | PCIe v2.0 (5.0GT/s) x1; Structure PCIe x4, compatible with x8 x16 |
| Connector | 1*2.5G SFP |
| Data Rate per Port | 2.5Gbps |
|---|---|
| Cable Medium | Optical Fiber |
| Cable Type | 2500MBase-SX、2500MBase-LX、2500MBase-Cu |
| Maximum Package Length | 1518Bytes |
| Power (min) | 1.536W |
|---|---|
| Power (max) | 2.304W |
| Power Supply | PCIe |
| PCB Size | 129.2*68.94*1.6 mm |
| Bracket Height | LowProfile & Full Height |
| Operating Temperature | 0℃ to 70℃ (32 ℉ to 158 ℉) |
|---|---|
| Storage Temperature | -55 ℃ to 105 ℃ (-67 ℉ to 221 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
| Operating System Support | CentOS 7.9 |
|---|---|
| Protocol Support | |
| Feature Support (Yes) | Multi-vector MSI, up to 32 vectors |
| Feature Support (No) |
