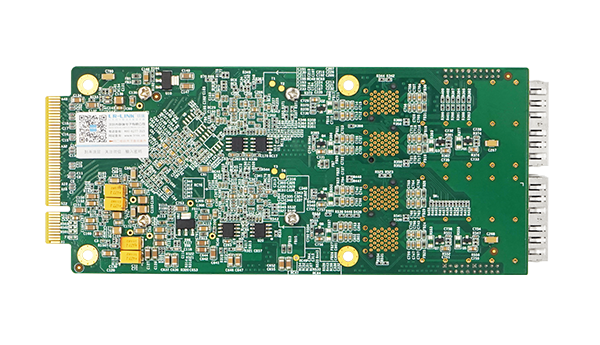

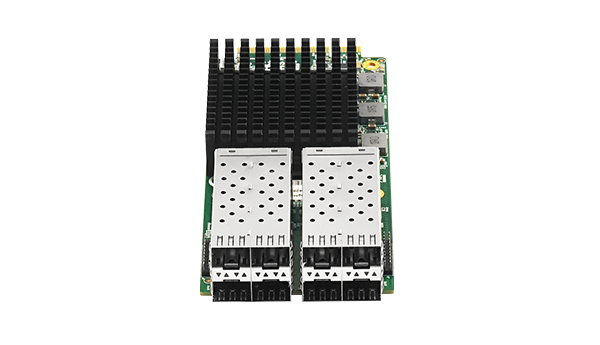

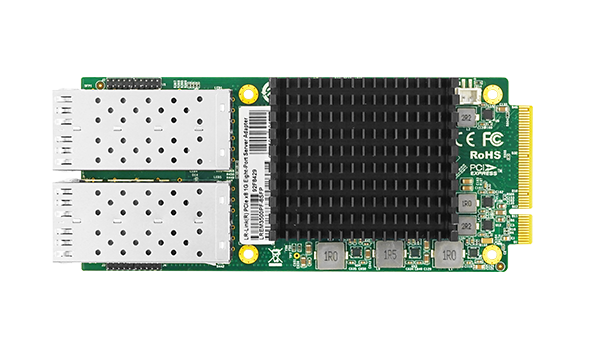

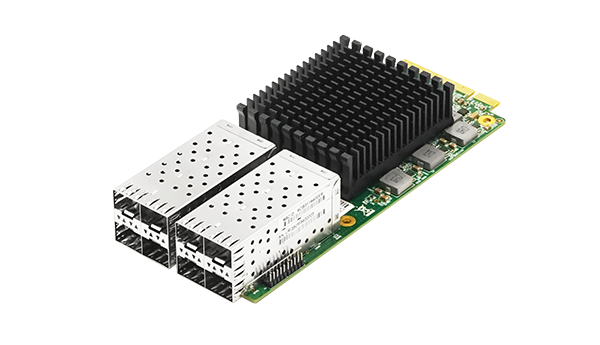

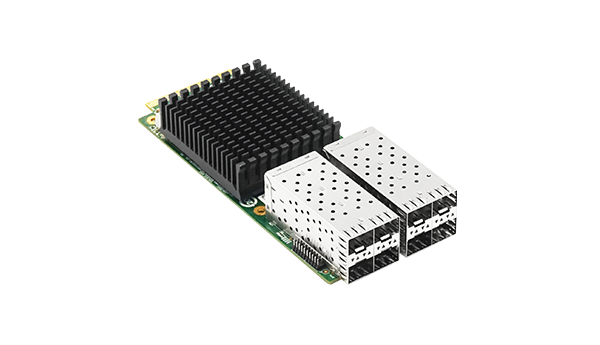

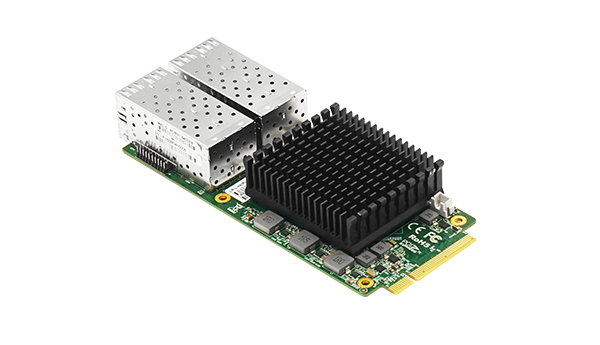

Eight-port Gigabit Ethernet mezzanine adapter based on Intel I350 for high-density server networking.
High-density server environments often struggle with limited PCIe slots while requiring extensive network connectivity for firewall and gateway applications. The LREM3501PF-8SFP mezzanine adapter solves this by delivering eight independent Gigabit Ethernet ports within a compact form factor, optimizing chassis space without sacrificing bandwidth.
Built on the Intel I350 controller, this adapter ensures broad system compatibility and stability for critical infrastructure. With eight 1G SFP ports operating in full-duplex mode simultaneously, it enables link aggregation to increase network traffic bandwidth or provide redundancy. The PCIe x8 interface efficiently manages data flow, saving valuable PCIe channel resources in 1U chassis deployments.
Ideal for data centers requiring robust data monitoring and gatekeeping capabilities, this adapter supports DPDK and Jumbo Frames for enhanced performance. Its energy-efficient design and wide OS support make it a reliable choice for enterprise networking solutions demanding consistent, high-throughput connectivity.
Based on Intel I350 main control solution for wide system compatibility and stability.
Provides eight independent Gigabit fiber channels for high-density connectivity.
Utilizes PCIe v2.1 x8 bus for efficient data transmission and resource saving.
Supports DPDK and Jumbo Frames for optimized network performance.
Complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standards.
Complete technical details for integration and deployment planning.
| Controller | Intel I350 |
|---|
| Bus Interface | PCI Express v2.1 (2.5GT/s & 5.0GT/s) x8 |
|---|---|
| Connector | 8*1G SFP |
| Cable Medium | Fiber |
| Cable Type | 1000Base-SX, 1000Base-LX, AOC |
| Data Rate per Port | 1000Mbps |
|---|---|
| Power Consumption | 13.0W (max) |
| Protocol Support | IEEE 802.3z 1000BASE-X, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az EEE |
|---|
| Feature Support (Yes) | DPDK, Jumbo Frames |
|---|
| Feature Support (No) | PXE, WOL, iSCSI, FCoE |
|---|
| Windows | XP/7/8/8.1/10, Server 2003R2/2008R2/2012R2/2016R2/2019R2 |
|---|---|
| Linux | CentOS/RHEL 6.x/7.x or later, Ubuntu 16.10 or later, Kernel 3.x/4.x/5.x or later |
| Virtualization | VMware ESXi 4.x/5.x/6.x or later |
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
|---|---|
| Storage Temperature | -40℃ to 85℃ (-40℉ to 185℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
| Authentication | FCC, RoHS, CE |
| PCB Size | 167*72*1.6 mm |
|---|
