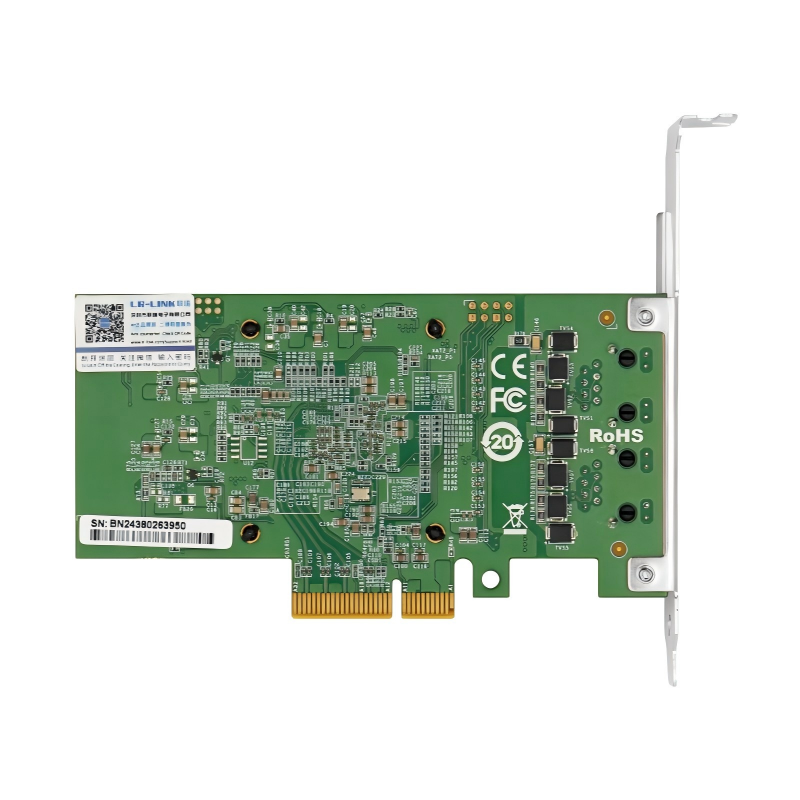

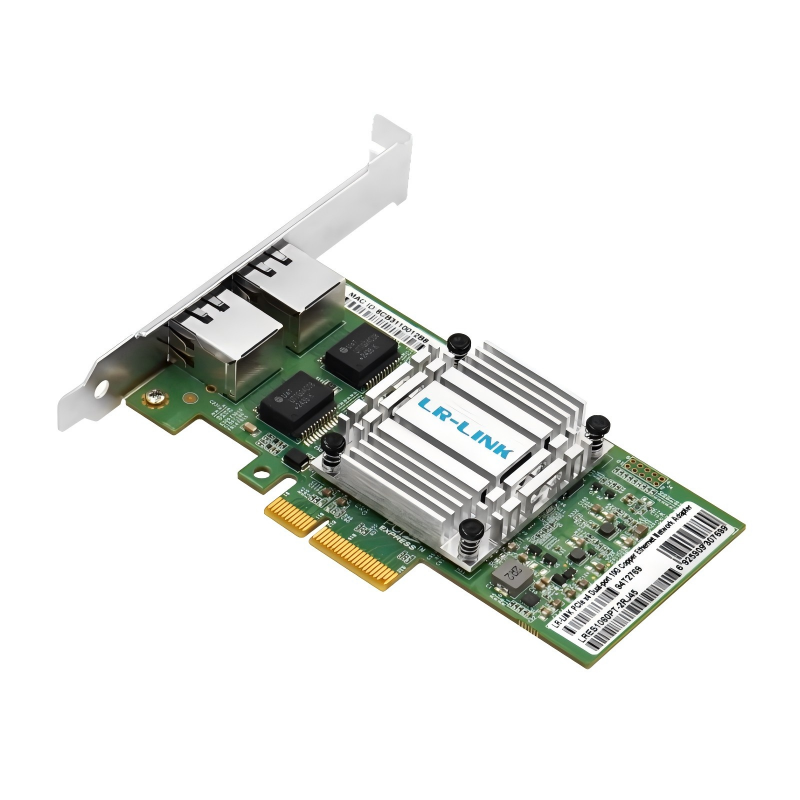

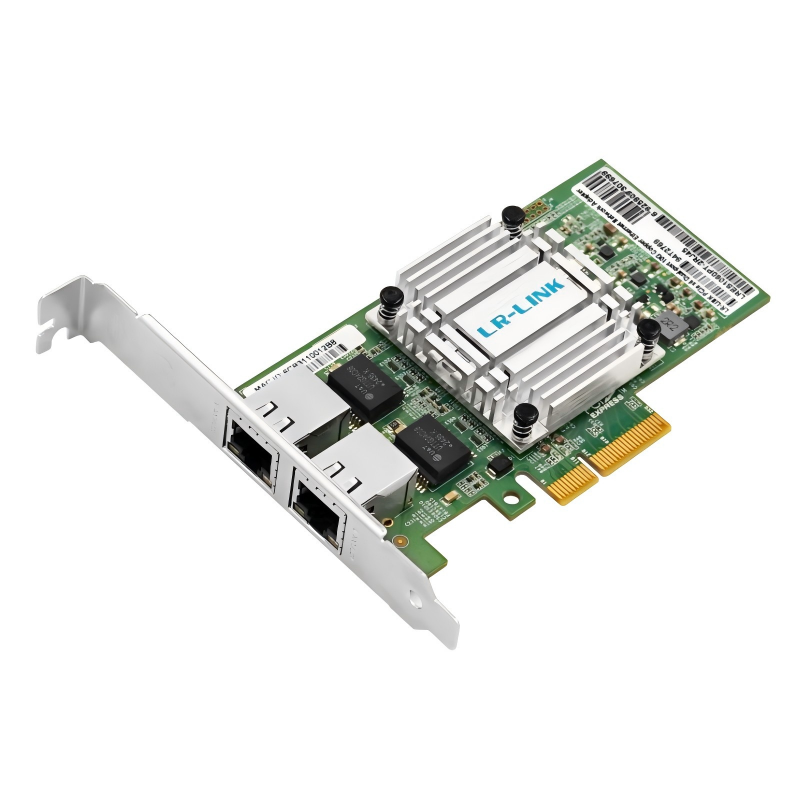

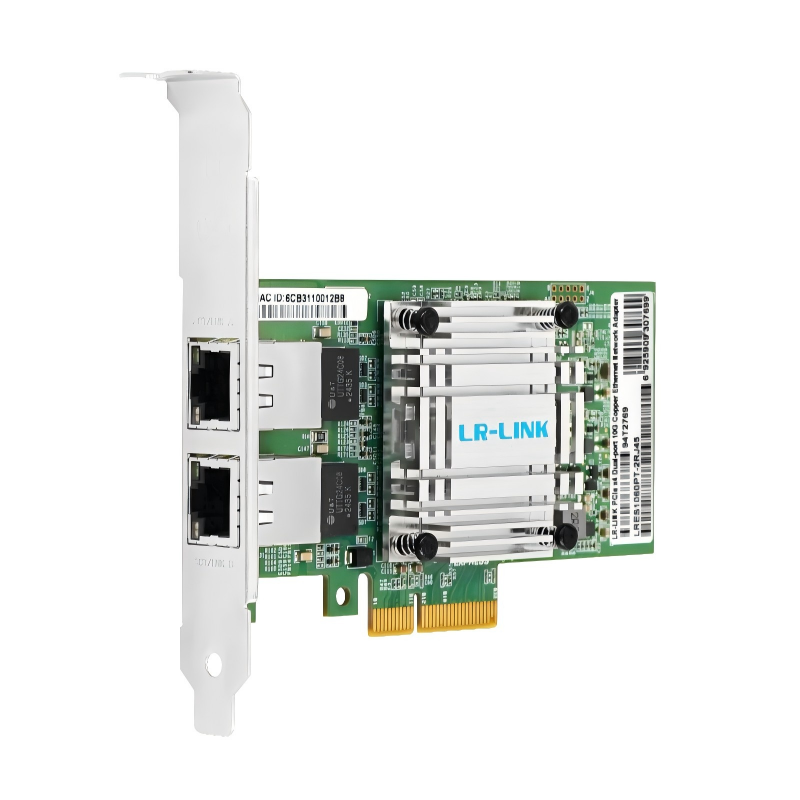

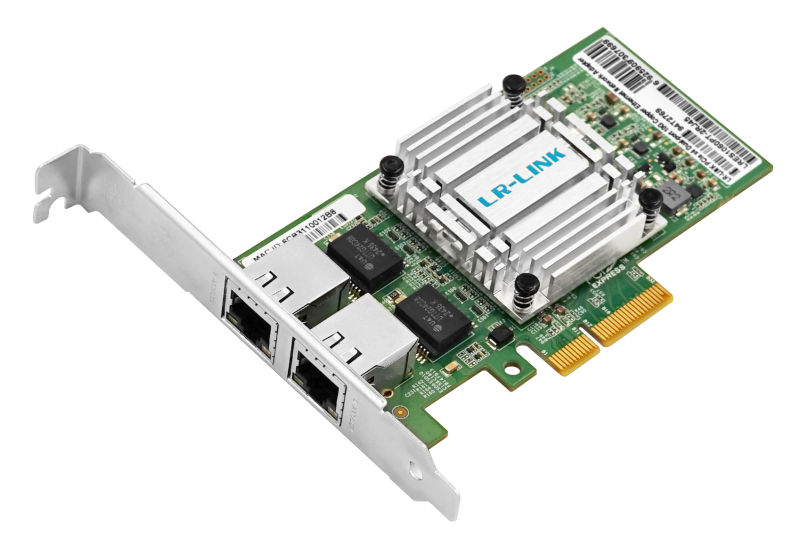

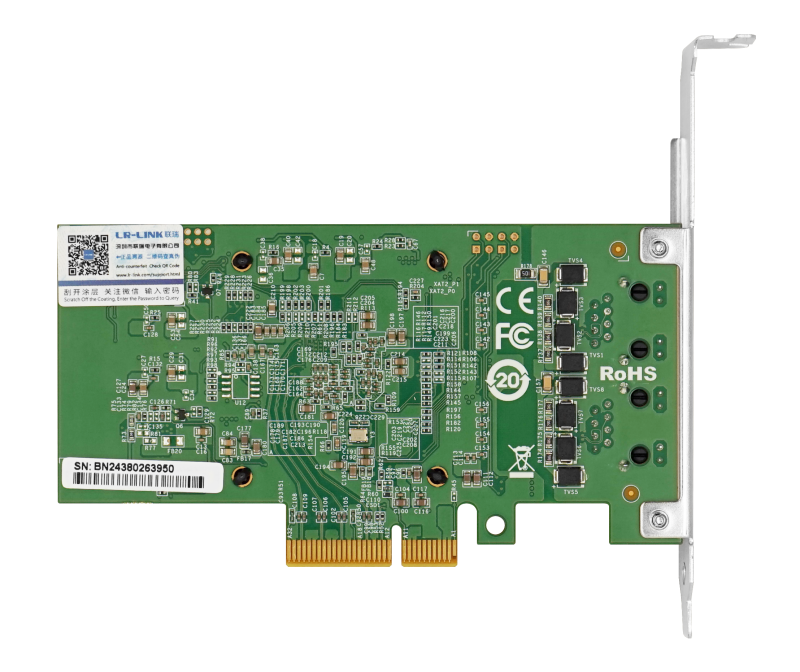

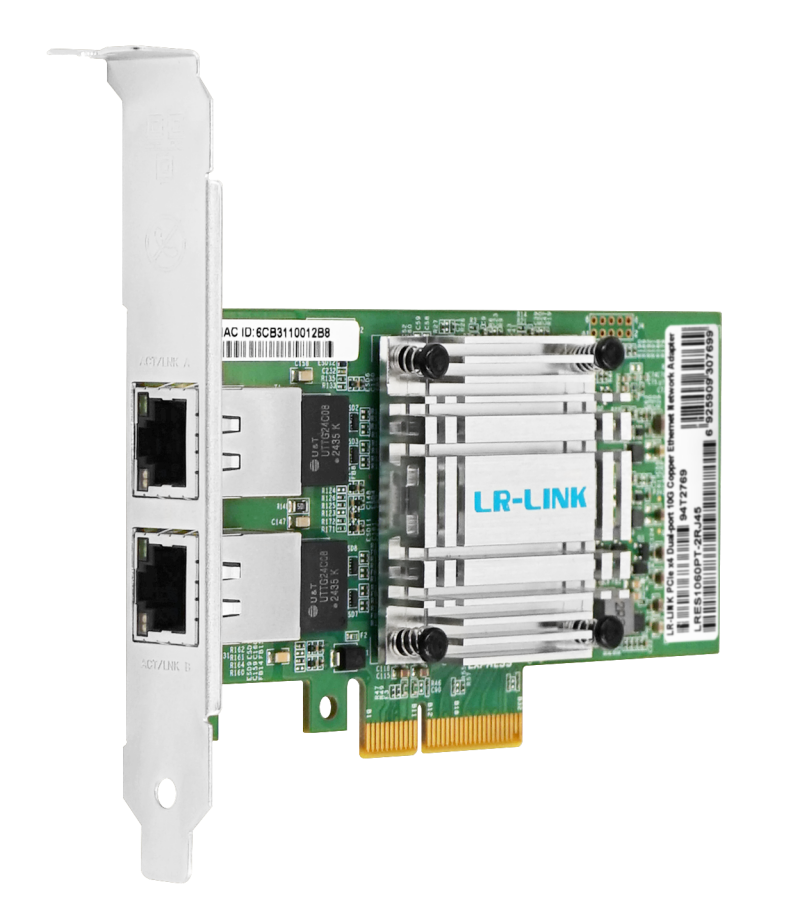

Dual-port 10G copper Ethernet adapter based on Intel E610 with PCIe 4.0 x4 interface.
When legacy copper infrastructure limits bandwidth in edge IoT and embedded systems, upgrading to 10G without replacing cabling is critical. The LRES1060PT-2RJ45 solves this by delivering high-speed connectivity over existing Cat5e/Cat6 cables, ensuring seamless integration into data centers and network equipment.
Built on the Intel E610 controller, this adapter features a PCIe 4.0 x4 interface and dual RJ45 ports supporting 100M/1G/2.5G/5G/10G auto-sensing. This multi-speed capability eliminates the need for separate NICs for different network tiers, reducing hardware complexity while maintaining low power consumption of max 4.08W.
Ideal for deep learning clusters, cloud servers, and industrial automation, it supports SR-IOV and 1588 PTP for precise synchronization. With broad OS support including Windows, Linux, and KylinOS, the LRES1060PT-2RJ45 provides a stable, secure, and cost-effective Ethernet access solution for diverse network environments.
Powered by Intel E610 chip for reliable 10G copper connectivity and advanced feature support.
Supports 100M/1G/2.5G/5G/10G speeds, ensuring compatibility with existing copper infrastructure.
High-bandwidth PCIe 4.0 x4 host interface ensures minimal bottleneck for dual-port 10G traffic.
Supports SR-IOV and PXE/UEFI for efficient virtual machine deployment and network booting.
Integrated IEEE 1588 PTP support for precise clock synchronization in industrial and telecom apps.
Low maximum power consumption of 4.08W reduces operational costs in dense server environments.
Complete technical details for integration and deployment planning.
| Controller | Intel E610 |
|---|---|
| Host Connector | PCIe 4.0 x4 |
| Ports | Dual-port RJ45 |
| Cable Medium | Copper |
| Link Speed | 100M/1G/2.5G/5G/10G |
|---|---|
| Power Consumption | Max 4.08W |
| Power Supply | PCIe Supply |
| Jumbo Frames | 9.7KB |
| IEEE Standards | IEEE 802.3an 10GBASE-T, IEEE 802.3-2012 1000BASE-T/100BASE-TX, IEEE 802.1Q VLAN, IEEE 1588, IEEE P802.1AE/D5.1, IEEE 802.3az, IEEE 802.1BR/D3.3, IEEE 802.1Qbg |
|---|
| Supported Features | PXE/UEFI, WoL, SR-IOV, 1588 PTP |
|---|
| PCB Size | 125*68.9mm |
|---|---|
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35°C |
| Certification | FCC, CE, RoHS |
| Operating Systems | Windows, Windows Server, RHEL/CentOS, Ubuntu, Deepin, NewStart OS, FusionOS, UOS, KylinOS, OpenEuler, OpenKylin, Alce |
|---|
