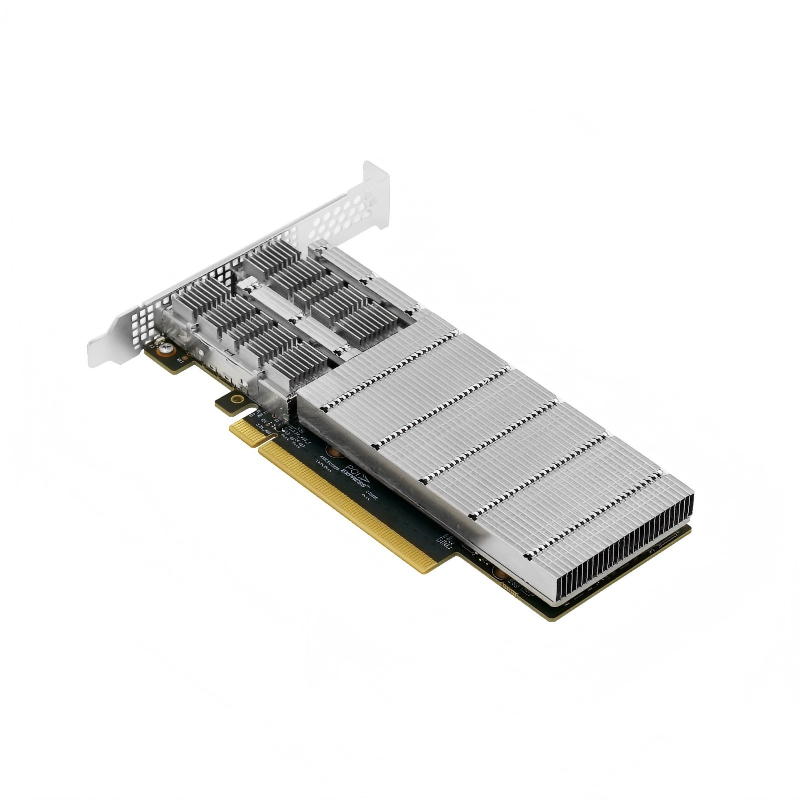

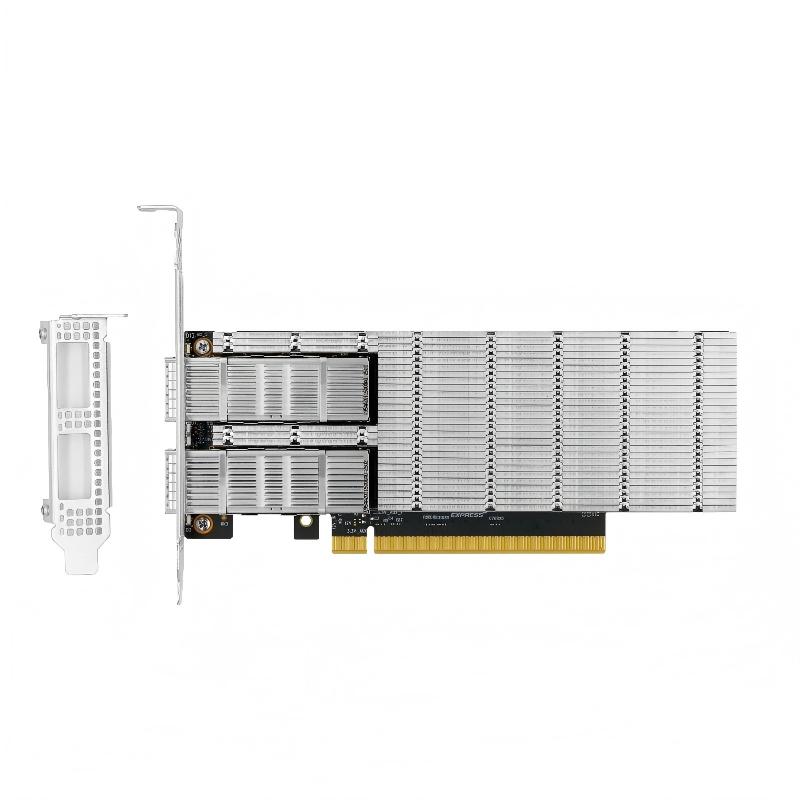

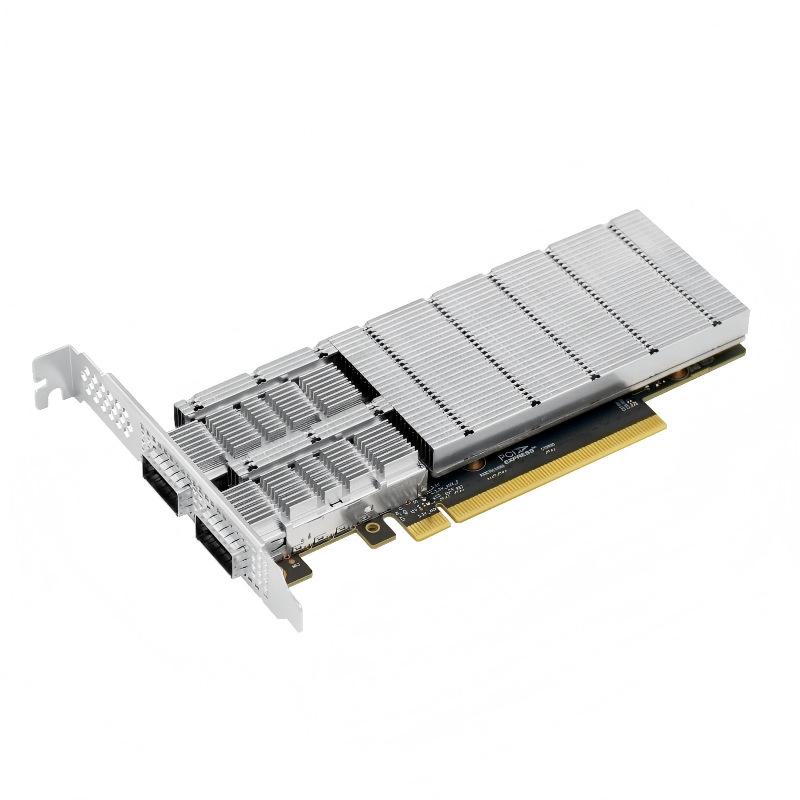

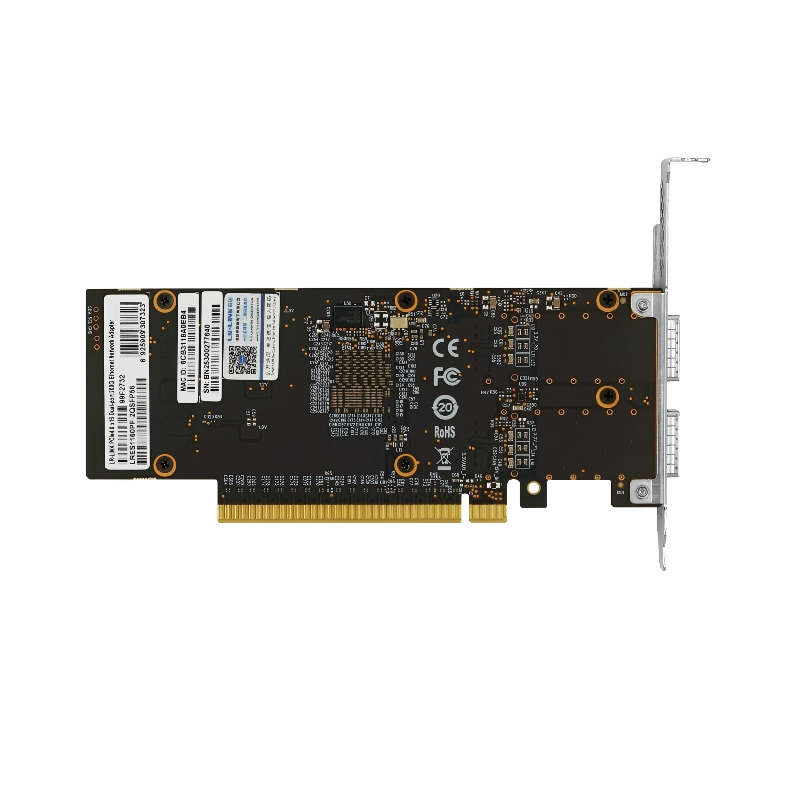

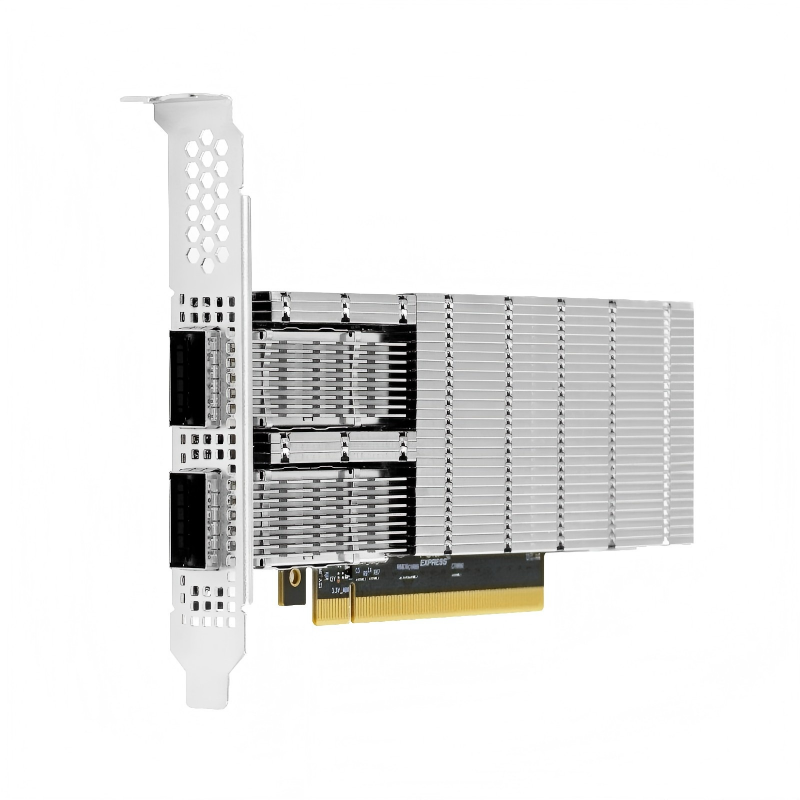

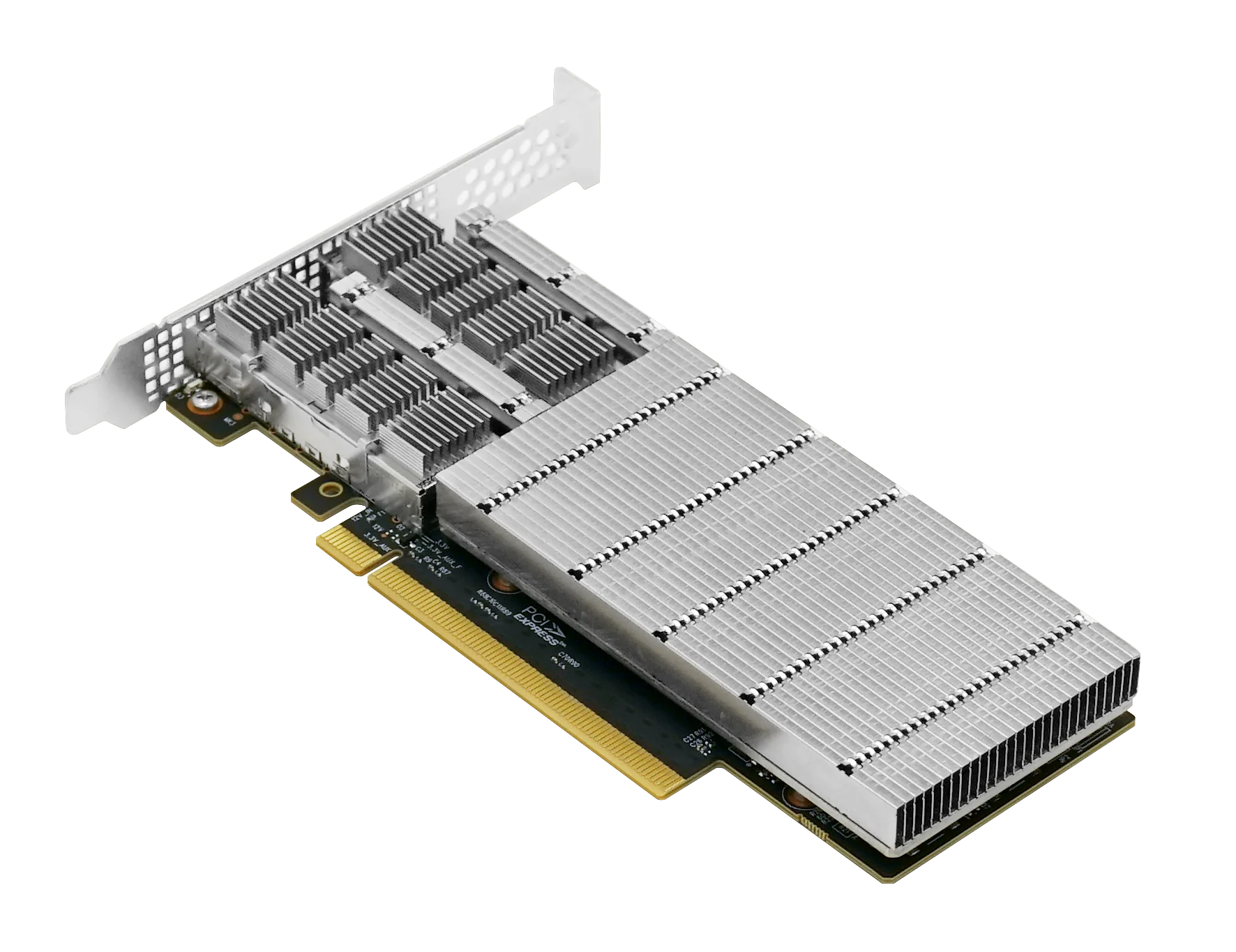

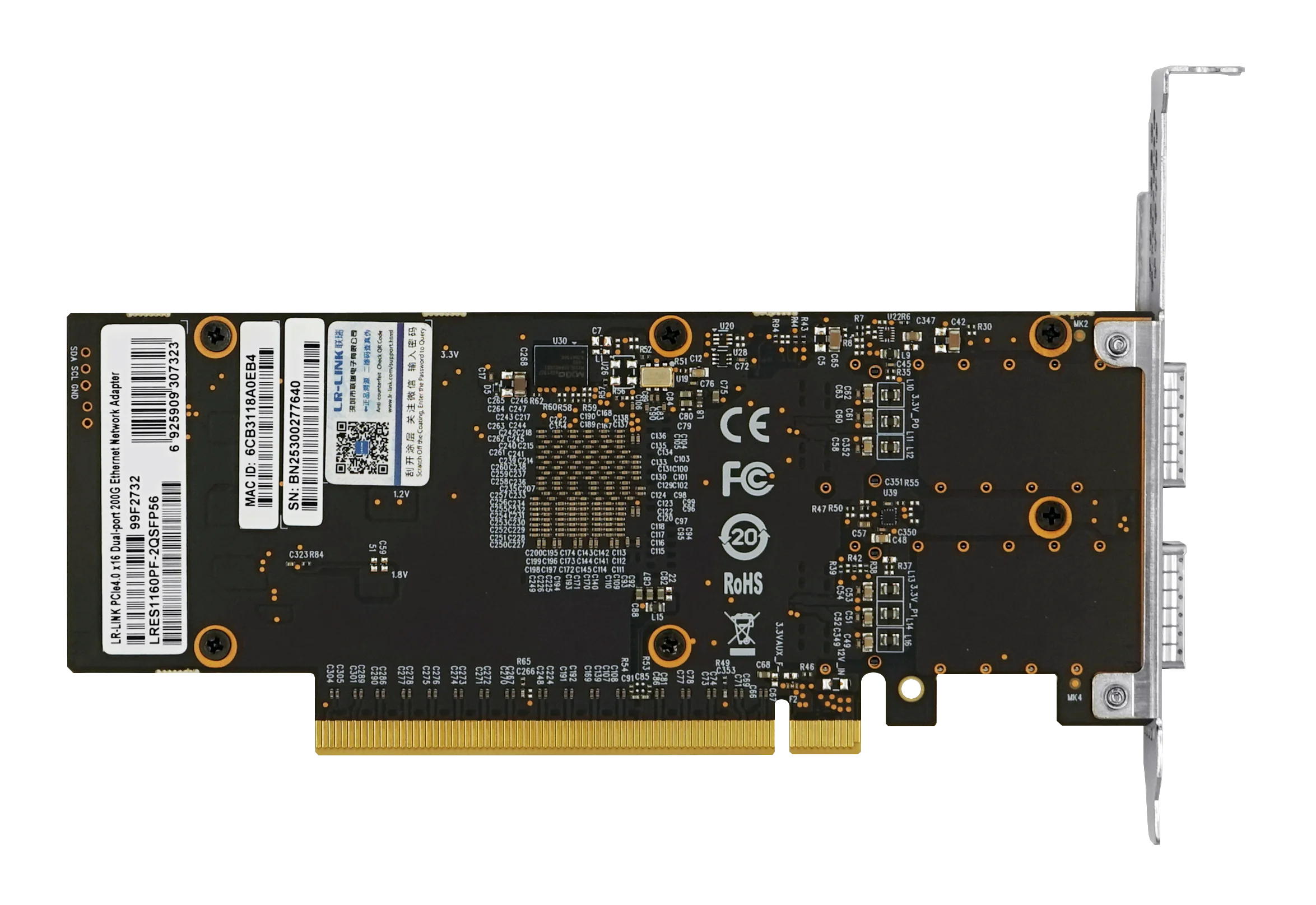

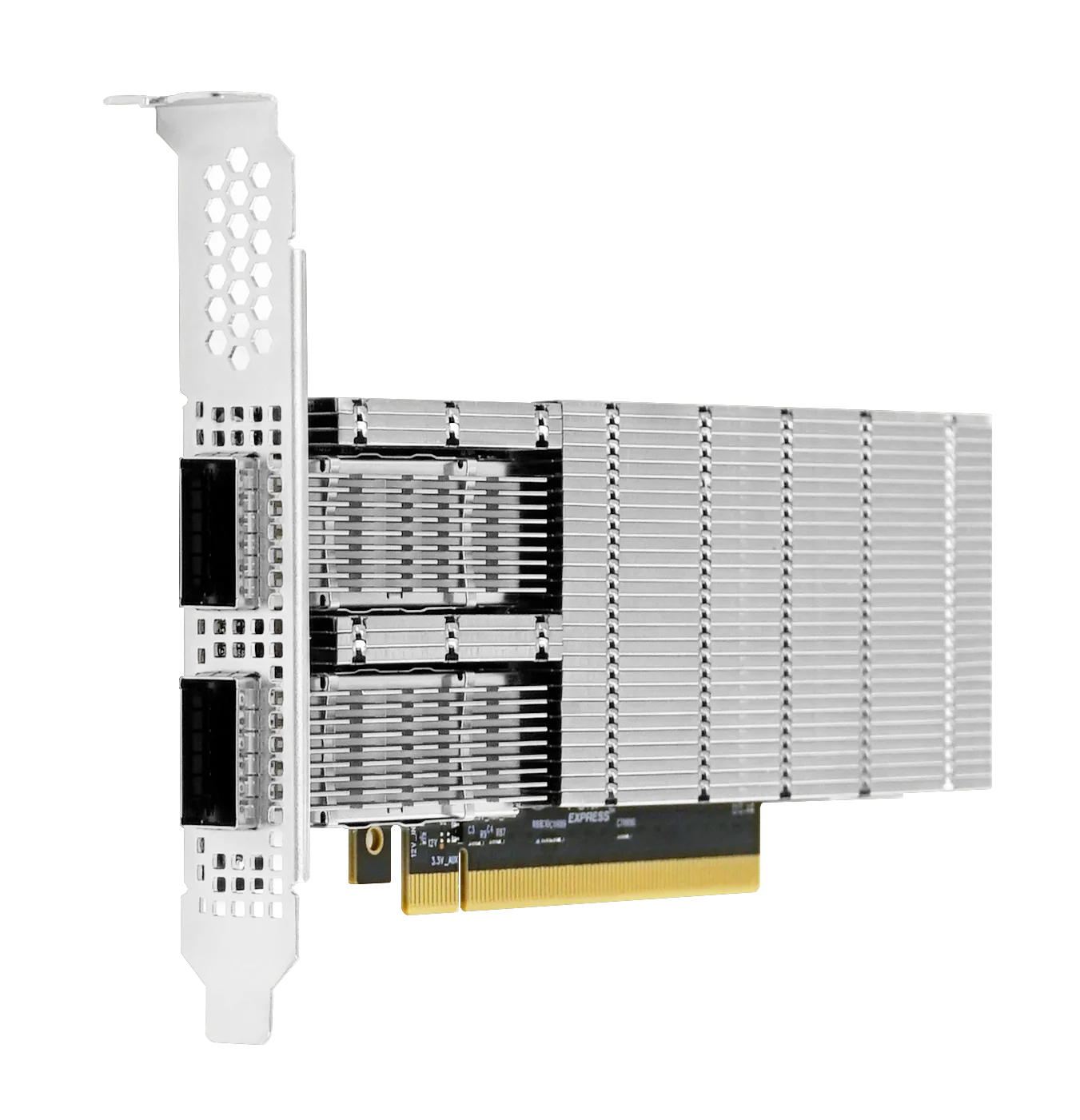

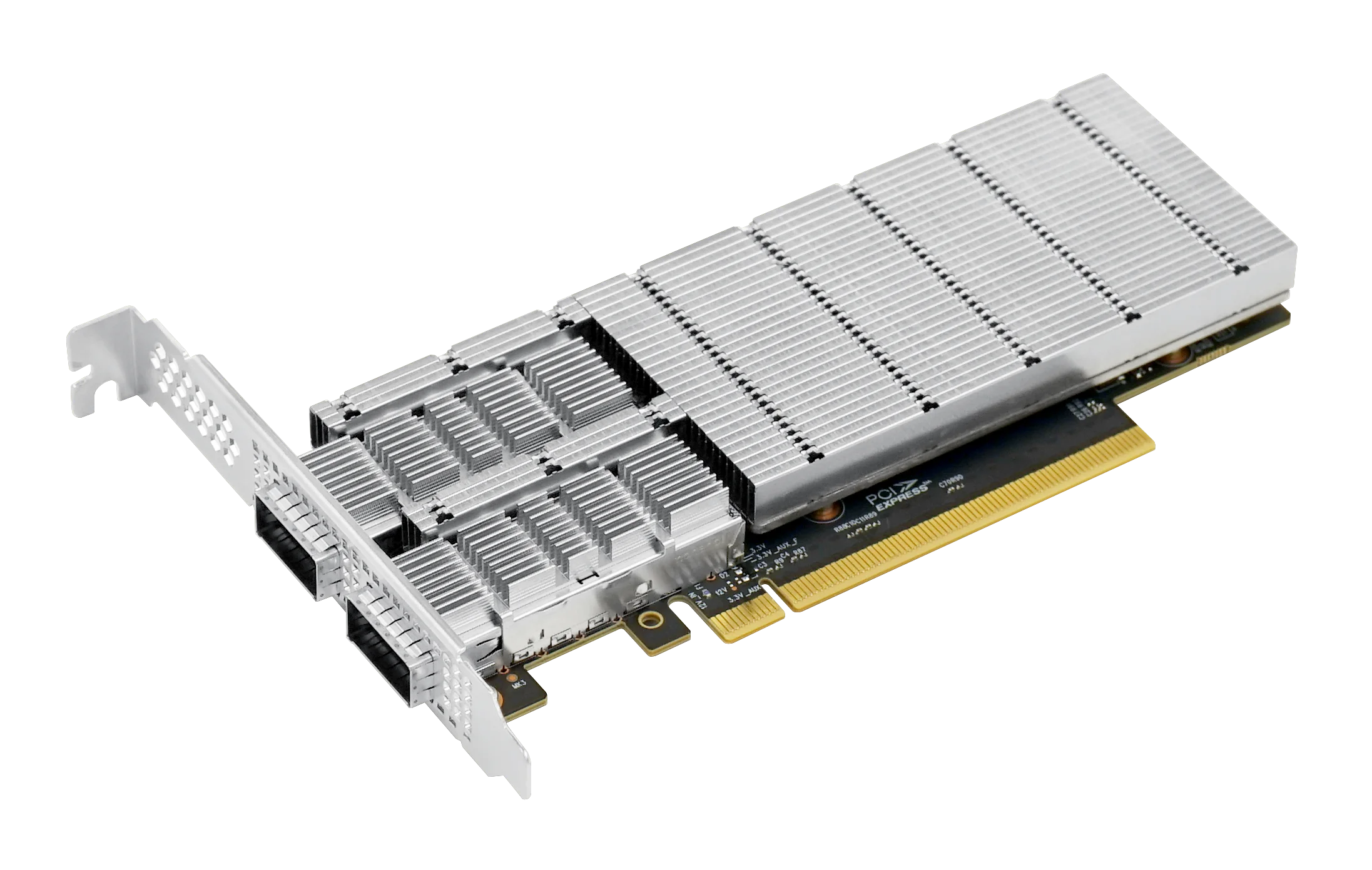

High-performance dual-port 200G network adapter for AI/ML and data centers.
When network congestion causes application timeouts in AI training clusters, every microsecond of latency matters. The LRES1160PF-2QSFP56 addresses this by delivering ultra-low latency connectivity essential for real-time data processing in high-performance computing environments.
With PCIe Gen 4.0 x16 interface and dual QSFP56 ports, the adapter achieves link speeds up to 200Gbps. This massive bandwidth eliminates network bottlenecks, enabling seamless data flow for demanding applications. Support for RDMA (RoCEv2) significantly reduces CPU overhead, improving overall system efficiency and throughput.
Ideal for AI/ML workloads, data centers, and cloud computing platforms, this adapter supports virtualization protocols like VXLAN and NVGRE. Its GPUDirect capability allows direct GPU data interaction, ensuring unparalleled performance in GPU-intensive scenarios. Choose LRES1160PF-2QSFP56 for reliable, high-speed network infrastructure.
Dual QSFP56 ports support 40/100/200Gbps link speeds for maximum bandwidth.
High-bandwidth PCIe 4.0 x16 interface ensures excellent data processing speed.
Supports RoCEv2 and GPUDirect to reduce CPU load and accelerate AI/ML workloads.
Supports VXLAN, NVGRE, and SR-IOV for flexible cloud and virtualized environments.
IEEE 1588 PTP v2 support for synchronized network operations.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Bus Type | PCIe v4.0 (16GT/s) x16 |
|---|---|
| Connectors | 2*QSFP56 |
| Link Speed | 40/100/200Gbps |
| Cable Medium | Optical fiber |
|---|---|
| Bracket Height | Low Profile & Full Height |
| PCB Size | 68.64*167.5*1.6 mm |
| Power Supply | PCIe |
|---|---|
| Min Power | 16.17 W |
| Max Power | 29.52 W |
| Protocol Support | IEEE 802.3cd, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3ba, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ap, IEEE 802.3ad, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1P, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 1588 PTP v2 |
|---|
| Feature Support (Yes) | PXE, UEFI, SR-IOV, RDMA (RoCEv2), GPUDirect, Jumbo Frames (9.9KB), VLAN tags, Link Aggregation, Congestion Notification, ETS, PFC, VXLAN, NVGRE |
|---|---|
| Feature Support (No) |
| Operating Temperature | -10°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35°C |
| Certification | FCC, CE, RoHS |
