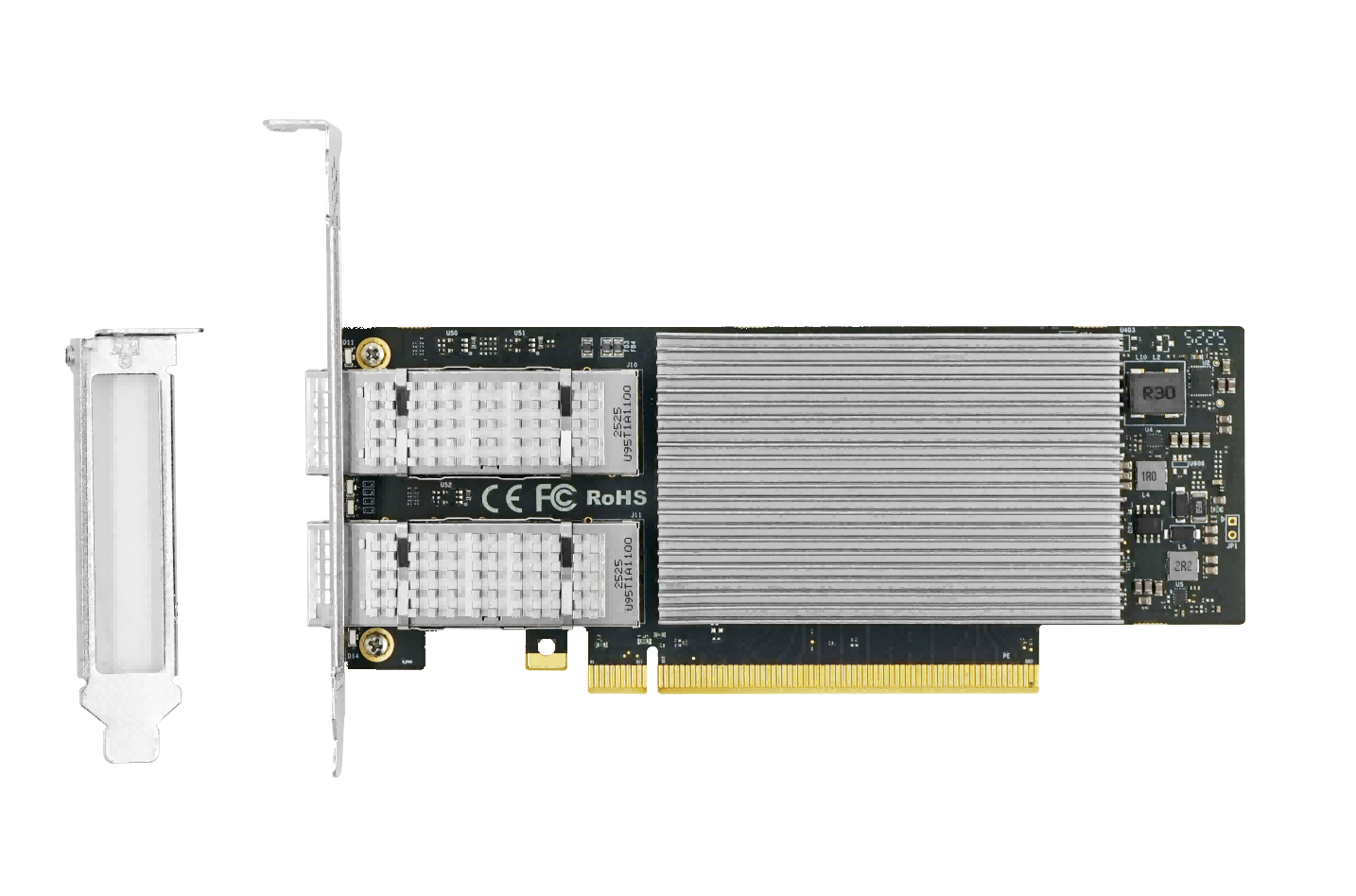

LRES1250PF-2QSFP56 is a PCIe x16 Dual-port100G Ethernet Network Adapter independently developed by Linkreal Co., Ltd. . It is equipped with two QSFP56 connectors, supports high-speed fiber transmission, and the physical board size follows the HHHL (Half-Height Half-Length) PCIe add-in card form factor.
LRES1250PF-2QSFP56r can be configured as a 2x100G adapter with Port0 active as 200G and Port1 disabled. This can be configured at run time through firmware.
The LRES1250PF-2QSFP56 features on-chip acceleration for Geneve, VXLAN, and NVGRE tunneling protocols, reducing CPU utilization by up to 90% compared to software-only implementations. It also supports advanced networking technologies such as RoCE, SDN, and NFV, enabling more efficient network management and providing greater flexibility for deploying modern service provider and cloud-scale solutions.
LRES1250PF-2QSFP56 is designed to deliver feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics.
Product Specifications | ||
Model | LRES1250PF-2QSFP56 | |
Adapter Type | PCIe NIC | |
Form Factor | HHHL | |
Host Connector | PCle4.0 x16 | |
Connectors | QSFP56 | |
Port | Dual | |
Link Speed | 25/50/100/200Gbps | |
Protocol Support | IEEE 802.3x Full Duplex and flow control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3AS IEEE 802.1Q VLAN IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1x IEEE 802.1bd IEEE1588 v1&v2 | |
Functional Support | ||
PXE/UEFI | Yes | |
RoCEv2 | Yes | |
SR-IOV | Yes | |
1588 PTP | Yes | |
Jumbo Frames | 9.4KB | |
Power | ||
DAC | 17.1W（Max） | |
Optical Transceiver | 22.0W (Max) | |
LED Indicators | ||
LED Type | Color/Behavior | Note |
Link | Off | No link |
Amber | Link at lower speed | |
Green | Link at 100Gbps | |
Activity | Off | No Activity |
Green(blink) | Linkup(traffic flowing) | |
Supported Physical Layer Interfaces | ||
200GBASE-CR4、200GBASE-SR4/LR4、100GBASE-CR4 | ||
100GBASE-SR4/LR4、50GBASE-CR、50GBASE-SR/LR | ||
25GBASE-CR、25GBASE-SR/LR | ||
Supported Systems | ||
OS | ·Windows ·Deepin ·RHEL/CentOS ·Rocky ·SUSE ·ZTE New Fulcrum ·FusionFounder ·Zhongke Fangde ·Ubuntu ·Fusion OS ·OpenKylin | ·UOS ·Debian ·Fangde OS ·OpenEuler ·VMware ESXI ·iKuai Router ·ATL Server ·REDOS ·Alce |
Technical Specifications | ||
Operating Temperature | -10°C to 55°C | |
Storage Temperature | -40°C to 70°C | |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 °C | |
Certification | FCC, CE, RoHS | |
Physical Properties | |
Adapter Size | 167.7*68.9mm |
Package Size | 222*147*28mm |
Packing List | |
Internet Network Adapter | *1 |
Product Warranty Card | *1 |
Packaging | Carton + Blister Box |
