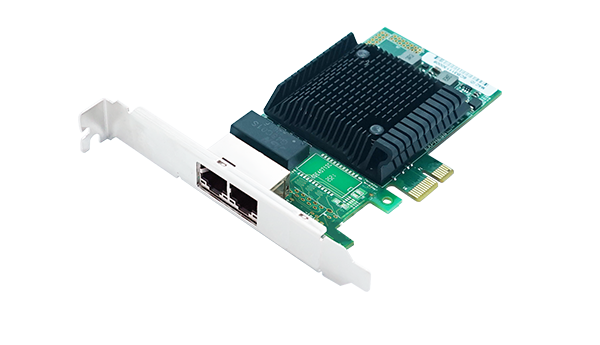

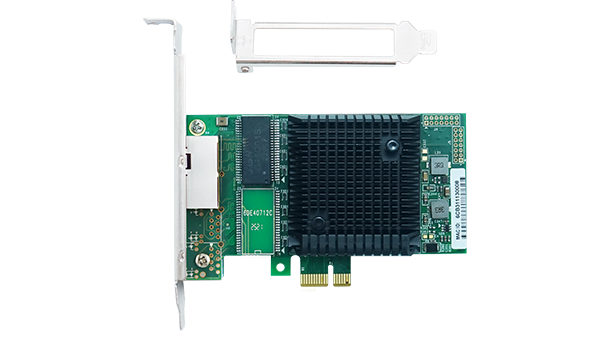

Dual-port gigabit copper NIC based on Net-swift WX1860 for secure server connectivity.
When network infrastructure requires autonomous controllability to ensure information security, standard controllers may not meet compliance needs. The LRES2045PT network adapter addresses this by utilizing the Net-swift WX1860 controller with independent intellectual property rights.
This PCIe v2.1 x1 card delivers dual-port 1000Mbps throughput with 8Gbps theoretical bus bandwidth, enabling secure bidirectional communication. With only 3.5W power consumption, it reduces energy costs in dense server deployments while maintaining full gigabit performance across Cat5E/6 cabling up to 100m.
Ideal for PC servers and embedded devices requiring domestic supply chain independence, this adapter supports DPDK and SR-IOV for virtualized environments. Unlike proprietary alternatives, the LRES2045PT ensures autonomous controllability without compromising industry-standard transmission metrics.
Based on Net-swift WX1860 controller with independent intellectual property rights for information security.
Two 1000Mbps RJ45 ports provide redundant connectivity and aggregated bandwidth for servers.
3.5W total power consumption reduces energy costs in high-density data center deployments.
Supports DPDK, SR-IOV, and Jumbo Frames for optimized virtualized network performance.
Compatible with Windows, Linux, and iKuai operating systems for flexible deployment.
Complete technical details for integration and deployment planning.
| Main Controller | Net-swift WX1860 |
|---|
| Bus Type | PCIe v2.1 x1, compatible with x1, x4, x8, x16 |
|---|---|
| Data Rate Per Port | 100/1000Mbps |
| Connector | 2*1G RJ45 Connector |
|---|---|
| Transmission Medium | Copper |
| Cable Support (1000Base-T) | Cat 5E & Cat6 or higher, up to 100m |
| Cable Support (100Base-T) | Cat 5 & Cat5E or higher, up to 100m |
| Cable Support (10Base-T) | Cat 3,4,5 & Cat5E or higher, up to 100m |
| Power Consumption | 3.5W |
|---|---|
| Power Supply | PCIe |
| Protocol Support | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1AS, IEEE 802.1Qau, IEEE 802.1p, IEEE 802.1Qbg, IEEE 802.1Qbb |
|---|
| Feature Support (Yes) | Jumbo Frames, DPDK, PXE, PCI-SIG/SR-IOV, IPsec |
|---|
| Feature Support (No) | iSCSI, WoL, FCoE |
|---|
| Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
|---|---|
| Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
| Certification | FCC, CE, RoHS |
| Size | 110.9*120.8*21 mm ±0.5mm |
|---|---|
| Baffle Height | Half & Full-height bracket |
| LED Indication | 1000M Green+Green, 10M/100M Orange |
| Windows | Windows 7/8/8.1/10/11, Windows Server 2008R2/2012R2/2016R2/2019R2 |
|---|---|
| Linux | SLES11/12, CentOS/RHEL 6.6~7.4, Ubuntu 14.04/16.10 |
| Other | iKuai 3.6.4 |
