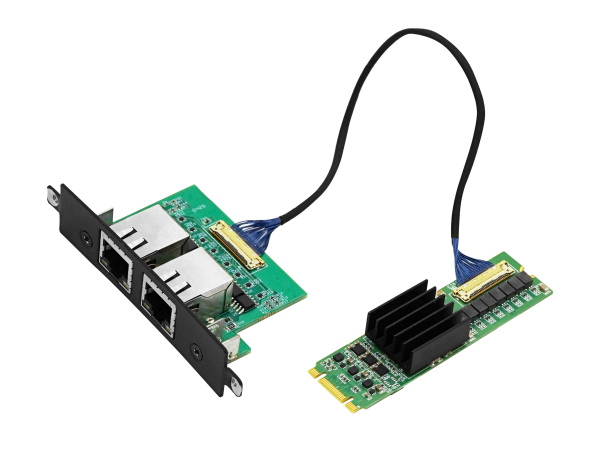

Industrial-grade M.2 dual-port 2.5G RJ45 NIC with Intel E610-IAT2, PCIe Gen4 x2, and -40°C to 85°C operating range.
Deploying reliable connectivity in harsh industrial automation settings often fails due to standard components' inability to withstand extreme temperatures or electrical interference. This M.2 network card solves these deployment challenges by offering a ruggedized solution designed specifically for demanding edge computing scenarios.
Built on the Intel E610-IAT2 chipset, the LRES2060PTI-2RJ45 delivers dual 2.5Gbps throughput via RJ45 interfaces over a PCIe Gen4.0 x2 bus. This configuration ensures high-speed data transfer while maintaining low power consumption, enabling seamless integration into space-constrained industrial PCs without thermal throttling.
With an operating temperature range of -40°C to 85°C and compliance with EN61000-4-2 ESD standards (±8kV), this adapter guarantees stability in volatile environments. It serves as a critical expansion tool for industrial gateways and IoT nodes, providing enterprise-grade reliability where traditional adapters fail.
Operates reliably in extreme temperatures from -40°C to 85°C, ensuring stability in harsh industrial environments.
Dual-port 2.5G RJ45 interface provides double the bandwidth of standard Gigabit connections for faster data transfer.
Supports IEEE 1588 PTP and timestamping for synchronized operations critical in industrial automation and control systems.
Complies with EN61000-4-2 standard with ±8kV contact discharge protection to prevent damage from electrostatic events.
M.2 B+M key form factor allows for easy integration into space-constrained industrial PCs and edge devices.
Complete technical details for integration and deployment planning.
| Controller | Intel E610-IAT2 |
|---|---|
| Form Factor | M.2 B+M key 2280 |
| Host Connector | PCIe Gen4.0 x2 |
| Adapter Type | PCIe NIC |
| Connectors | Dual RJ45 |
|---|---|
| Link Speed | 2.5G/1G/100Mbps |
| Supported Physical Layer Interfaces | 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-Te |
| Protocol Support | IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3 |
|---|
| Feature Support (Yes) | Timestamp, IEEE 1588 PTP, Jumbo Frames (9.7KB) |
|---|
| Feature Support (No) | PXE, UEFI, WoL |
|---|
| Power Consumption | 5.0W (Max) |
|---|---|
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -55°C to 90°C |
| ESD Protection | ±8kV (Contact discharge, EN61000-4-2) |
| Surge Immunity | 2kV (EN61000-4-5) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35°C |
| PCB Size | 42.6*56.1(RJ45 Side), 22*80(M.2 Side) |
|---|---|
| Package Size | 222*147*28mm |
| Bracket | Full bracket (installed) + Low Profile |
| Certification | FCC, CE, RoHS |
|---|---|
| Supported Systems | Windows, Windows Server, FusionOS, Rocky, Deepin, NewStartOS, KylinOS, UOS, OpenKylinOS, FangdeOS, RHEL/CentOS, ATLServer, Ubuntu, OpenEuler |
