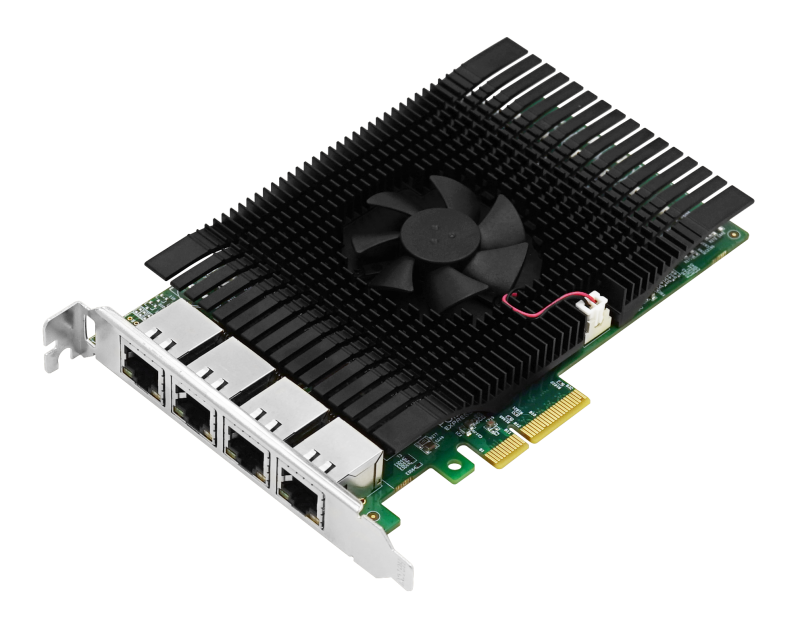

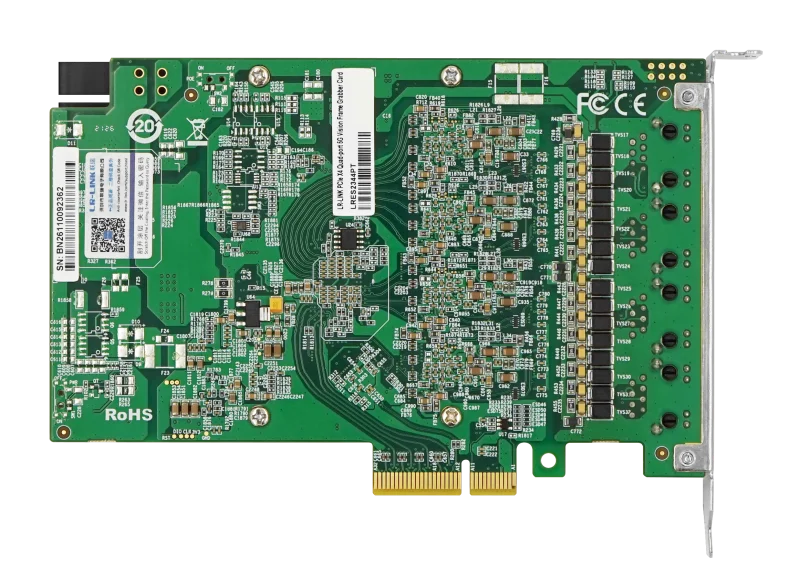

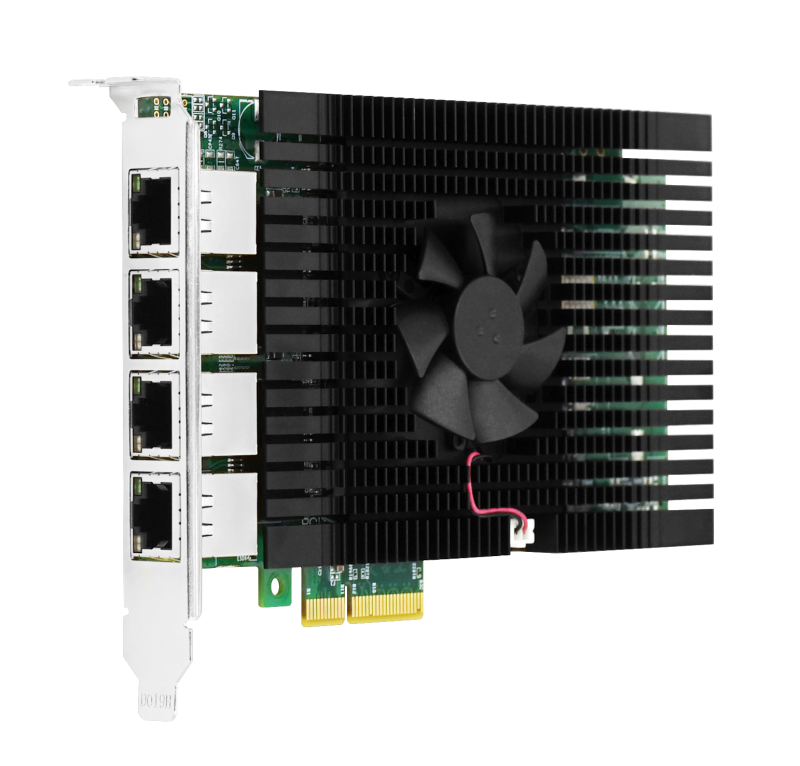

Quad-port 5G Ethernet network adapter for industrial vision inspection equipment, based on Marvell AQC114.
In industrial machine vision systems, transmitting high-resolution images from multiple cameras without frame drops or latency is critical. The LRES2344PT quad-port 5G frame grabber card addresses this challenge by providing four RJ45 ports that each operate at up to 5Gbps, enabling simultaneous connection to four 5GigE cameras and eliminating data bottlenecks.
With a Marvell AQC114 controller and PCIe 3.0 x4 host interface, the adapter ensures efficient data transfer—aggregating up to 20Gbps of throughput—while 16K jumbo frames reduce CPU overhead. The card draws just 17.3W maximum and maintains performance across an operating range of -10°C to 60°C, suiting harsh industrial environments.
Ideal for industrial field visual inspection equipment, visual clients, and fast mobile Ethernet data transmission, the LRES2344PT meets the stability demands of conventional industrial computers. Its support for multiple major operating systems, including Windows and a wide array of Linux distributions, makes it a flexible choice for OEM and end-user deployments.
Four RJ45 ports support up to 5Gbps each, ideal for connecting multiple industrial cameras.
Reliable Marvell AQC114 chipset ensures stable, high-performance data transfer.
Supports Jumbo Frames up to 16Kbytes, reducing CPU overhead and improving throughput.
Operates from -10°C to 60°C, suitable for harsh industrial environments.
Supports Windows, Linux, and various Chinese operating systems like Kylin, UOS, etc.
Compatible with PCIe x16 slots for easy integration into existing systems.
Complete technical details for integration and deployment planning.
| Model | LRES2344PT |
|---|---|
| Controller | Marvell AQC114 |
| Adapter Type | PCIe NIC |
| Form Factor | FHHL |
| Host Connector | PCIe 3.0 x4 |
|---|---|
| Connectors | RJ45 |
| Port | Quad |
| Link Speed | 5G/2.5G/1G/100M/10Mbps |
| IEEE Standards | IEEE 802.3bz, 802.3ab, 802.3u, 802.3, 802.3az, 802.1Q, 802.3x |
|---|
| Jumbo Frames | 16Kbytes |
|---|
| Power Consumption | 17.3W (Max) |
|---|
| Product Size | 104.4 x 156.7 mm |
|---|---|
| Package Size | 250 x 170 x 32 mm |
| Operating Temperature | -10°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum 90% non-condensing relative humidity at 35°C |
| Supported Systems | Windows, Windows Server, Deepin UOS, YimingOS, KylinOS, FusionOS, OpenKylinOS, FangdeServerOS, RHEL/CentOS, Ubuntu, OpenEuler |
|---|
| Link/Activity | Amber: Link at lower speed; Green: Link at 5Gbps; Green: No Activity; Green (blink): Link up (traffic flowing) |
|---|
| Compliance | FCC, CE, RoHS |
|---|
