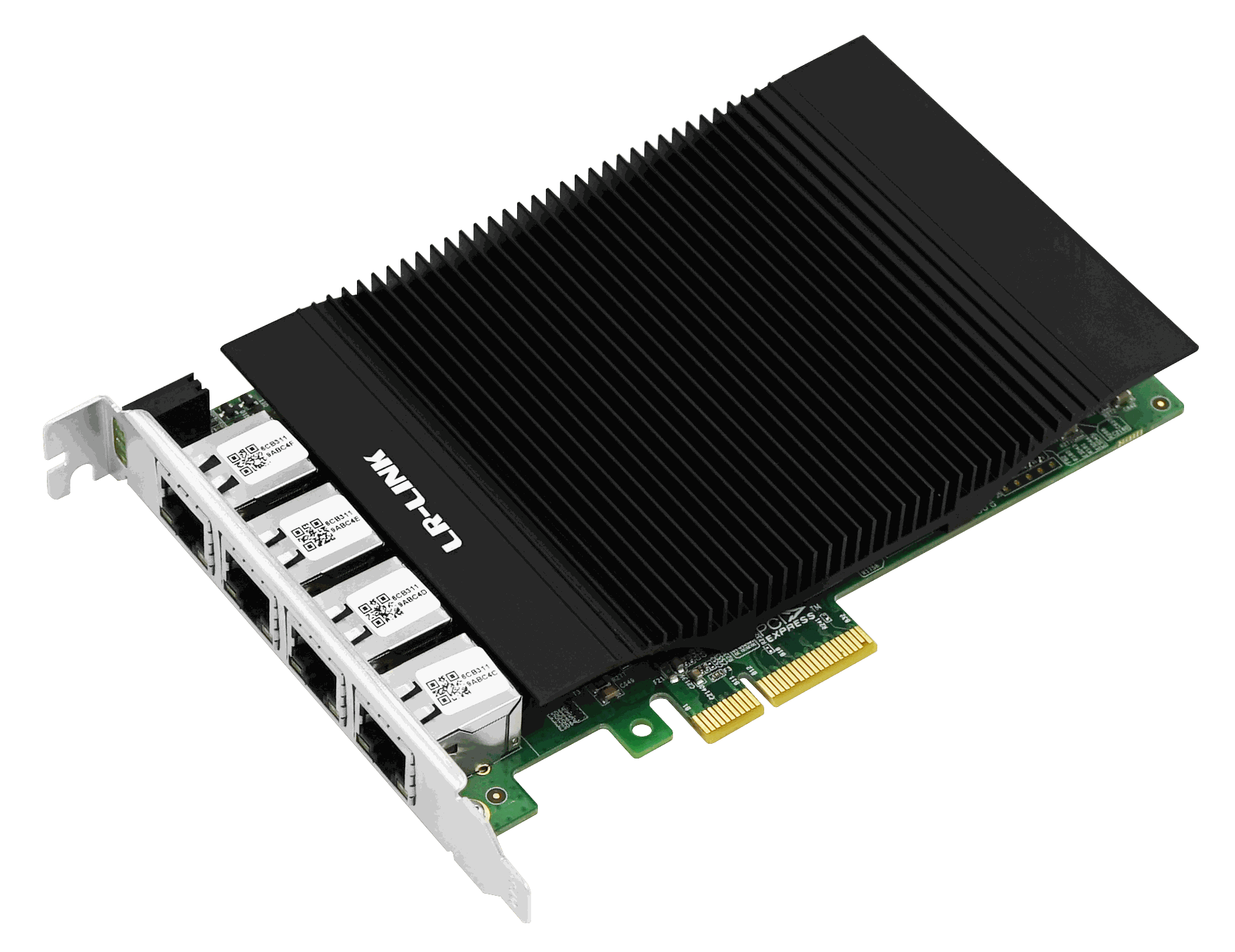

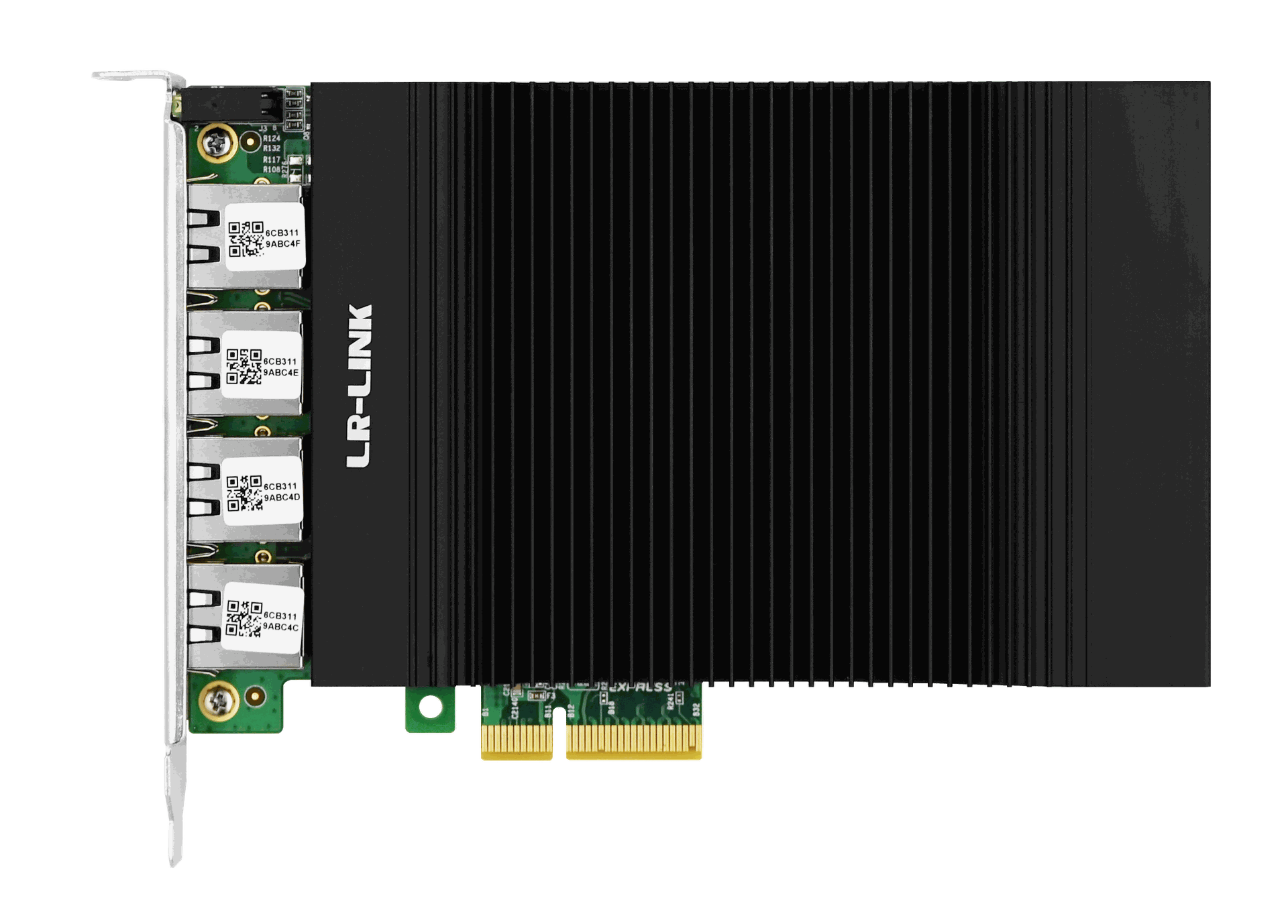

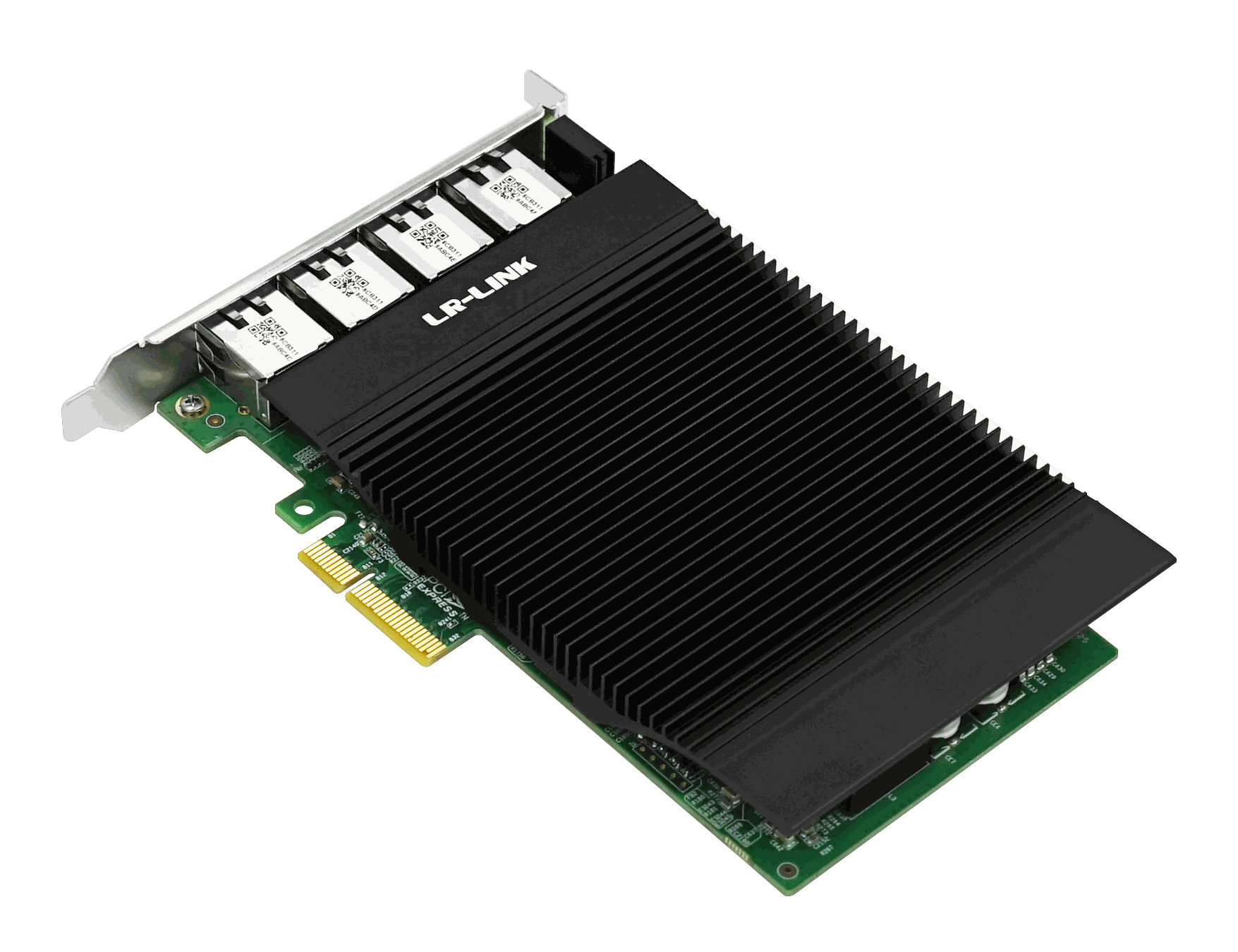

High-performance quad-port 5G PoE vision frame grabber card with 30W per port power delivery.
When deploying high-bandwidth machine vision systems in industrial environments, balancing data throughput with power delivery often complicates cabling infrastructure. The LRES2680PT-POE simplifies this by integrating 5G networking and PoE+ into a single PCIe 3.0 x4 solution.
This card features four independent RJ45 ports supporting 100Mbps to 5Gbps speeds, delivering up to 30W of PoE+ power per port with a total budget of 90W. This eliminates the need for separate power supplies at each camera, reducing installation complexity while ensuring reliable data acquisition.
Optimized for intelligent surveillance and traffic monitoring, the card supports multi-queue parallel processing and programmable PoE management via software utilities. By combining high-speed image acquisition with flexible power control, it provides a robust foundation for demanding industrial automation tasks.

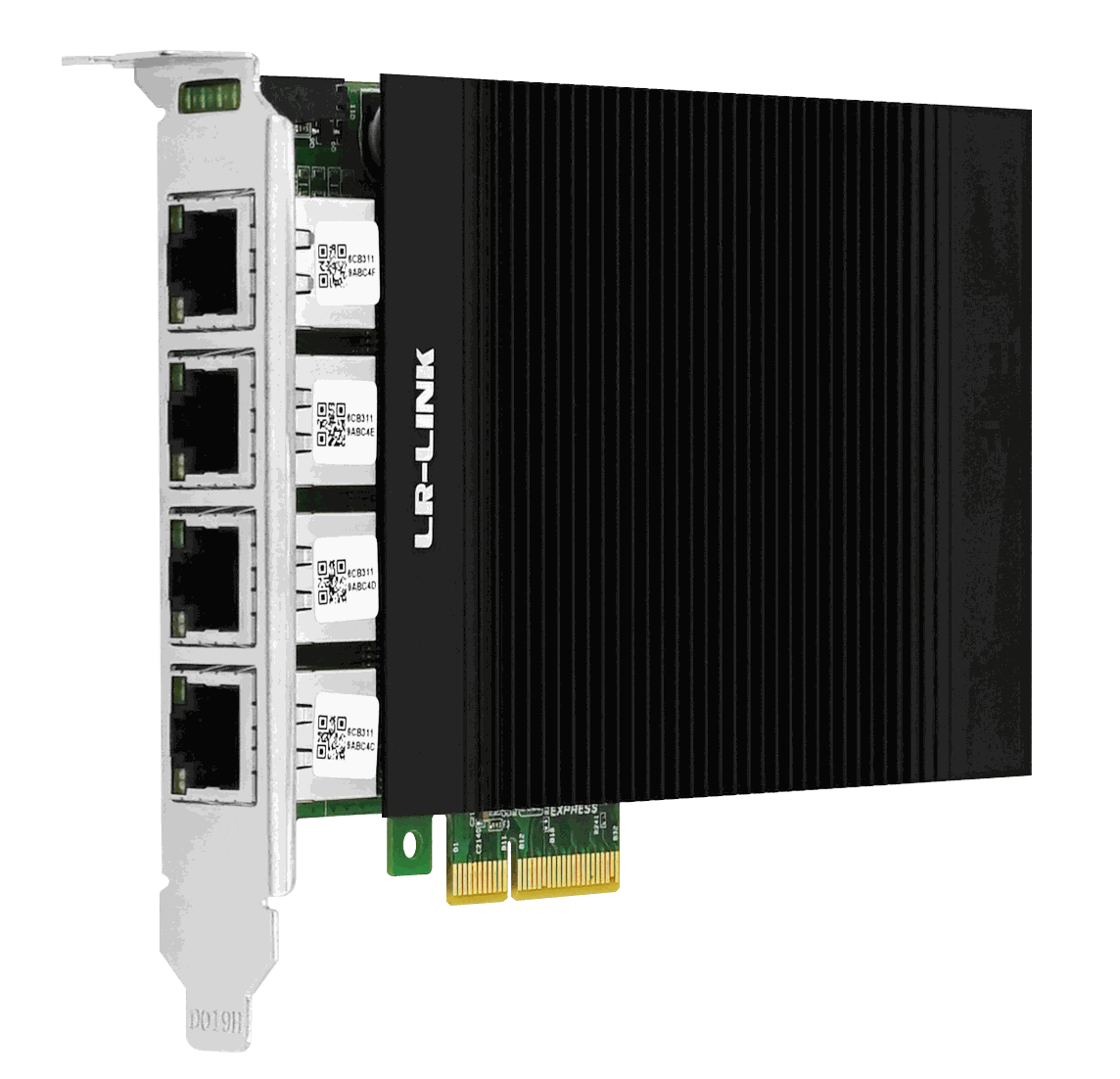

Four independent RJ45 interfaces supporting up to 5Gbps data rate for high-speed image acquisition.
Delivers up to 30W per port with recoverable eFuse protection, simplifying cabling for vision cameras.
Programmable software tool allows real-time monitoring and hardware/software controlled power on/off.
Features ESD (8KV) and Surge (4KV) protection, suitable for harsh industrial automation environments.
Complete technical details for integration and deployment planning.
| Controller | Realtek RTL8126 |
|---|---|
| Host Connector | PCIe 3.0 x4 |
| Number of Ports | 4 |
|---|---|
| Port Type | RJ45 |
| Data Rate | 100Mbps/1Gbps/2.5Gbps/5Gbps |
| Cable Requirements | CAT6, CAT6A or CAT7, up to 100M |
| DC Input | 12V direct from PCIe slot / 12V ATX power jack input |
|---|---|
| PoE Output | Up to 30W per port / Up to 90W total |
| Connection | 4pin ATX Power Jack |
| IEEE Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at |
|---|
| Supported Features | Jumbo Frame, Multi-queue parallel processing, Traffic shaping, Programmable PoE Management Tool, Hardware PoE switch control, Software PoE monitoring |
|---|
| Unsupported Features | PXE |
|---|
| ESD Protection | 8KV |
|---|---|
| Surge Protection | 4KV |
| PoE Protection | Recoverable eFuse |
| Operating Temperature | 0°C to 50°C |
|---|---|
| Storage Temperature | -40°C to 70°C |

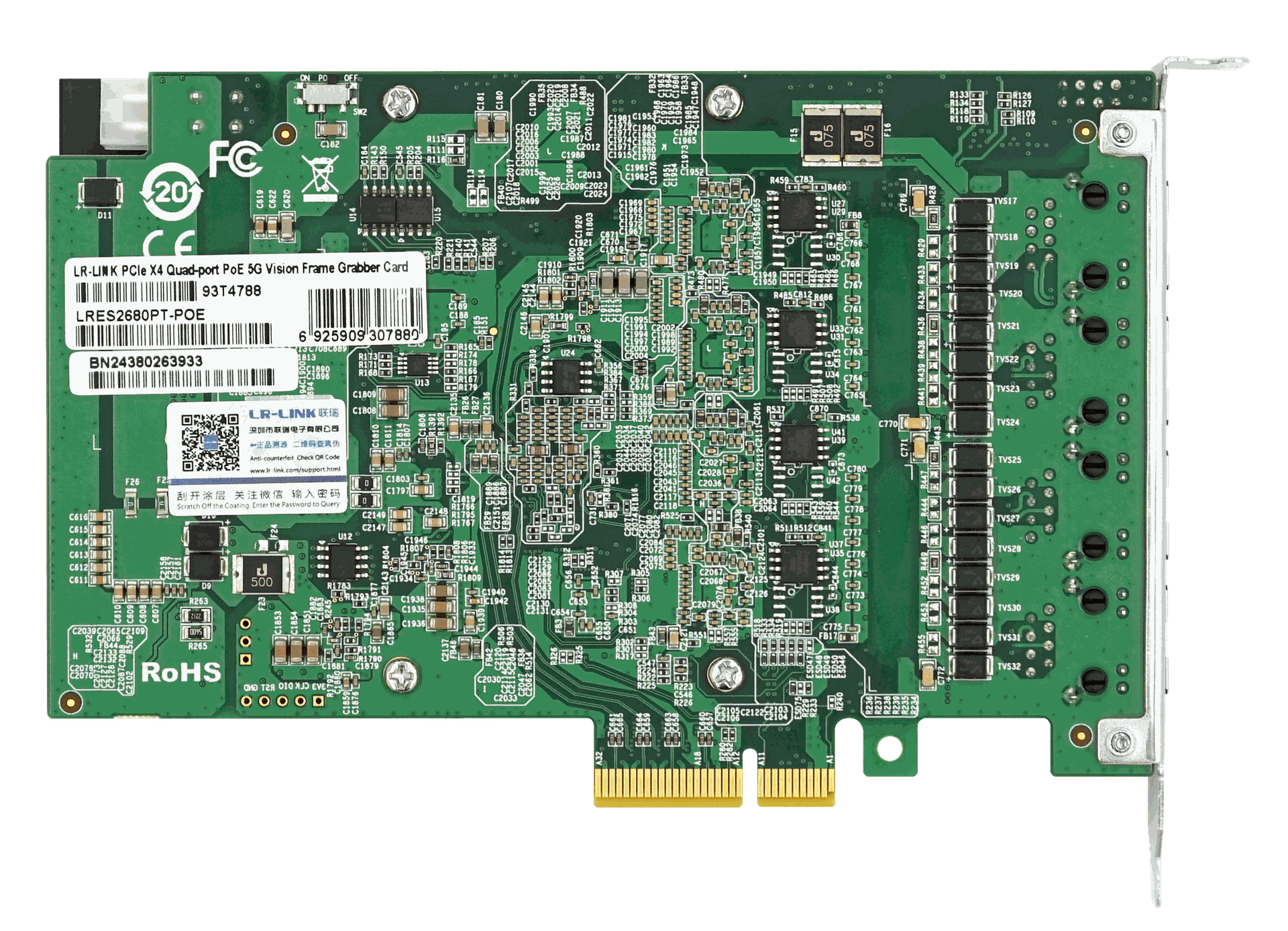

| PCB Size | 156.7*104.4 mm |
| Certification | FCC, CE, RoHS |
