Quad-port Gigabit Ethernet PCIe adapter based on Intel I210 for industrial and data center use.
Industrial manufacturing and machining environments demand robust connectivity that withstands harsh conditions while maintaining high data integrity. Standard network cards often fail to provide the necessary reliability or port density for complex machine bus architectures, leading to deployment bottlenecks.

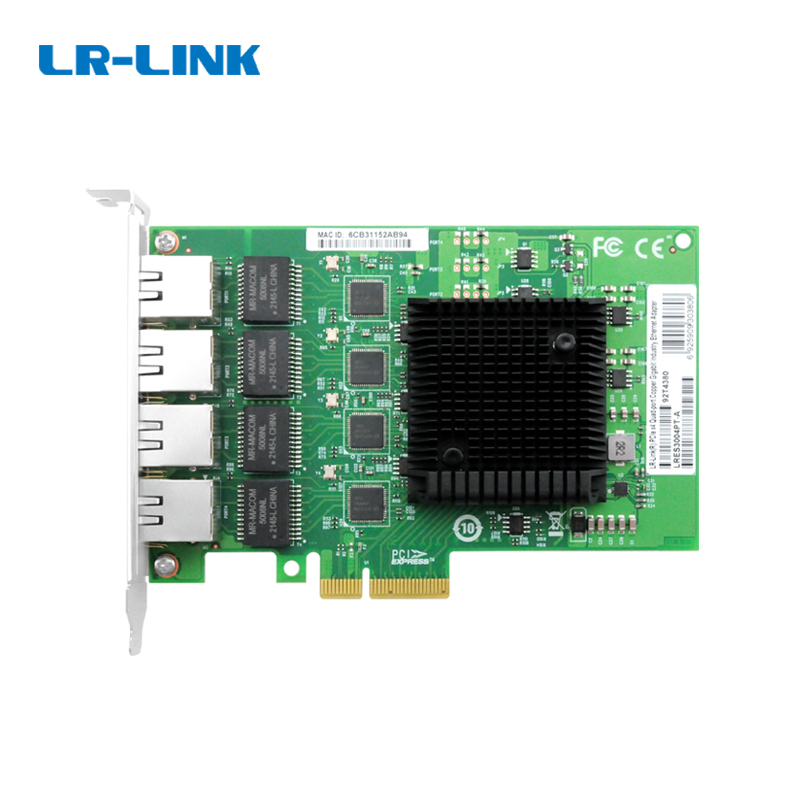

The LRES3004PT-A delivers four independent 1G RJ45 ports over a PCIe v2.1 x4 interface, enabling simultaneous full-duplex communication across all channels. With 6.0W power consumption and support for link aggregation, this adapter maximizes bandwidth efficiency while conserving PCIe channel resources for other critical expansion cards.
Ideal for industrial automation and data transmission tasks, this Intel I210-based adapter ensures compatibility with legacy and modern systems via adaptive 10/100/1000Mbps link rates. Its miniaturized design fits full-height baffle configurations, offering a cost-effective solution for scaling network infrastructure without compromising performance or reliability.
Features 4 independent 1G RJ45 ports allowing simultaneous full-duplex operation for high-performance network communication.
Based on Intel I210 chip, ensuring reliable data transmission with error correction memory protection and DMA merger.
Supports PXE, DPDK, Jumbo Frames, SR-IOV, and VMDq for enhanced virtualization and data processing capabilities.
Implements IEEE 802.3az Energy Efficient Ethernet (EEE) to reduce power consumption during low link utilization.
Designed for harsh environments with operating temperatures from 0°C to 55°C, ideal for industrial manufacturing.
Complete technical details for integration and deployment planning.
| Controller | Intel I210 |
|---|
| Bus Type | PCIe v2.1 x4 , compatible with x8 , x16 |
|---|
| Connector | 4*1G RJ45 |
|---|---|
| Data Rate | 10/100/1000Mbps |
| Cable medium | Copper |
| Power Consumption | 6.0W |
|---|
| Protocol Support | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 1588, IEEE 802.3az |
|---|
| Feature Support (Yes) | PXE, DPDK, Jumbo frame, PCI-SIG SR-IOV, VMDq |
|---|---|
| Feature Support (No) | FCoE, WoL |
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Baffle Configuration | Full height |
|---|---|
| PCB Size(mm) | 147.2*187.3*1.6 |
| Windows | Windows 7/8/8.1/10/11, Windows Server 2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 |
|---|---|
| Linux | Stable Kernel version 2.6.x/3.x/4.x or later; CentOS/RHEL 6.5 / 7.x or later; Ubuntu 14.x/15.x/16.x or later |
| Other | FreeBSD 9 / 10 / 11 or later, VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later |
