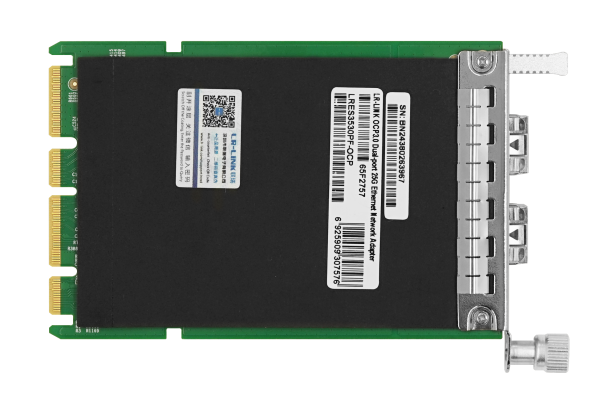

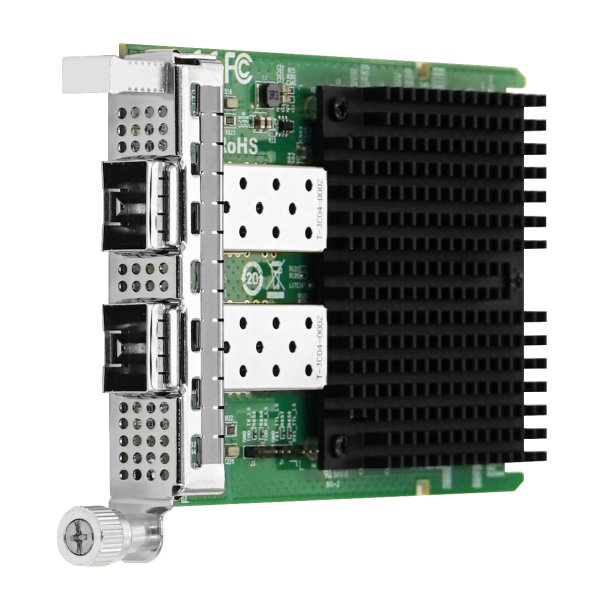

OCP 3.0 dual-port 25G SFP28 Ethernet adapter based on NetSwift WX5025, supporting PCIe 4.0 x8 and low power consumption.
Cloud infrastructure demands high-bandwidth connectivity without excessive power draw or thermal overhead. Traditional adapters often compromise between performance and energy efficiency, creating bottlenecks in dense server environments. The LRES3530PF-OCP addresses this by delivering robust 25G throughput while maintaining minimal power usage.
Powered by the NetSwift WX5025 controller, this OCP 3.0 card supports PCIe Gen4 x8 interfaces and dual SFP28 ports operating at 10Gbps or 25Gbps. With maximum power consumption of just 7.464W, it significantly reduces total cost of ownership (TCO) while enabling high-performance computing tasks like VXLAN and GENEVE virtualization.
Ideal for AI training clusters, storage platforms, and network security appliances, this adapter ensures seamless integration with major OS platforms including RHEL, Ubuntu, and KylinOS. Its compact SFF design and comprehensive protocol support make it a reliable choice for enterprise data centers seeking scalable, low-latency networking solutions.
Industry-lowest power consumption under same working conditions, reducing TCO with max power of 7.464W.
Dual-port SFP28 interfaces supporting 10Gbps and 25Gbps speeds via PCIe 4.0 x8 host connection.
Supports hardware isolation and virtualization technologies such as VXLAN and GENEVE for cloud environments.
Designed according to OCP 3.0 specification with Small Form Factor (SFF) package for dense server deployments.
Includes IEEE 1588 PTP, SR-IOV, NCSI, and Jumbo Frames up to 9.2KB for enhanced network management.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Model | LRES3530PF-OCP |
|---|---|
| Controller | NetSwift WX5025 |
| Adapter Type | OCP 3.0 |
| Form Factor | SFF |
| Host Connector | PCIe 4.0 x8 |
| Main Connectors | 2 x SFP28 |
| Port Count | Dual-Port |
|---|---|
| Link Speed | 10Gbps/25Gbps |
| Supported Physical Layer Interfaces (10Gbps) | 10GBASE-CX4, 10GBASE-SR/LR |
| Supported Physical Layer Interfaces (25Gbps) | 25GBASE-CR, 25GBASE-SR/LR |
| Cable Types | DACs, Optics, AOCs |
| Power Supply | PCIe Supply |
|---|---|
| Power (Min) | 5.244W |
| Power (Max) | 7.464W |
| Protocol Support | IEEE 802.3x Full Duplex and flow control, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3AS, IEEE 802.1Q VLAN, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1x, IEEE 802.1bd, IEEE 1588 v1&v2 |
|---|
| Feature Support (Yes) | NCSI, PXE/UEFI, WoL, SR-IOV, 1588 PTP, SMbus, ScanChain, FRU, HotSwap, Jumbo Frames 9.2KB |
|---|
| Operating Temperature | -10°C to 60°C |
|---|---|
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35°C |
| ESD Discharge | ±8KV Class B |
| Certification | FCC, CE, RoHS |
| Adapter Size | 115*76mm |
|---|---|
| Package Size | 179*150*30mm |
