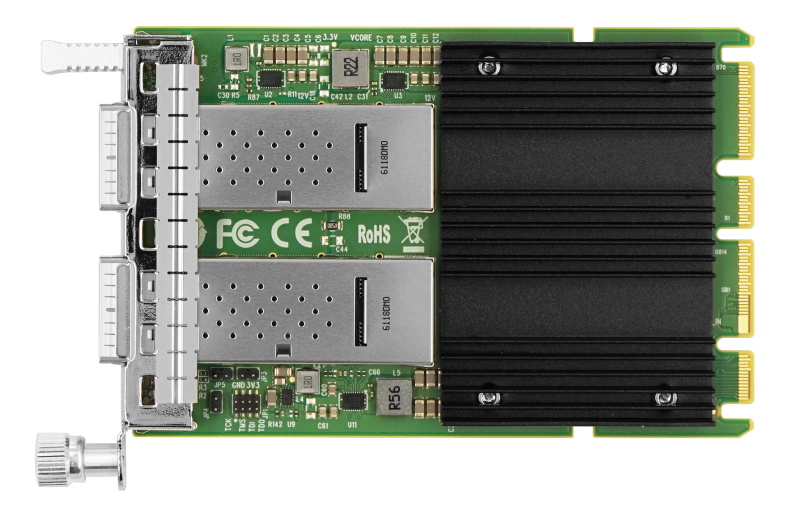

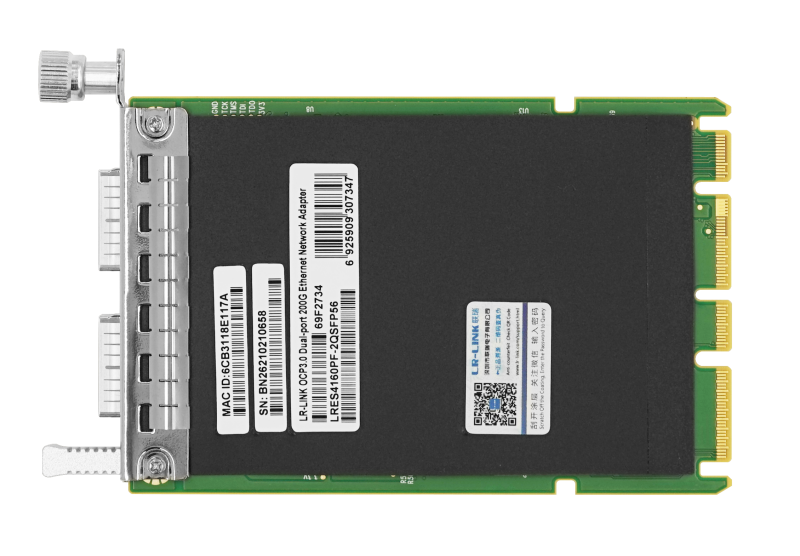

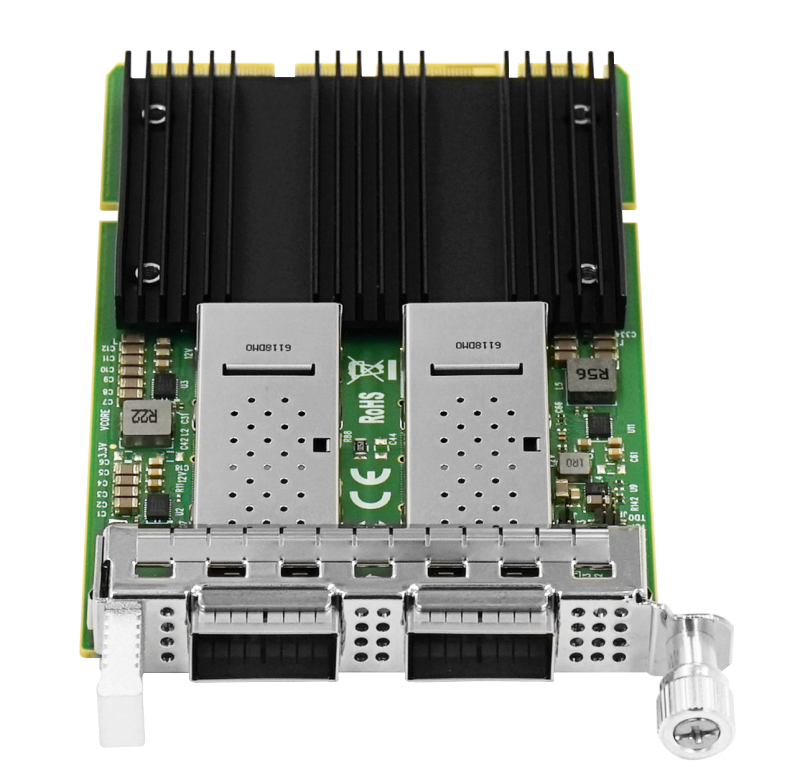

LRES4160PF-2QSFP56 is a 200GbE PCIe 4.0 x16 Ethernet network adapter featuring two QSFP56 optical ports, with each port supporting up to 200Gbps high-speed optical transmission. It adopts a PCIe 4.0 x16 interface to provide high-bandwidth, low-latency data transfer and complies with the OCP 3.0 small form factor (SFF) design specification.
The adapter supports TCP/UDP/IP stateless offload, LSO, LRO, checksum offload, and RSS (including RSS for encapsulated packets), offloading packet processing tasks to reduce CPU load and improve network performance. RDMA support delivers low latency and high performance, with end-to-end packet-level flow control enhancing enterprise-class RDMA networking.
LRES4160PF-2QSFP56 is designed for scalable enterprise and cloud-scale networking and storage applications, including high-performance computing, telecommunications, machine learning, and data analytics.
Specifications
Model | LRES4160PF-2QSFP56 |
Adapter Type | OCP 3.0 |
Form Factor | SFF |
Host Connector | PCIe4.0 x16 |
Connectors | 2 * QSFP56 |
Port | Dual |
Link Speed | 200G/100G/50G/40G/25G/10/1Gbps |
Protocol Support | IEEE 802.3bj, 802.3bm 100 and 200 Gigabit Ethernet IEEE 802.3by, Ethernet Consortium 25, 50 Gigabit Ethernet IEEE 802.3ba 40 Gigabit Ethernet IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3az Energy Efficient Ethernet IEEE 802.3ad, 802.1AX Link Aggregation IEEE 802.1Q, 802.1P VLAN tags and priority IEEE 802.1Qau (QCN) – Congestion Notification IEEE 802.1Qaz (ETS) IEEE 802.1Qbb (PFC) IEEE 802.1Qbg IEEE 1588v2 |
PXE/UEFI | Yes |
NCSI | Yes |
SR-IOV | Yes |
1588 PTP | Yes |
Scan Chain | Yes |
RDMA | Yes |
Hot Plug | Yes |
Jumbo Frames | 9.9KB |
LED Indicators
LED Type | Color/Behavior | Note |
Link/Speed | Off | No Link |
Amber | Link at lower speed | |
Green | Link at 200Gbps | |
Activity | Off | No Activity |
Green(blink) | Link up(traffic flowing) |
Supported Physical Layer Interfaces
200Gbps | 100Gbps | 40Gbps | 25Gbps | 10Gbps | |
DACs | 200GBASE-CR4 | 100GBASE-CR4 | 40GBASE-CR4 | 25GBASE-CR | 10GBASE-CR |
Optics and AOCs | 200GBASE-SR4 | 100GBASE-SR4 | 40GBASE-SR4 | 25GBASE-SR /LR | 10GBASE-SR /LR |
Adapter Power Consumption
DAC | Optical Transceiver | |
Min-Idle Ethernet traffic | * | 12.42W |
Max -100% Ethernet traffic | * | 32.83W |
Supported Operating System
Deepin RHEL/CentOS Ubuntu Fusion OS Windows NeoKylin OpenKylin iKuai Kylin OS NewStart OS UOS OpenEuler SUSE FreeBSD Debian Rockey Fangde |
Technical Specifications
Operating Temperature | -10°C to 60°C |
Storage Temperature | -40°C to 70°C |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC,CE,RoHS |
Physical Properties
Product Size(Unit:mm) | 115 * 76 |
Package Size (Unit: mm) | * |
Packing List
Internet Network Adapter | *1 |
Product Warranty Card | *1 |
Packaging | Carton + Anti-static bag |
