LRFCF921
LRFCF921

lrfcf921

Main PCle Connectors: 2 SlimSAS 8i socket connectors (SFF-8654)
Auxiliary PCle connector: PCle x16 slot with support for single-slot x16 signals
Power interface: ATX 2x3 GPU power interface, 12V
LRFCF921
PDF 538.99KB
Download
More Support
Inquiry
Suggestion
Overview

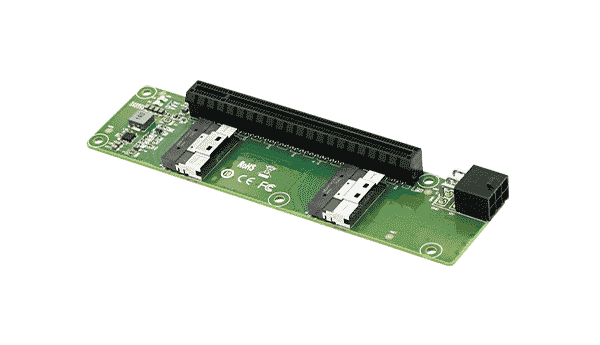

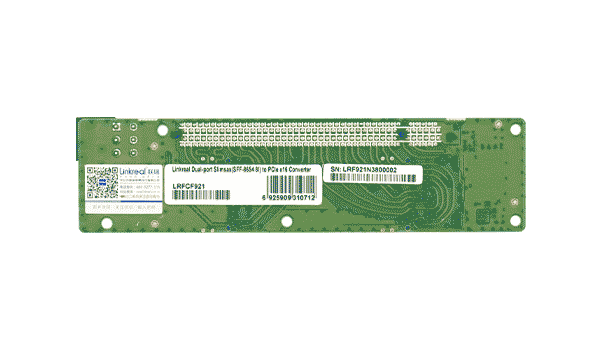

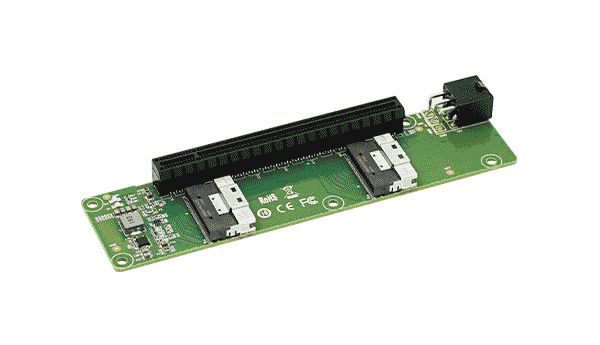

LRFCF921 is a SlimSAS (SFF-8654 8I) to PCIe x16 slot riser that allows you to expand a PCIe x16 slot by inserting a PCIe expansion card with 2 SFF-8654 connectors. This provides greater bandwidth and faster transfer speeds. It can be easily connected to graphics cards, accelerator cards, and other devices to improve computing efficiency.

LR-LINK


Specifications

HARDWARE

Model

LRFCF921

Bus Type

PCI Express

Interface Type

2*SFF-8654(PCle Gen 4）

Number of ports

2 built-in interfaces

Device Connector

1*PCIe x16

Power supply interface

ATX 2x3 GPU power connector


ENVIRONMENTAL

Humidity

15%-90%

Operating Temperature

0℃-80℃(32℉-176℉)

Storage Temperature

-25℃-80℃(-13℉-1176℉)
