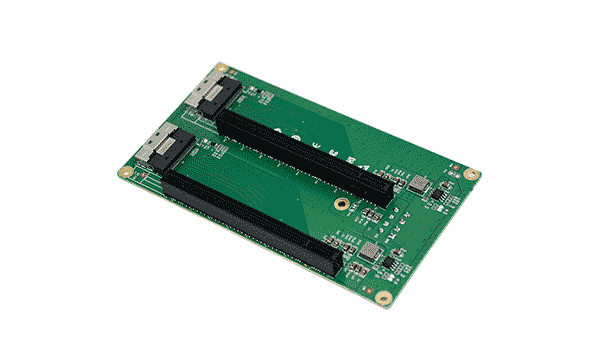

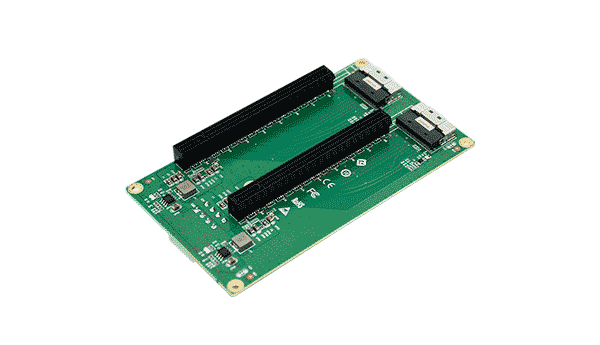

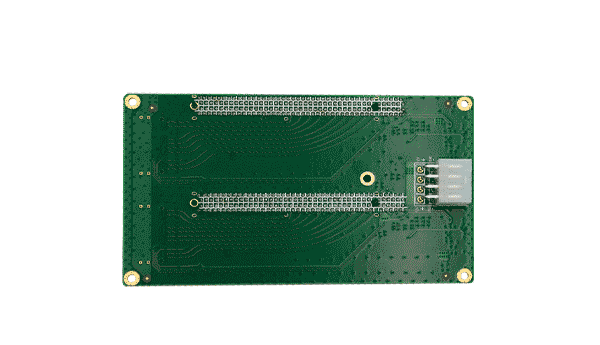

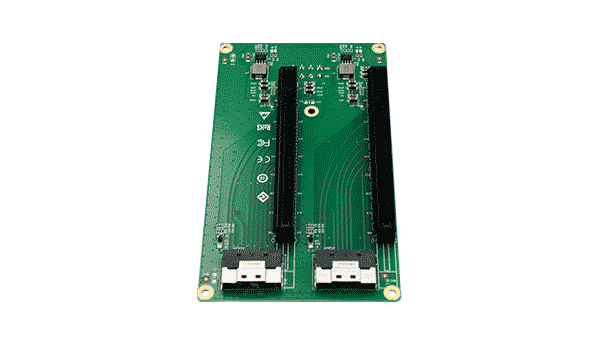

Converts one PCIe x16 slot into two PCIe x8 slots via SFF-8654 connectors.
The LRFCF922-X8 is a specialized PCIe expansion solution designed to maximize slot utility in servers and workstations. By converting a single PCIe x16 physical slot into two logical PCIe x8 connections, it enables the addition of multiple high-speed devices without consuming additional motherboard slots.
Equipped with two SFF-8654 (SlimSAS HD) connectors, this card supports PCIe 4.0 x8 signals per port. This makes it ideal for connecting NVMe storage arrays, network interface cards, or other PCIe peripherals that utilize SlimSAS cabling or backplanes.
To ensure reliable performance under load, the LRFCF922-X8 includes a dedicated 8-pin power connector. This auxiliary power input guarantees stable voltage delivery to connected devices, making it suitable for demanding environments such as data centers, cloud computing infrastructure, and industrial automation systems.
Supports PCIe 4.0 x8 signals per port for high-bandwidth data transmission.
Features two SlimSAS HD (SFF-8654) connectors for flexible device expansion.
Converts one PCIe x16 slot into two independent PCIe x8 slots.
Includes an 8-pin power connector to ensure stable output for connected devices.
Complete technical details for integration and deployment planning.
| Model | LRFCF922-X8 |
|---|---|
| Bus Type | PCI-Express |
| Host Connector | Physical Slot PCIe x16 (PCIe x8 signal) |
| Device Connectors | 2* SFF-8654 (74 Pin, PCIe 4.0 x8) |
| Power Connector | One 8 pin power connector |
| Operating Temperature | 0°C-70°C (41°F-158°F) |
|---|---|
| Storage Temperature | -25°C-80°C (-13°F-176°F) |
| Humidity | 15%-90% |
| PCB Size | 80*142*1.6 mm |
|---|
