Converts single PCIe x16 slot to two SFF-8654 ports for 4-slot expansion.

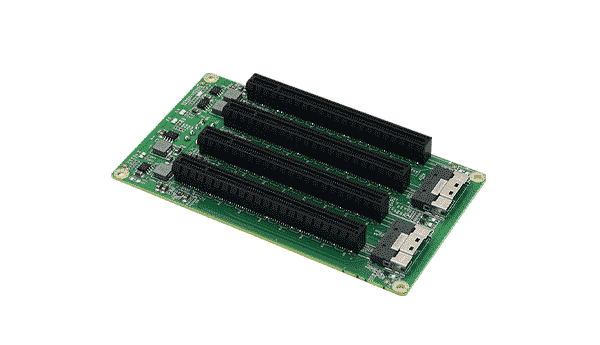

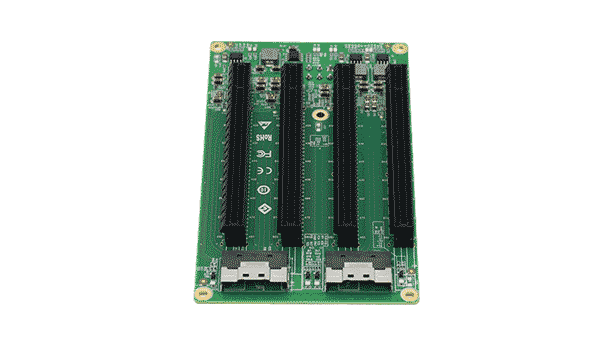

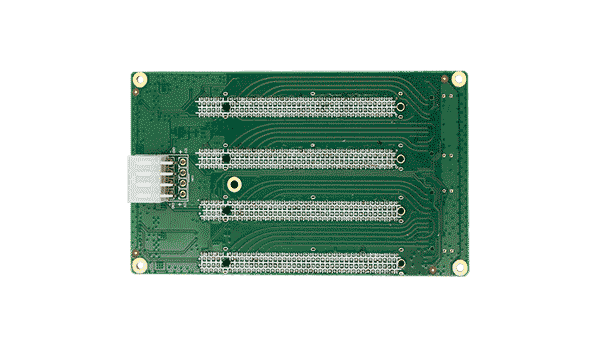

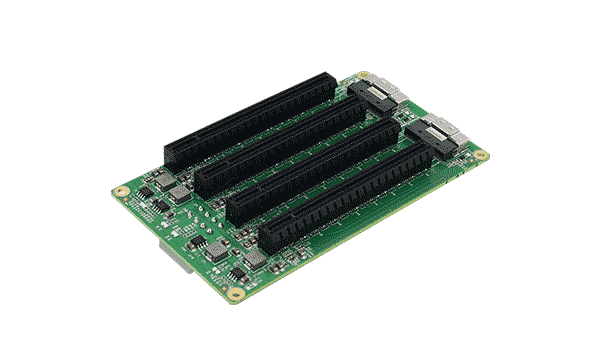

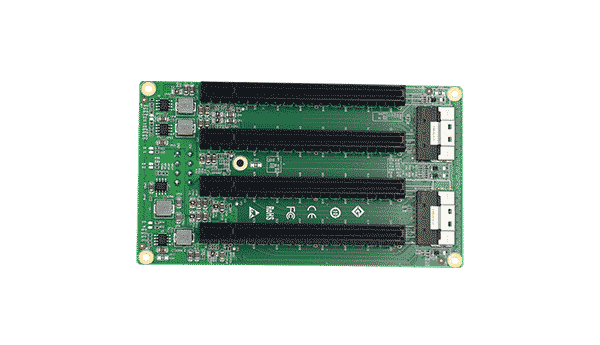

The LRFCF944-X4 is a high-performance PCIe expansion solution designed to maximize connectivity in servers and workstations. By converting a single PCIe x16 slot into two SFF-8654 (SlimSAS) interfaces, it enables the connection of additional PCIe devices through expansion cards.
Each SFF-8654 port supports PCIe 4.0 x4 signaling, allowing for a total of four downstream PCIe x4 slots when used with compatible breakout cables or backplanes. This makes it ideal for applications requiring high-density PCIe lane distribution without consuming multiple motherboard slots.
The card features a robust hardware design with a dedicated SATA 8-pin power connector to ensure stable operation under load. It is built to withstand industrial environments with an operating temperature range of 0°C to 70°C, making it suitable for data centers, cloud storage, and industrial automation systems.
Features two SlimSAS 4i sockets (SFF-8654) supporting PCIe 4.0 x4 signaling each.
Utilizes PCIe 4.0 standard for high-speed data transmission between host and devices.
Converts one PCIe x16 slot into four PCIe x4 lanes via two SFF-8654 connectors.
Equipped with a standard SATA 8-pin power connector for stable output and expansion.
Complete technical details for integration and deployment planning.
| Model | LRFCF944-X4 |
|---|---|
| Bus Type | PCI-Express |
| Host Connector | Physical Slot PCIe x16 (PCIe x4 signal) |
| Device Connector | 2* SFF-8654 (38Pin, PCIe 4.0 x4) |
| Number of Drivers | 4 built-in |
| Power Connector | 1 SATA 8Pin power connector |
| PCB Size | 80*142*1.6 mm |
|---|
| Operating Temperature | 0°C-70°C (41°F-158°F) |
|---|---|
| Storage Temperature | -25°C-80°C (-13°F-176°F) |
| Humidity | 15%-90% |
