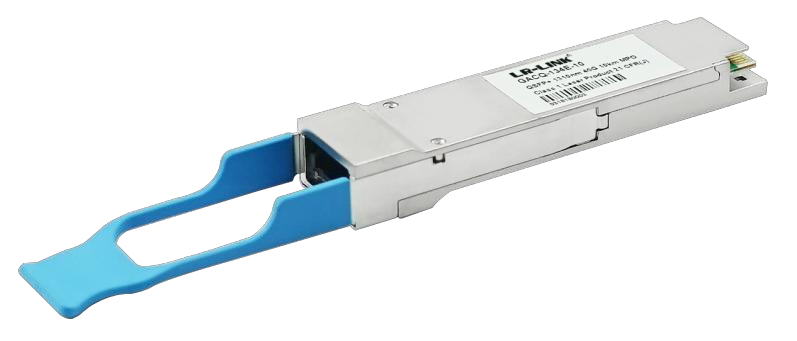

LR-LINK QSFP+ 40Gbps transceiver module for 40G Ethernet, supporting up to 10km transmission on single-mode fiber.
High-density data center interconnects often struggle with signal integrity and power consumption when scaling to 40G speeds. The LRFQ1340-10ATL addresses these challenges by providing a low-power, high-performance QSFP+ solution that maintains signal quality over extended distances without requiring complex cooling infrastructure.
This transceiver operates at a total data rate of 40Gb/s using four 10.3125Gb/s lanes with CWDM wavelengths. With a maximum power dissipation of only 2.5W and support for commercial temperatures from 0℃ to +70℃, it ensures energy-efficient operation while delivering consistent throughput for demanding network applications.
Ideal for 40G Ethernet deployments in enterprise and cloud environments, this module complies with IEEE 802.3ba standards and SFF-8436 specifications. Its ability to transmit up to 10km makes it a versatile choice for connecting buildings or campus networks, offering a robust alternative to copper solutions for long-reach 40G links.
Supports 40Gb/s data rate via 4x10Gb/s CWDM channels for high-bandwidth applications.
Enables transmission distances up to 10km on single-mode fiber, suitable for campus networks.
Low power consumption of ≤2.5W reduces operational costs and heat generation in dense racks.
Fully compliant with IEEE 802.3ba and SFF-8436 standards ensuring broad compatibility.
Designed for easy installation and replacement without system downtime.
Complete technical details for integration and deployment planning.
| Form Factor | QSFP+ |
|---|---|
| Data Rate | 40Gb/s |
| Interface | XLPPI |
| Standard Compliance | IEEE 802.3ba, SFF-8436 v4.8, QSFP+ MSA |
| Fiber Type | Single Mode |
|---|---|
| Wavelengths (CWDM) | 1271nm, 1291nm, 1311nm, 1331nm |
| Max Transmission Distance | 10km |
| Tx Output Power | -7 to 2.3 dBm per lane |
| Rx Sensitivity | -14.0 to -11.5 dBm per lane |
| Supply Voltage | 3.3V |
|---|---|
| Power Consumption | ≤ 2.5W |
| Max Supply Current | 475 mA |
| Operating Temperature | 0℃ ~ +70℃ (Commercial) |
|---|---|
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 5% ~ 85% (non-condensing) |
