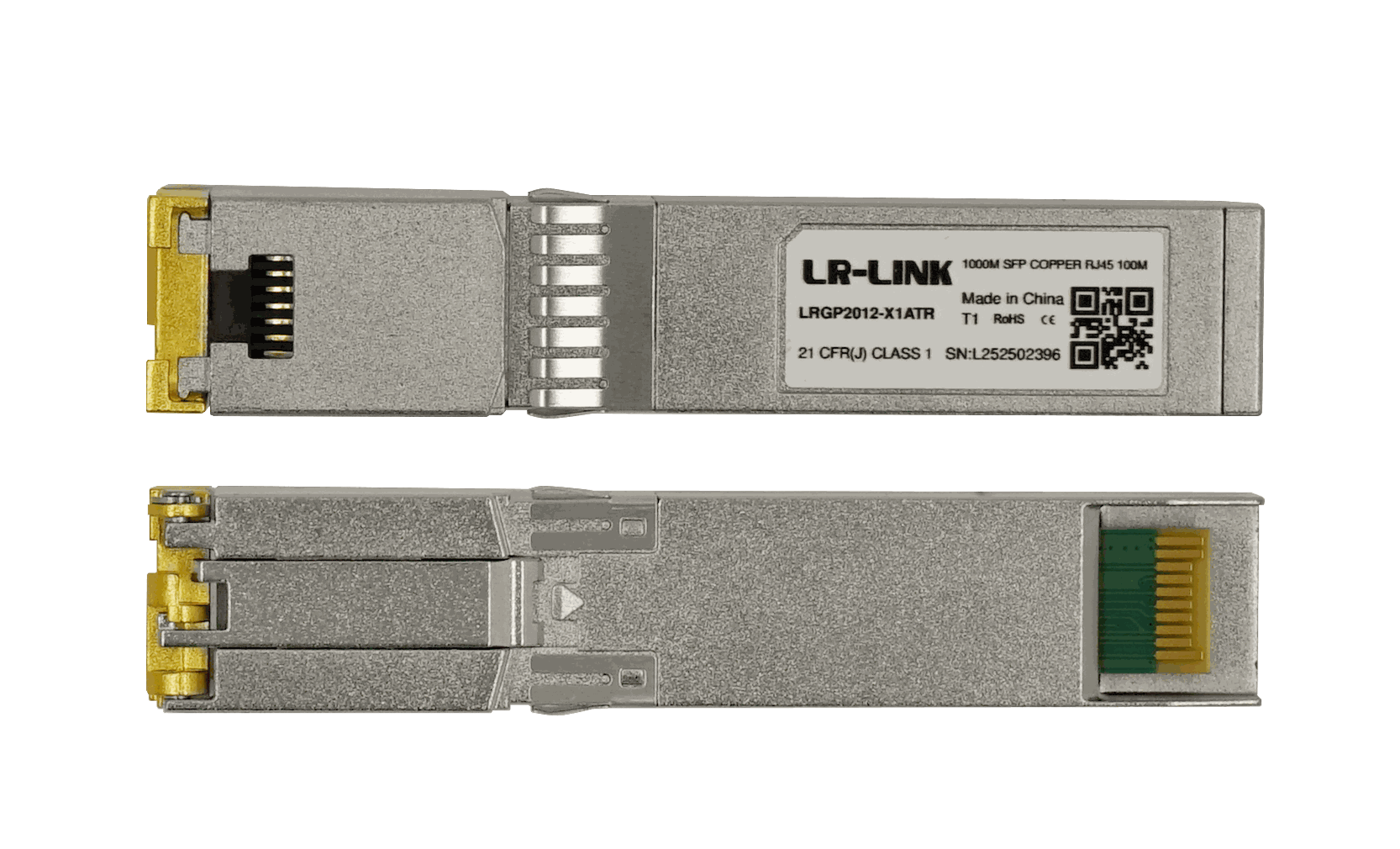

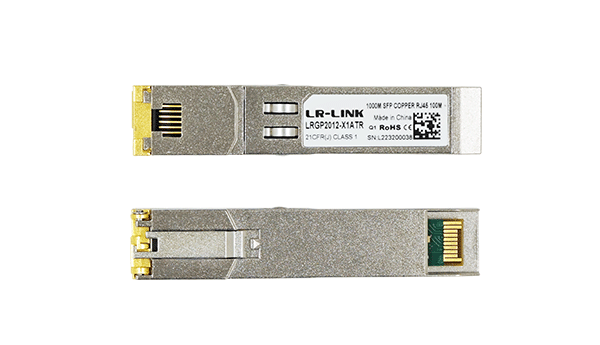

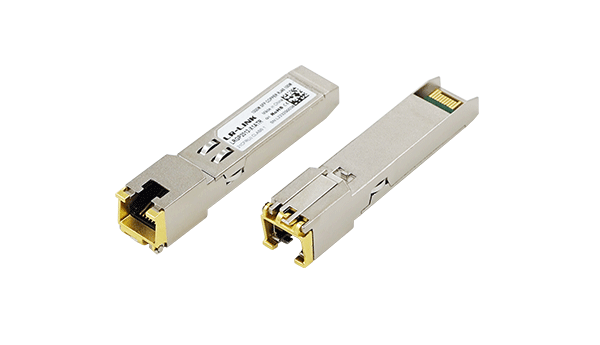

1Gbps SFP copper transceiver with RJ45 interface, supporting 10/100/1000M speeds up to 100m.
Enterprise networks often face challenges when connecting legacy copper infrastructure to modern fiber-based backbones, requiring reliable media conversion solutions that maintain signal integrity over standard cabling. The LRGP2012-X1ATR addresses this by providing a robust copper-to-digital bridge for Gigabit Ethernet deployments.
This SFP module delivers up to 1.25 Gb/s bi-directional data links, ensuring seamless integration into existing 10/100/1000M environments. With a maximum transmission distance of 100 meters using CAT5 cable, it eliminates the need for expensive fiber runs in short-distance server room connections while maintaining electromagnetic compatibility.
Ideal for data centers and enterprise networks, this transceiver complies with IEEE 802.3z, 802.3u, and 802.3ab standards. Its hot-pluggable design allows for easy maintenance without system downtime, making it a cost-effective solution for expanding network port density.
Supports 10/100/1000M transmission over CAT5 cables up to 100m.
Allows for easy installation and removal without powering down the system.
Provides up to 1.25 Gb/s bi-directional data links for efficient networking.
Fully compliant with IEEE 802.3z, 802.3u, and 802.3ab standards.
Complete technical details for integration and deployment planning.
| Product Name | LRGP2012-X1ATR |
|---|---|
| Interface Type | SFP Copper RJ45 |
| Data Rate | Up to 1.25 Gb/s |
| Transmission Speeds | 10M/100M/1000M |
| Power Supply | +3.3V Single Power Supply |
| Design | Hot-pluggable |
| Transmission Distance | 100m (with CAT5) |
|---|---|
| Operating Temperature | 0°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| BER | 10^-12 |
| Working Current | Typical 210 mA / Max 375 mA |
| Operating Voltage | Typical 3.3 V / Max 3.6 V |
| IEEE Standards | IEEE 802.3z, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3 Gigabit Ethernet |
|---|
| RoHS Compliant | Yes |
|---|---|
| I2C Interface Access | Yes (PHY chip registers) |
| SFP MSA Standard | Compliant |
| Host Input Swing | 250 - 1200 mV |
|---|---|
| Host Output Swing | 275 - 800 mV |
| Tx/Rx Rise/Fall Time | 175 ps |
| Line Frequency | 125 MHz |
