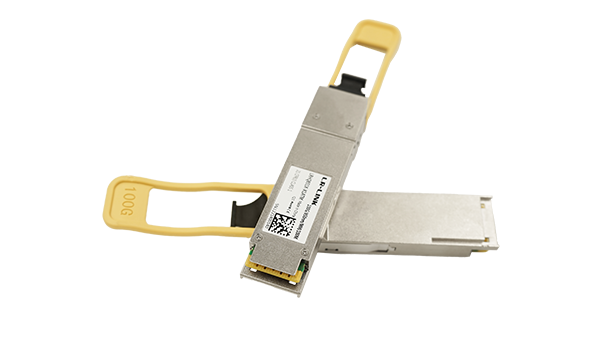

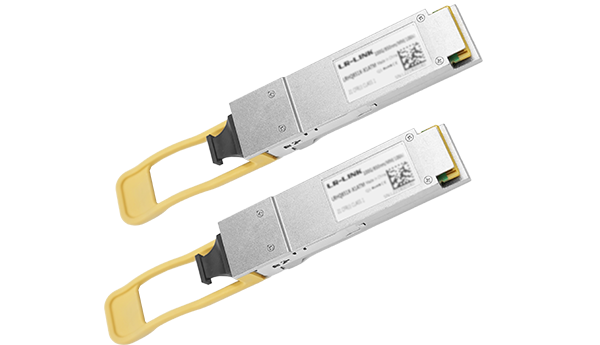

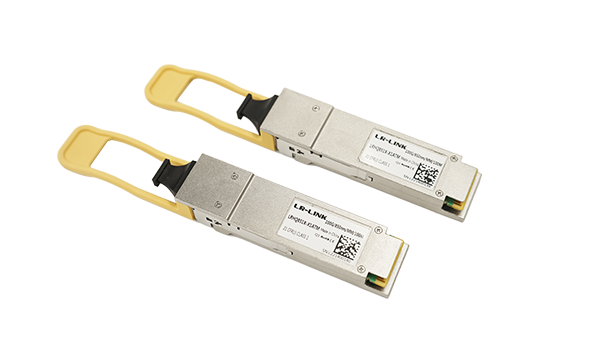

100G QSFP28 single-mode transceiver with MPO interface for data center interconnects.
When high-bandwidth data center interconnects require reliable long-reach optical links, standard multimode modules often fail to deliver necessary distance. This QSFP28 transceiver module addresses that gap for enterprise network deployments.
The LRHQ131X-02ATM delivers 100Gbps bandwidth at 1310nm wavelength, supporting transmission distances up to 2km. Compliant with IEEE 802.3bm standards, this single-mode fiber module ensures interoperability while maintaining low power consumption under 3.5W, reducing operational costs in dense rack environments.
Ideal for 100G Ethernet and InfiniBand QDR/DDR applications, this module offers hot-swap capability for seamless maintenance. Unlike generic alternatives, it meets strict industrial temperature ranges (-40°C to +85°C), ensuring reliability in demanding data center conditions.
Supports maximum data rate of 103.1Gb/s compliant with IEEE 802.3bm 100Gb/s standard.
Enables transmission distances up to 2km over single-mode fiber at 1310nm wavelength.
Operates with power consumption ≤3.5W on a single +3.3V power supply.
Designed as pluggable QSFP28 package supporting hot swap for easy deployment and maintenance.
Supports industrial working temperature from -40℃ to +85℃ for harsh environments.
Complete technical details for integration and deployment planning.
| Product Type | QSFP28 Transceiver Module |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 103.1Gb/s |
| Data Rate Per Channel | 25.7812Gb/s |
| Wavelength | 1310nm |
| Fiber Type | Single Mode |
| Connector Type | MPO |
| Transmission Distance | 2km |
| IEEE Standards | IEEE 802.3bm |
|---|
| Supported Features | Hot Swap, RoHS Compliant, Digital Diagnostic Monitoring |
|---|
| Supply Voltage | 3.3V |
|---|---|
| Power Consumption | ≦3.5W |
| Power Supply Current | 1200 mA |
| Operating Temperature (Commercial) | 0℃~+70℃ |
|---|---|
| Operating Temperature (Industrial) | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 5%~85% (non-condensing) |
