Expand storage with 4 internal NVMe SSDs via PCIe 3.0 x8 switch.

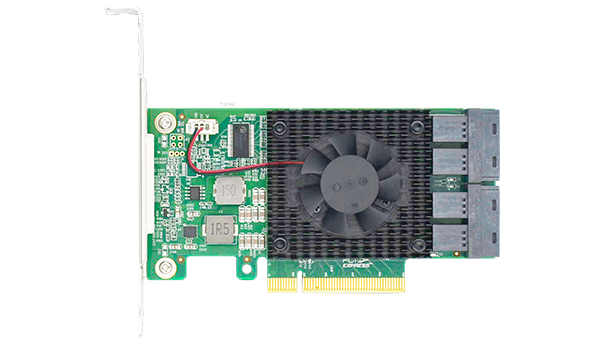

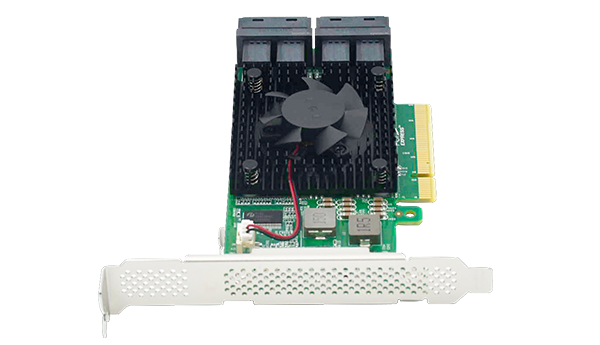

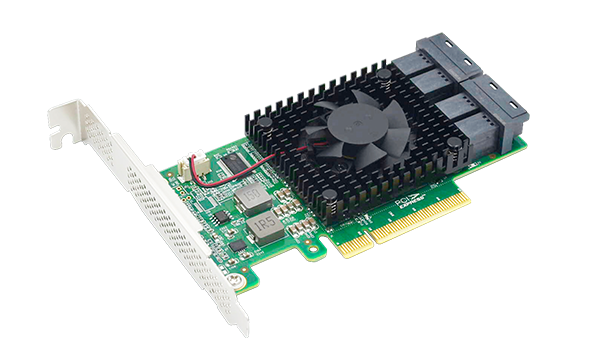

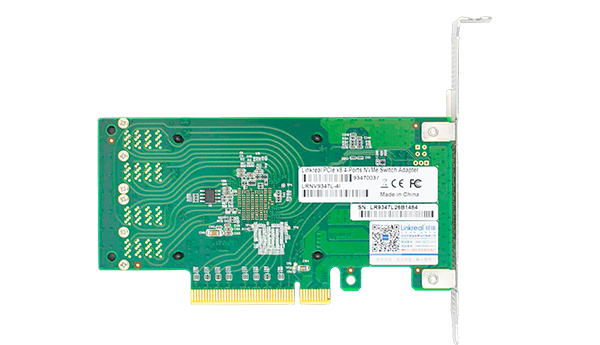

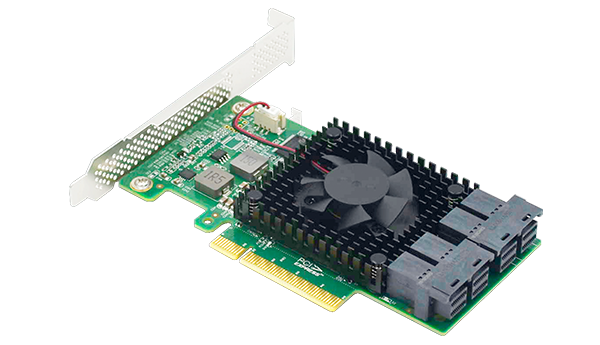

When server PCIe slots are limited, expanding high-speed NVMe storage without sacrificing GPU or network bandwidth becomes a critical challenge. The LRNV9347L-4I PCIe NVMe Switch Adapter solves this by converting a single PCIe 3.0 x8 slot into four independent SFF-8643 ports, enabling scalable storage expansion for data centers and graphics platforms.
Powered by the PLX PEX8747 controller, this adapter delivers a total PCIe transfer rate of up to 64Gb/s, with each SSD achieving up to 32Gb/s. This non-blocking architecture ensures full line-rate performance on all ports simultaneously, eliminating storage bottlenecks in high-throughput applications like AI training clusters and real-time analytics.
Ideal for servers requiring dense NVMe storage, the LRNV9347L-4I supports native NVMe drivers across Windows, Linux, and VMware environments without additional software. Its robust design includes QoS with eight traffic classes per port, ensuring reliable, low-latency data access for mission-critical enterprise workloads.
Expands one PCIe 3.0 x8 slot to four SFF-8643 ports for NVMe SSDs.
Features PLX PEX8747 switch chip for non-blocking, full line-rate performance.
Requires no additional drivers; uses native OS NVMe drivers for seamless integration.
Supports eight traffic classes per port and Access Control Services for stable operation.
Complete technical details for integration and deployment planning.
| Model | LRNV9347L-4I |
|---|---|
| I/O Controller | PLX PEX8747 |
| Number of Device | 4 internal |
| Bus Type | PCI Express |
| Interface | SFF-8643 |
| Device | 4- NVMe SSD |
|---|---|
| Host Bus | PCI Express x8 |
| Total PCIe Transfer Rate | Up to 64Gb/s |
|---|---|
| Each SSD Transfer Rate | Up to 32Gb/s |
| Switch Fabric | Non-blocking, Full line rate on all ports |
| Quality of Service | Eight traffic classes per port |
| PCI Express Specification | Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0) |
|---|---|
| Power Management | Compliant with PCI Power Management Spec, r1.2 |
| Driver Requirement | No driver required (Native NVMe) |
|---|---|
| Access Control Services | Supported |
| Peer-to-Peer Traffic | Supported |
| Multicast | Supported |
| Supported OS | RedHat, Suse, Microsoft Windows, Vmware, MAC OSX, FreeBSD |
|---|---|
| Microsoft Compliance | Microsoft Vista Compliant |
| Operating Temperature | 5°C to 55°C (+32°F to +131°F) (dry bulb) |
|---|---|
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Relative Humidity | 5% ~ 90% noncondensing |
| Dimension | 130mm x 68.90mm |
|---|---|
| Product Weight | 153.5g |
| Warranty | 2 Years |
|---|---|
| Package Contents | 1 – PCIe 3.0 X8 to 4 Port SFF-8643 NVMe Switch Adapter, 1 - full-height bracket (installed), 1 - low-profile bracket |
