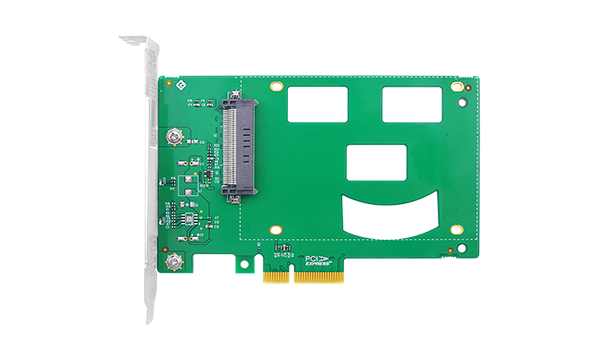

Drive-less and cable-less PCIe adapter for U.2 NVMe SSDs.
Adding high-capacity NVMe storage to legacy or slot-limited systems often requires cumbersome cables or complex backplanes. The LRNV9411 PCIe 4.0 x4 NVMe U.2 SSD Adapter eliminates this clutter with a direct-mount, drive-less design that integrates seamlessly into your existing infrastructure.
Supporting PCIe 4.0 x4 bus speeds and compatible with x8/x16 slots, this adapter delivers high-bandwidth connectivity for U.2 (SFF-8639) NVMe SSDs. By mounting the drive directly onto the card, it reduces signal loss and simplifies installation, enabling faster data access for demanding applications without additional power cables.
Ideal for workstations and servers requiring expanded storage, the LRNV9411 supports most operating systems and requires no driver for the adapter itself. Ensure your motherboard BIOS supports NVMe boot if using as a system disk. This robust solution offers a stable, non-destructive way to scale storage in data centers and cloud computing environments.
Mounts U.2 NVMe SSDs directly onto the adapter, eliminating external cables and reducing clutter.
Utilizes PCIe 4.0 x4 bus type for high-bandwidth data transfer, compatible with x8 and x16 slots.
Supports most operating systems and U.2 (SFF-8639) NVMe SSDs without requiring specific drivers for the adapter.
Can be used as a system disk if the motherboard BIOS supports NVMe boot protocol.
Complete technical details for integration and deployment planning.
| Model | LRNV9411 |
|---|---|
| Bus Type | PCIe 4.0 x4 |
| Supported Devices | NVMe SSD |
| Interface Type | U.2 (SFF-8639) |
| Compatible Device Type | U.2 (PCIe NVMe SSD, SFF8639) |
| Device Connector | U.2 (PCIe_NVMe SSD, SFF-8639) |
|---|---|
| Host Bus | PCI Express x8, compatible with x16 |
| Humidity | 15%-90% |
|---|---|
| Operating Temperature | 0℃-70℃ (32℉-158℉) |
| Storage Temperature | -25℃- 80℃ (-13℉- 176℉) |
| PCB size | 89.9*137*1.6 mm |
|---|
| Package size | 235*165*25 mm |
|---|
Look up product firmware versions, hardware revisions, and OS compatibility by entering your part number or hardware version.
