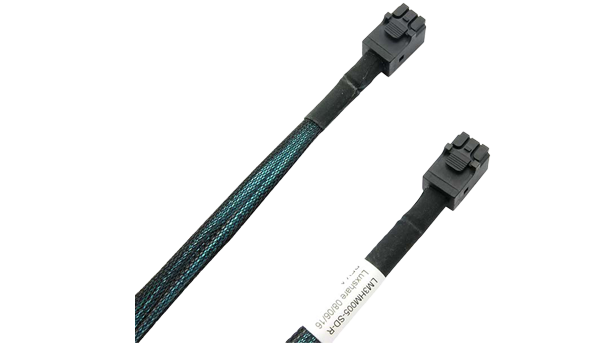

Internal Mini SAS HD SFF-8643 to SFF-8643 cable for server storage connectivity.
When organizing dense server storage backplanes, rigid cables often restrict airflow and complicate maintenance routing. This Mini SAS HD cable solves physical layout challenges in high-density rack environments.
The LRSF4343-1M features dual SFF-8643 connectors with 30AWG conductors, ensuring signal integrity for 12Gbps SAS links. Its 1-meter length enables flexible routing between RAID controllers and drive backplanes without excess slack, optimizing chassis airflow and cooling efficiency.
Ideal for connecting host bus adapters to NVMe or SAS backplanes, this cable supports enterprise storage expansion. Unlike generic alternatives, Linkreal cables undergo strict impedance testing to prevent data errors during critical I/O operations.
Dual Mini SAS HD 4i internal connectors for high-density storage backplane connections.
Precision 30AWG wiring ensures stable signal transmission for 12Gbps SAS applications.
Optimized 1M length allows flexible routing in standard and compact server chassis.
30u" gold plating provides corrosion resistance and reliable mating cycles.
Complete technical details for integration and deployment planning.
| Product Type | Mini SAS HD Cable |
|---|---|
| Model Number | LRSF4343-1M |
| Connector A | Mini SAS HD 4i (SFF-8643) |
|---|---|
| Connector B | Mini SAS HD 4i (SFF-8643) |
| Length | 1M |
|---|---|
| Wire Gauge | 30AWG |
| Impedance | 100Ω |
| Plating | Au 30u" |
| Color | Blue |
