PCIe 2.0 x4 SATA 3.0 RAID controller with 2 M.2 and 2 SATA ports.
When motherboard SATA 3.0 ports are insufficient for high-speed storage needs, expanding capacity without sacrificing performance becomes critical. The LRST9630-2M2S PCIe 2.0 x4 SATA 3.0 RAID controller solves this by providing four additional SATA interfaces through a single PCIe slot, ensuring your server or workstation meets modern data throughput demands.
Powered by the Marvell 88SE9230 I/O controller, this card supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps, delivering reliable data transfer for SATA SSDs and HDDs. With support for RAID 0, 1, and 10, it enables data redundancy or striped performance, while Native Command Queuing (NCQ) optimizes read/write operations for efficient multitasking.
Ideal for data centers and workstations requiring scalable storage, the LRST9630-2M2S features a skinny version adapter design compatible with 2U and 3U metal cases. Its hot-plugging support and backward compatibility with SATA 2.0 ensure seamless integration into existing infrastructures, offering a cost-effective solution for storage expansion.
Based on Marvell 88SE9230 chip for reliable SATA 3.0 performance and scalability.
Supports RAID 0, 1, and 10 levels for data redundancy and improved read/write speeds.
Provides 2 M.2 B-Key and 2 SATA ports for flexible storage expansion options.
Supports 6.0Gbps, 3.0Gbps, and 1.5Gbps communication speeds for fast data access.
Enables hot-plugging and heat-exchanging for uninterrupted system operation.
Complete technical details for integration and deployment planning.

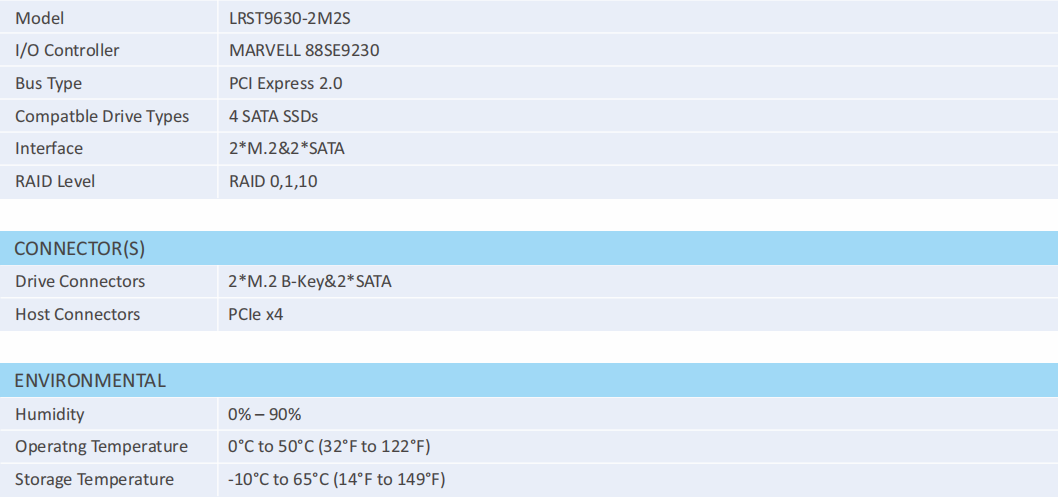

| I/O Controller | MARVELL 88SE9230 |
|---|
| Bus Type | PCI Express 2.0 |
|---|---|
| Host Connectors | PCIe x4 |
| Drive Connectors | 2*M.2 B-Key & 2*SATA |
| Interface | 2*M.2 & 2*SATA |
| Compatible Drive Types | 4 SATA SSDs |
|---|---|
| RAID Level | RAID 0, 1, 10 |
| Communication Speeds | 6.0Gbps, 3.0Gbps, 1.5Gbps |
| Feature Support (Yes) | Native Command Queuing (NCQ), Message Signaled Interrupt (MSI), Port Multiplier FIS-based switching, Command-based switching, Hot-plugging, Heat-exchanging, AHCI 1.0, IDE programming interface, Partial and Slumber Power Management |
|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -10°C to 65°C (14°F to 149°F) |
| Humidity | 0% – 90% |

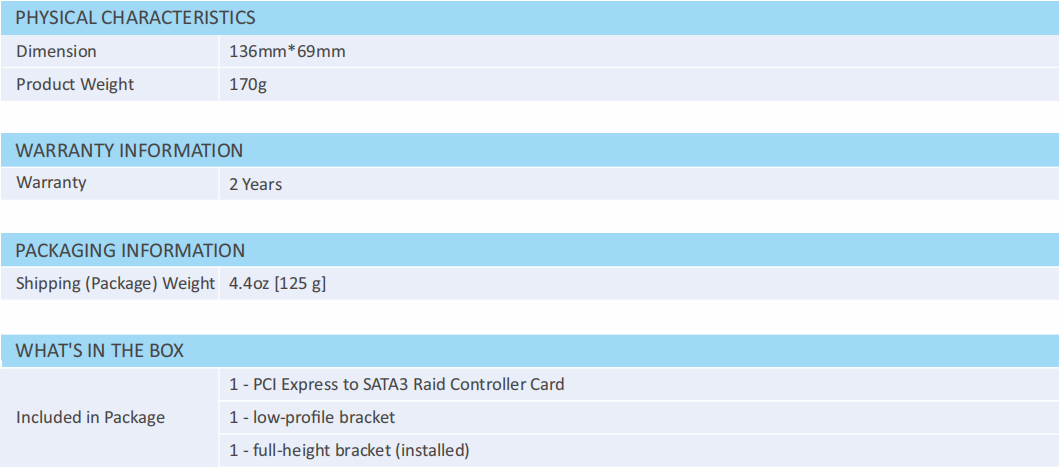

| Dimension | 136mm*69mm |
|---|---|
| Product Weight | 170g |
| Warranty | 2 Years |
|---|
