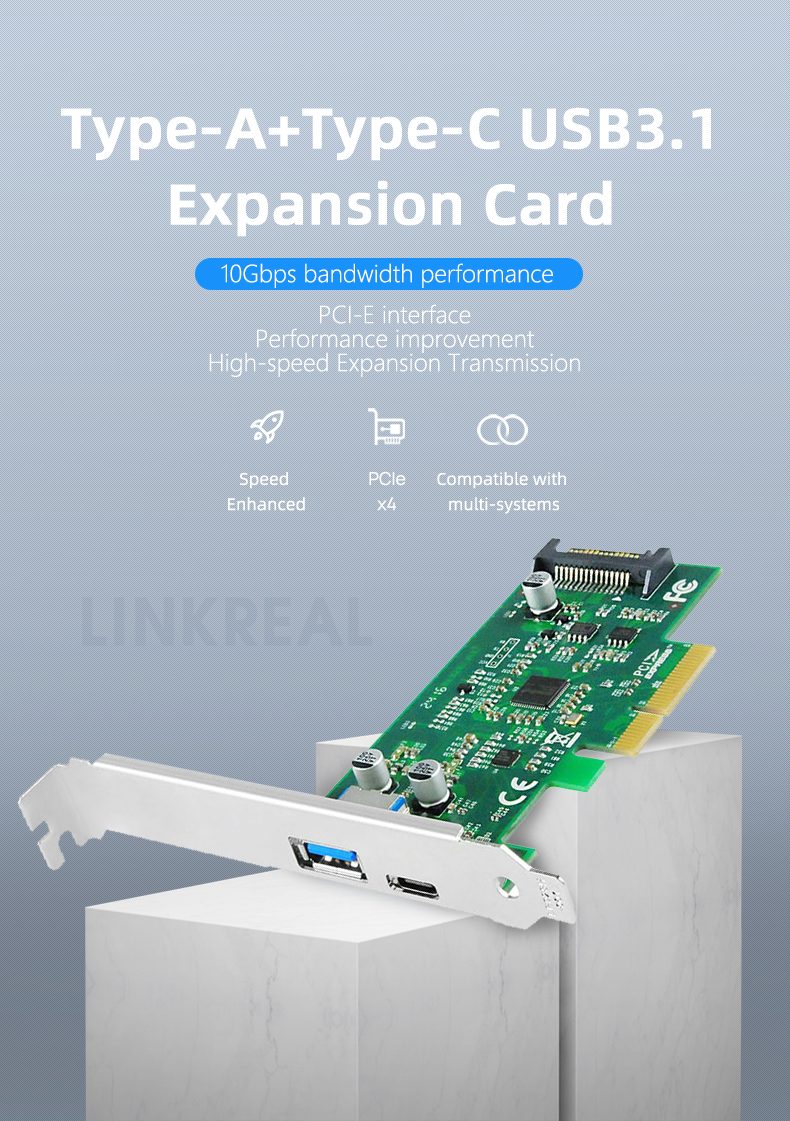

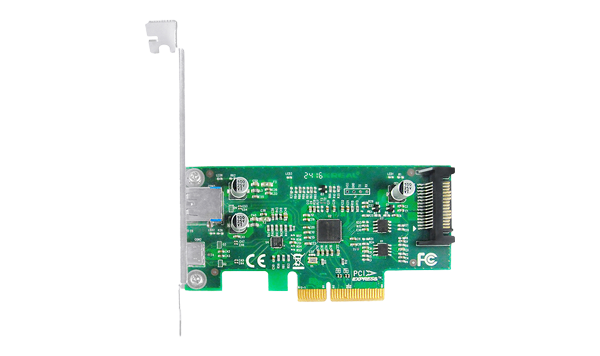

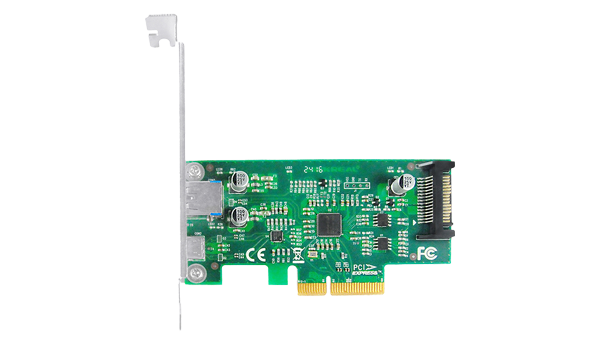

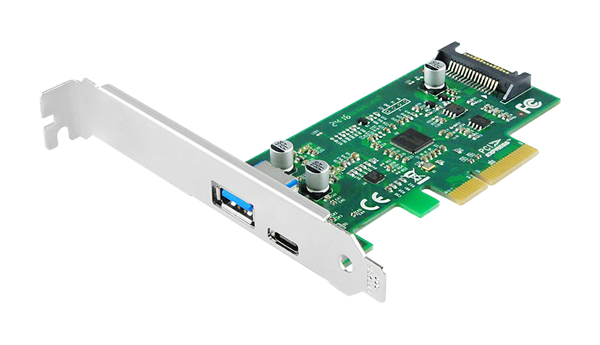

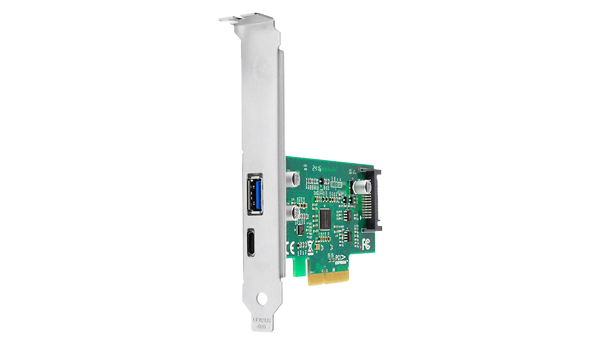

PCIe 3.0 x4 to dual USB 3.1 Gen2 adapter with Type-A and Type-C ports, up to 10Gbps.
When internal I/O slots are exhausted in compact server chassis, expanding connectivity without sacrificing performance becomes critical. The LRSU9A42-AC addresses this by bridging PCIe interfaces to two high-speed USB 3.1 ports, enabling seamless integration of external storage arrays or peripherals in space-constrained environments.
This card features an ASM1142 controller delivering up to 10Gbps bandwidth per port via USB 3.1 Gen2 standards. With a skinny form factor fitting 2U/3U cases and support for hot-plugging, it ensures reliable data transfer rates while maintaining system stability under heavy loads.
Designed for Windows Server, Linux RHEL/CentOS, and Ubuntu environments, the LRSU9A42-AC offers robust driver support for enterprise deployments. Its backward compatibility with USB 2.0/3.0 ensures broad device interoperability, making it a versatile solution for data center expansion and industrial automation setups.
Up to 10Gbps bandwidth with USB 3.1 Gen2 support for rapid data movement.

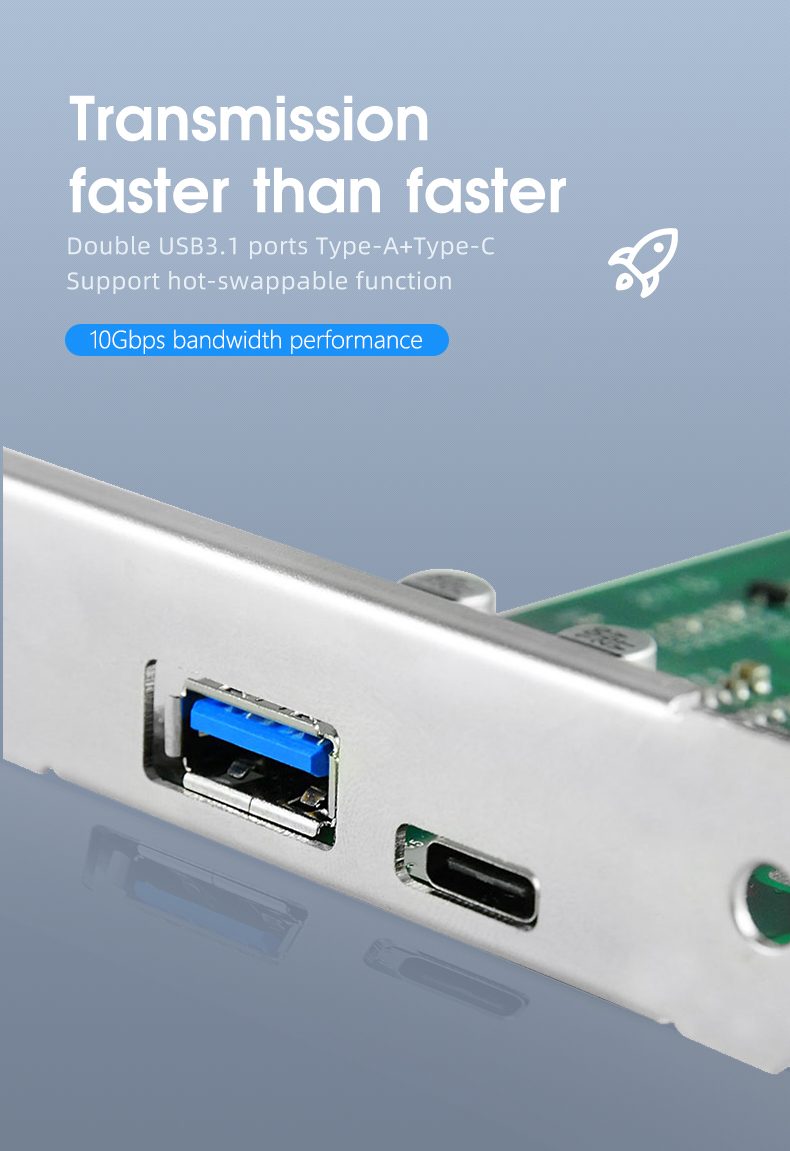

Combines USB Type-A and Type-C ports for versatile peripheral connections.
Skinny design fits 2U/3U server racks without obstructing airflow.
Backward compatible with USB 2.0/3.0 and PCIe 2.0/3.0 slots.
Complete technical details for integration and deployment planning.
| Controller Chip | ASM1142 / ASM1543 |
|---|
| Host Interface | PCIe 3.0 x4 (Compatible with x8, x16) |
|---|---|
| USB Standard | USB 3.1 Gen2 |
| Backward Compatibility | USB 3.0, USB 2.1, USB 2.0, PCIe 3.0, PCIe 2.1, PCIe 2.0 |
| Port Configuration | 1x USB 3.1 Type-A, 1x USB 3.1 Type-C |
|---|---|
| Transfer Rates | 10Gbps, 5Gbps, 480Mbps |
| Power Output | +5VDC/900mA per port |
| PCB Size | 105.4mm X 55.5mm (Skinny short external card) |
|---|---|
| Bracket | Metallic, Support height/skinny (2U/3U) |
| Weight | 47g |
| Input Power | 15-pin SATA CD-ROM power connection |
|---|---|
| SATA Supply Voltage | +12V±8%, 5V±9% |
| Power Dissipation | 3W |
| Protocol Support | Control, Bulk, Stream, Interrupt, Isochronous |
|---|
| Feature Support (Yes) | Hot-plugging, Wake On LAN (USB keyboard/mouse), Multiple USB devices operation |
|---|
| Working Temperature | 0°C – 60°C (32°F - 140°F) |
|---|---|
| Storage Temperature | -20°C – 70°C |
| Working Humidity | 5% – 95% |
| OS Support | Windows XP/Vista/7/8/8.1/10/Server 2008/2012, RHEL/CentOS 6.4, Ubuntu 16.04 |
|---|
