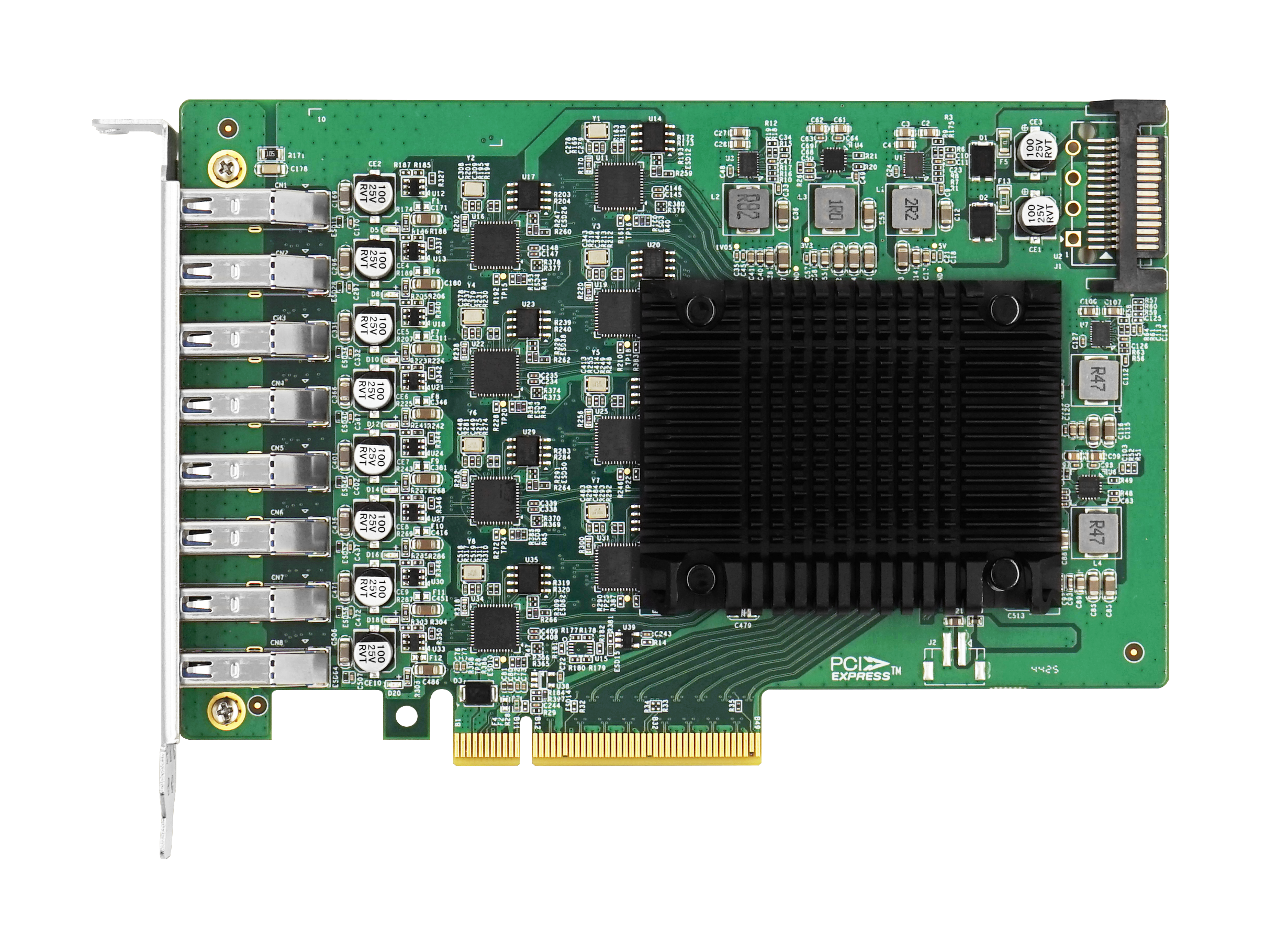

High-density PCIe x8 to 8-port USB 3.0 adapter for industrial automation and machine vision.
Connecting multiple high-bandwidth USB devices in industrial environments often leads to bandwidth bottlenecks and unstable data streams. The LRSU9A72-8A PCIe USB 3.0 adapter solves this by providing dedicated lanes for each port, ensuring consistent performance for critical applications like machine vision and quality inspection.
Based on the Renesas uPD720202 controller, this card features eight independent USB 3.0 ports, each supporting 5.0 Gbps data rates. The PCIe 2.0 x8 interface delivers sufficient backbone bandwidth to handle simultaneous high-speed transfers, eliminating the congestion common in hub-based solutions. This architecture enables reliable, low-latency connectivity for up to eight devices without performance degradation.
Ideal for factory automation, medical imaging, and security monitoring, the LRSU9A72-8A ensures robust operation in demanding settings. Its design leverages the proven stability of Renesas silicon to deliver enterprise-grade USB expansion. Choose this adapter to maximize device density and throughput in your industrial server or workstation.
Built on the reliable Renesas uPD720202 host controller solution for stable USB 3.0 performance.
Provides eight dedicated 5Gbps USB 3.0 ports for high-density device connectivity.
Utilizes PCIe 2.0 x8 bandwidth to ensure full throughput for all connected USB devices.
Supports PCIe slot power or external 15-pin SATA power for high-power USB devices.
Designed for machine vision, factory automation, medical, and security monitoring systems.
Complete technical details for integration and deployment planning.
| Main Controller | Renesas uPD720202 |
|---|
| Host Connector | PCIe 2.0 x8 |
|---|---|
| External Ports | 8 x USB A 3.0 |
| Data Rate | Ultra-high speed (5.0Gbps), High speed (480.0Mbps), Full speed (12.0Mbps), Low speed (1.5Mbps) |
|---|
| USB Port Power | 5V 1500mA per port (PCIe slot only) |
|---|---|
| External Power Supply | 15-pin SATA connector (+3.3V 2A, +12V @ 2.1A Max 18W or +12V @ max 6A Max 60W) |
| Dimensions | 111mm x 165mm (WxL) |
|---|---|
| Working Temperature | 0°C ~ 60°C |
| Storage Temperature | -40°C ~ 85°C |
| Storage Humidity | 5% ~ 90% RH NC |
| Security Certificate | CE, FCC, RoHS |
|---|
