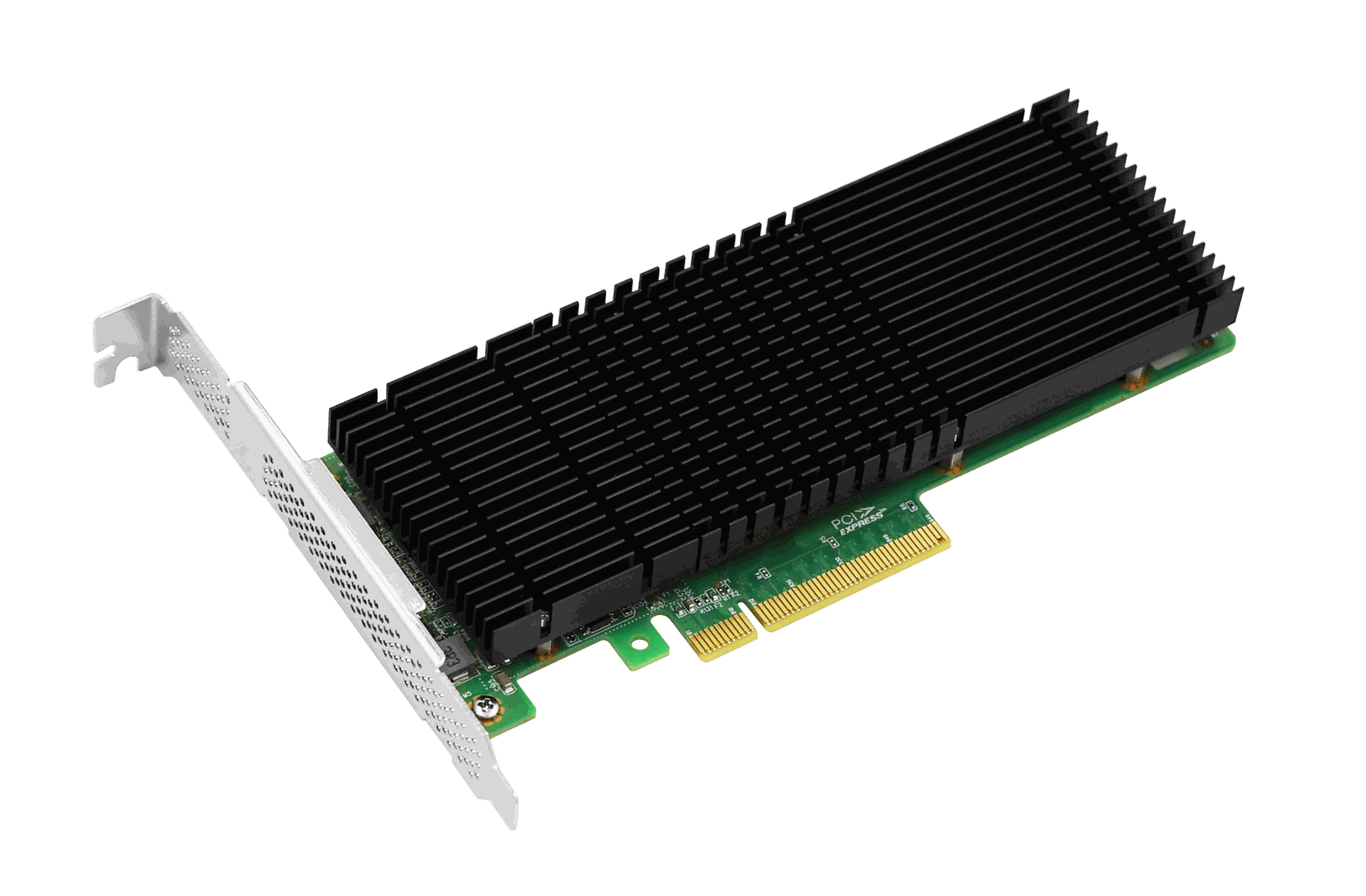

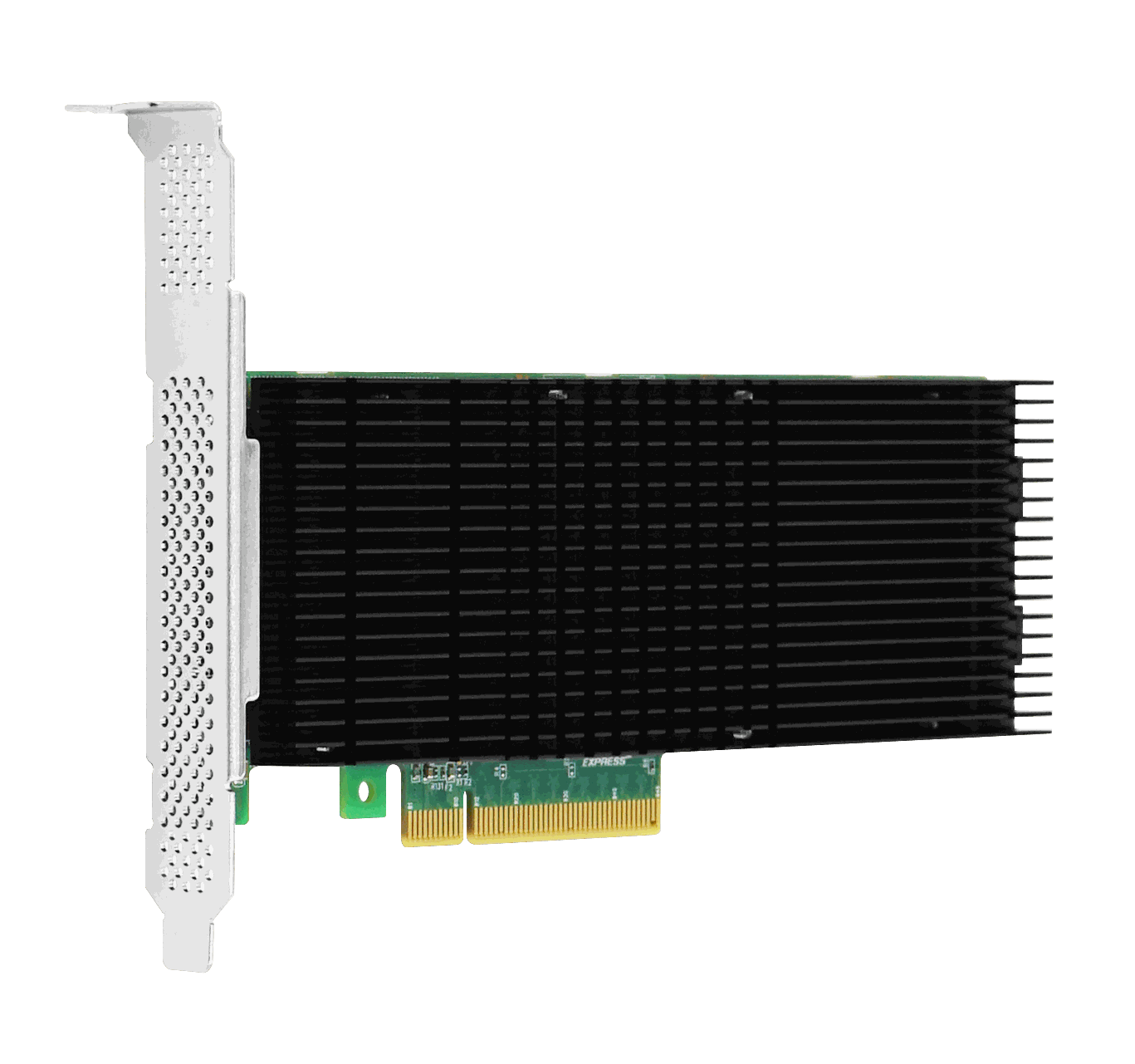

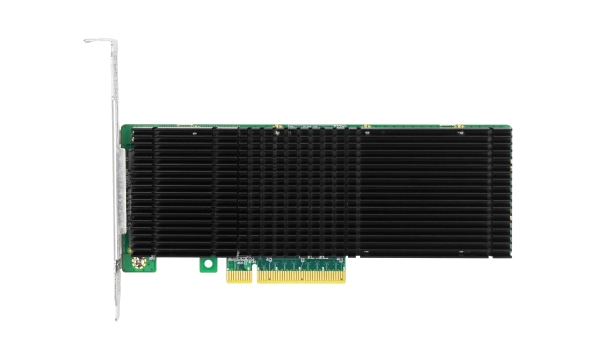

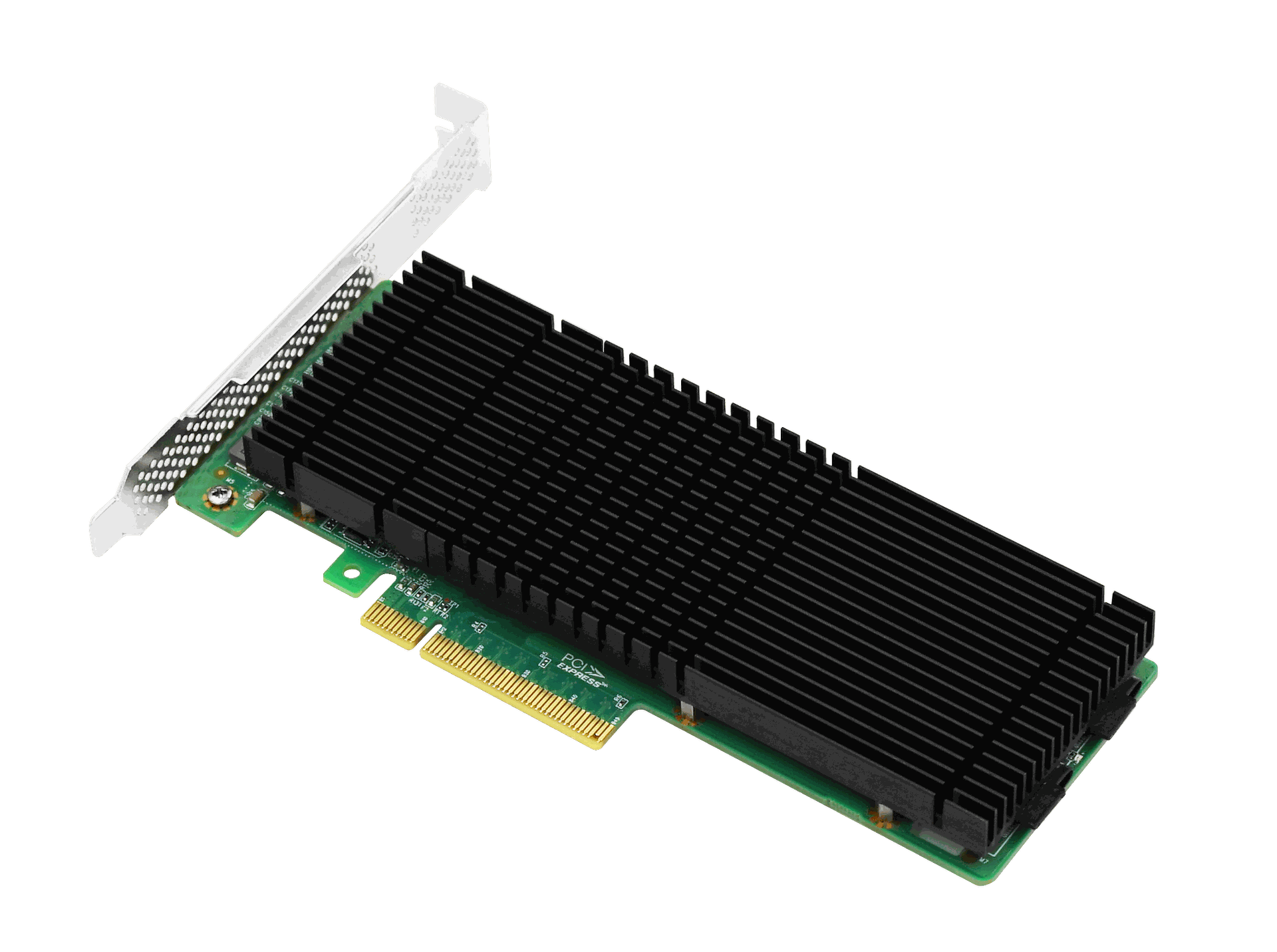

PCIe 3.0 x8 adapter with dual M.2 NVMe slots and hardware RAID 0/1 support.
Scaling storage capacity in a PCIe slot-limited server often means compromising between SSDs and GPUs. The LRSV9310-2IR PCIe 3.0 x8 to Dual M.2 NVMe RAID Adapter solves this by enabling two high-speed NVMe drives in a single half-height, half-length card.
Powered by the Marvell 88NR2241 controller, this adapter delivers hardware RAID 0 and 1 support, ensuring both performance and data redundancy. With compatibility for M.2 form factors 2230 through 22110, it provides flexible storage expansion without consuming valuable chassis space, optimizing system layout for high-performance computing.
Ideal for data centers, virtualization, and cloud storage environments, this solution leverages Marvell technology for reliable data integrity. The LRSV9310-2IR offers a compact, efficient way to enhance storage throughput and security in professional workstations and servers.
Supports RAID 0, RAID 1, and JBOD for data security and performance optimization.
PCIe 3.0 x8 interface (8GT/s) ensures rapid data transfer rates for NVMe SSDs.

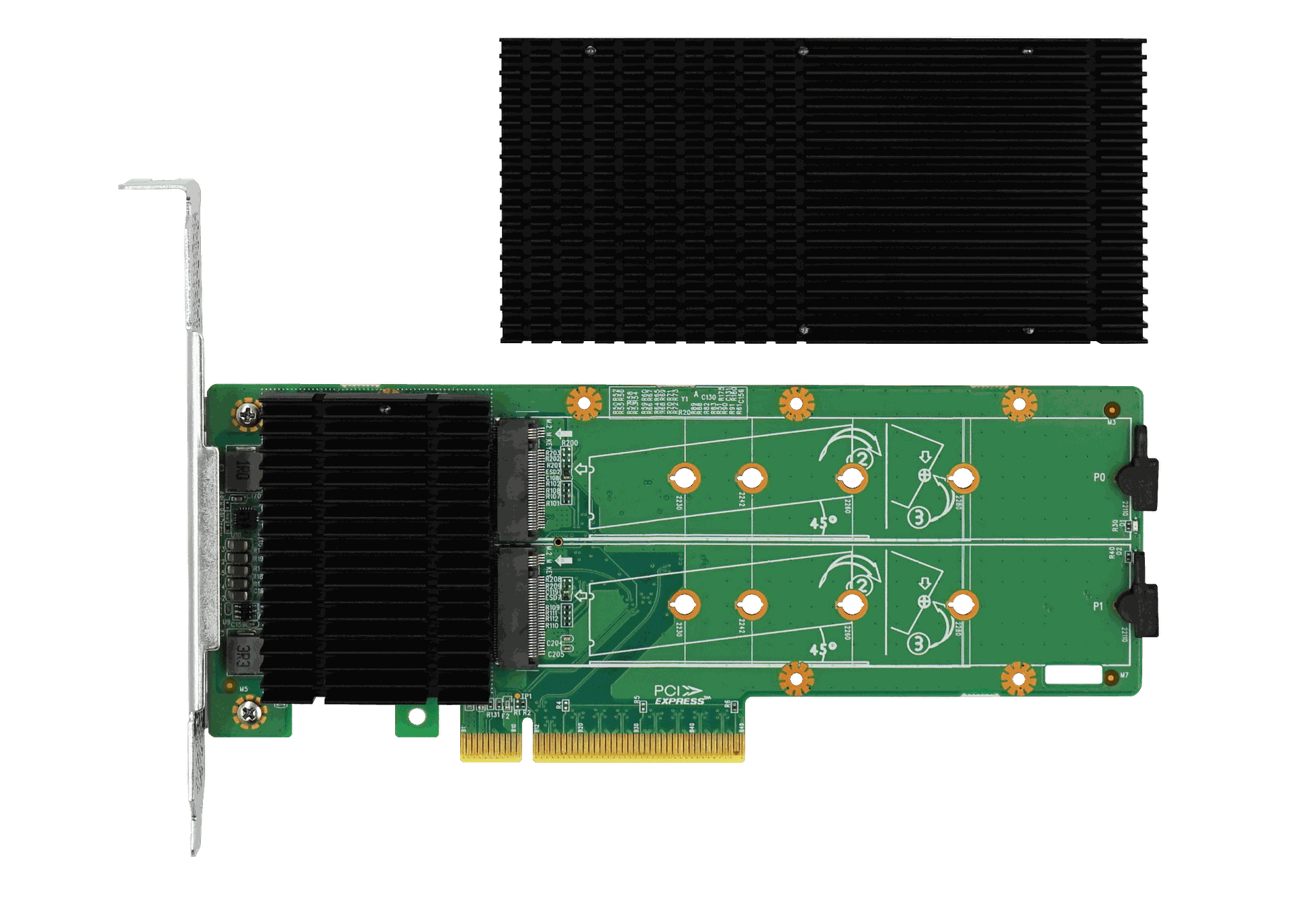

Supports M.2 form factors 2230, 2242, 2260, 2280, and 22110 for flexible storage options.
Half-height, half-length PCB with low profile and full height brackets saves chassis space.
Complete technical details for integration and deployment planning.
| Controller Chip | Marvell 88NR2241 |
|---|
| Bus Type | PCIe 3.0 (8GT/s) x8, compatible with x16 |
|---|
| Connectors | 2 * M.2 (M key) NVMe ports |
|---|---|
| SSD Form Factor | 2230/2242/2260/2280/22110 |
| RAID Levels | RAID 0, RAID 1, JBOD |
|---|
| Power Consumption (Min) | 2.988W |
|---|---|
| Power Consumption (Max) | 11.904W |
| PCB Size | 68.9 * 168 * 1.6 mm (half-height, half-length) |
|---|---|
| Bracket Height | Low Profile & Full Height |
| Operating Temperature | 5°C - 50°C |
|---|---|
| Storage Temperature | -25°C - 70°C |
| Humidity | 90% non-condensing relative humidity at 35°C |
| Windows | Windows 10/11, Windows Server 2016/2019/2022 |
|---|---|
| Linux | RHEL/Centos 7.6/7.9/8.2/9.0, Ubuntu 18.04.5/20.04.1/22.04.2, SUSE 15 SP2, Deepin 15.11/20/20.6/20.9, UOS 20, NewStart OS 5.0.5, YMOS, OpenKirin 0.7.5 |
| Virtualization | VMware ESXi 6.7/7.0/8.0 |
| Other | Galaxy Kirin v10, NeoKirin 7.6, Fangde Desktop OS 5.0, Fangde Server OS |
Discover how LR-LINK products deliver value in real-world deployments.

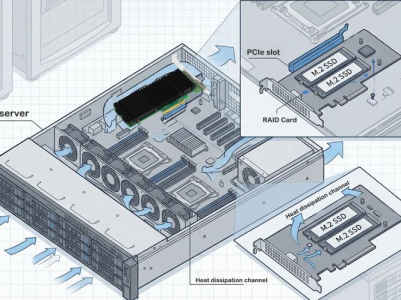

With the transformation and upgrading of intelligent manufacturing, machine vision inspection systems have become critic
