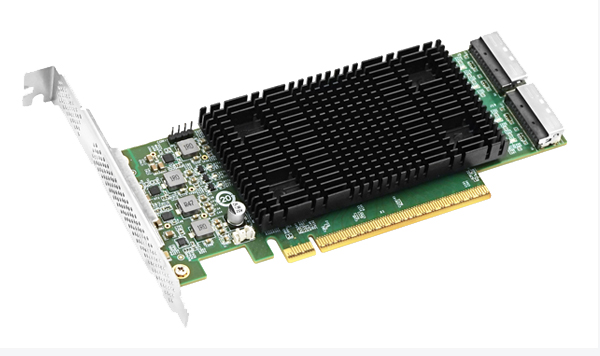

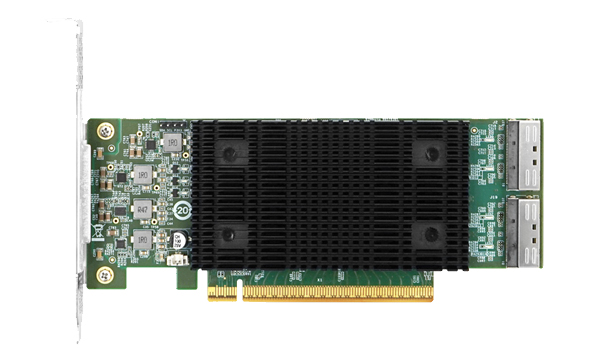

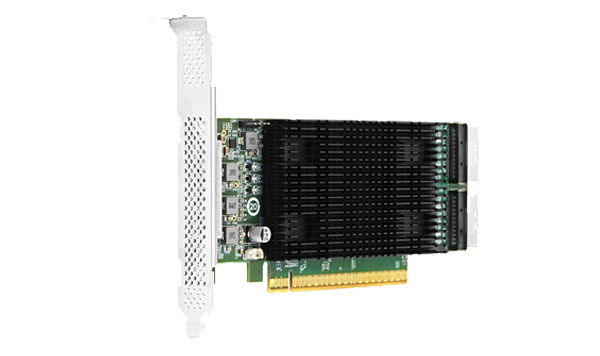

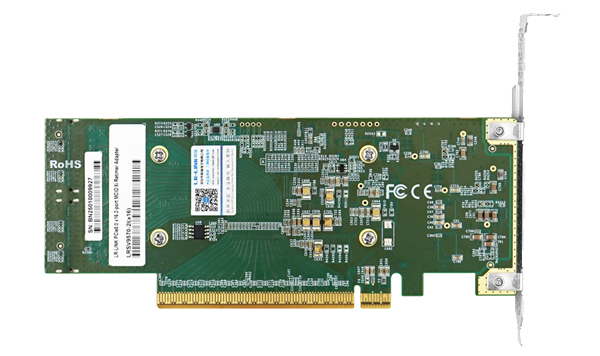

PCIe 5.0 x16 to dual MCIO 8i Retimer NVMe expansion card with CXL 2.0 support.

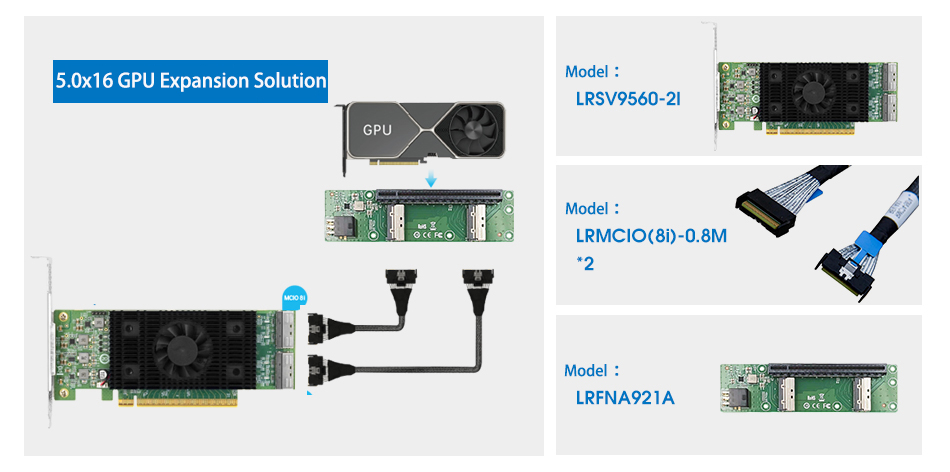

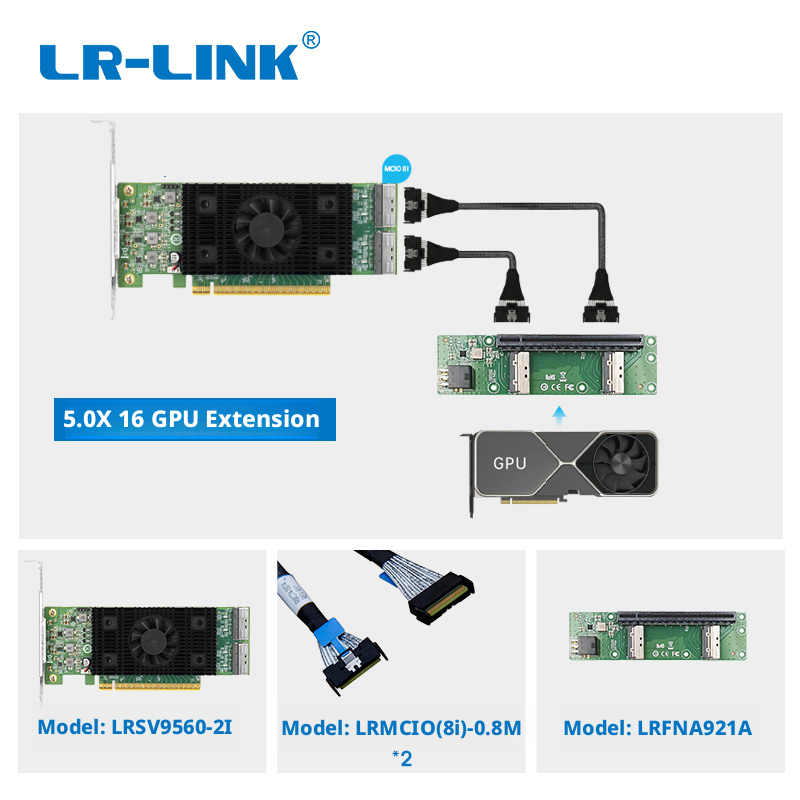

Scaling storage capacity in GPU-accelerated servers often requires expanding NVMe drives without consuming excessive PCIe slots or bandwidth. The LRSV9560-2I addresses this by converting a single PCIe 5.0 x16 slot into two internal MCIO 8i interfaces, enabling direct SSD connection or backplane expansion.
Powered by the Montage M88RT51632 controller, this card delivers 32GT/s throughput with minimal latency and low power consumption (min 6.10W). This efficiency eliminates thermal bottlenecks while ensuring reliable data flow for high-density storage arrays and AI training clusters.
Ideal for data centers requiring CXL 2.0 shared memory integration, the LRSV9560-2I provides flexible splitting options (1x16, 2x8, 4x4) to match motherboard capabilities. Its robust design ensures optimal performance for enterprise workloads demanding speed, reliability, and scalable storage architecture.
Supports PCIe 5.0 x16 standard with 32GT/s data transfer rate for maximum bandwidth.
Enables CXL 2.0 Alt Mode for shared memory and flexible system configuration.

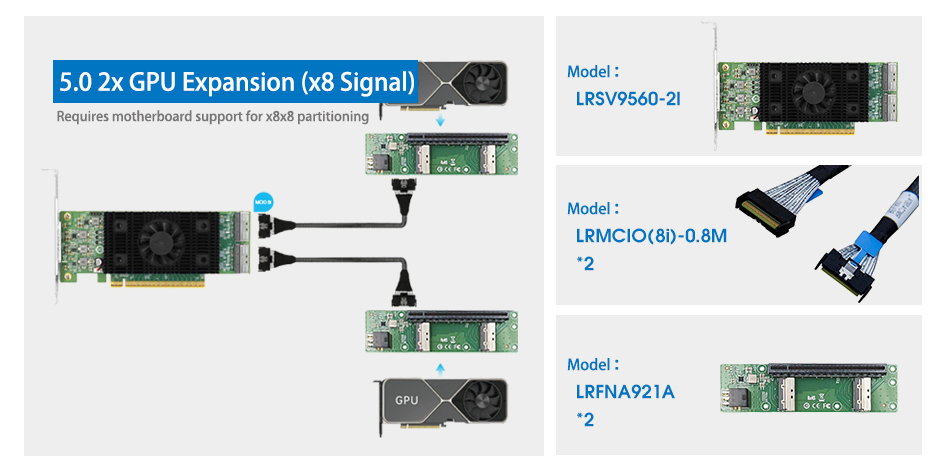

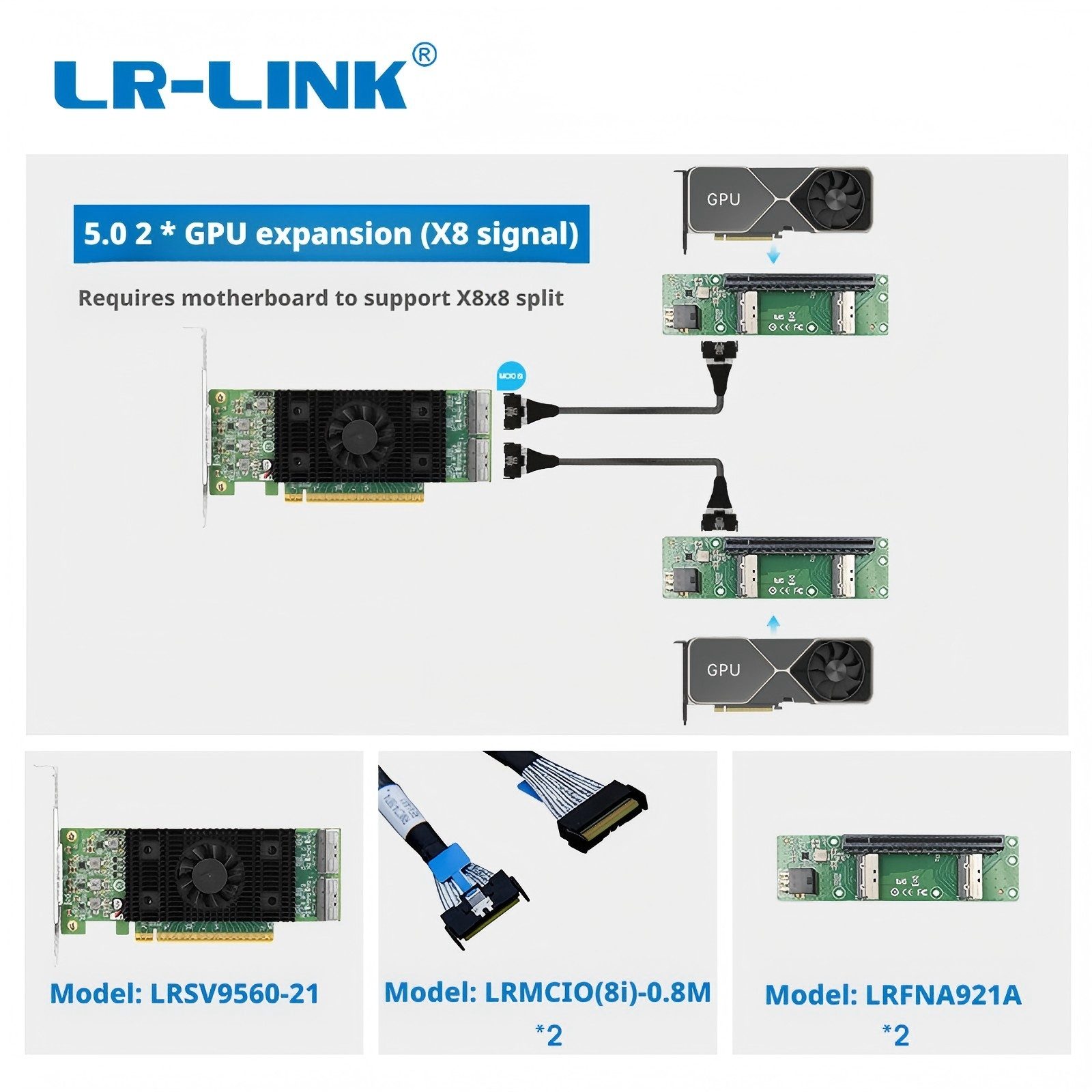

Supports 1x16, 2x8, and 4x4 splitting modes to adapt to different motherboard layouts.
Provides two internal MCIO 8i interfaces for connecting multiple NVMe SSDs.
Optimized for low power consumption (min 6.10W) and low latency operation.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Model | LRSV9560-2I |
|---|---|
| Controller Chip | Montage M88RT51632 |
| PCIe Standard | PCIe 5.0 x16 |
| Data Rate | 32GT/s |
| Interface Type | MCIO 8i |
| Interface Count | 2 |
| Protocol Support | PCIe 5.0, CXL 2.0 Alt Mode |
|---|---|
| Feature Support (Yes) | Splitting Modes (1*x16, 2*x8, 4*x4), Low Power, Low Latency |
| Feature Support (No) |
| Min Power Consumption | 6.10W |
|---|---|
| Max Power Consumption | 19.14W |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% RH at 35°C (non-condensing) |
| Power Supply | PCIe Power |
| PCB Dimensions | 170*68.9*1.6 mm |
|---|---|
| Bracket Height | Low Profile & Full Height |
| Certifications | FCC, CE, RoHS |
| OS Compatibility | Windows, Windows Server, Debian, RHEL/CentOS, Rocky, Ubuntu, OpenKylin, SUSE, VMware ESXi, Kylin, Deepin, YMOS, NewStart, Hi-SpiderRouter, NEOKylin, ATLServer, FandeServer, REDOS, UOS, Alce, OpenEuler, ikuairouting, FusionOS |
|---|
