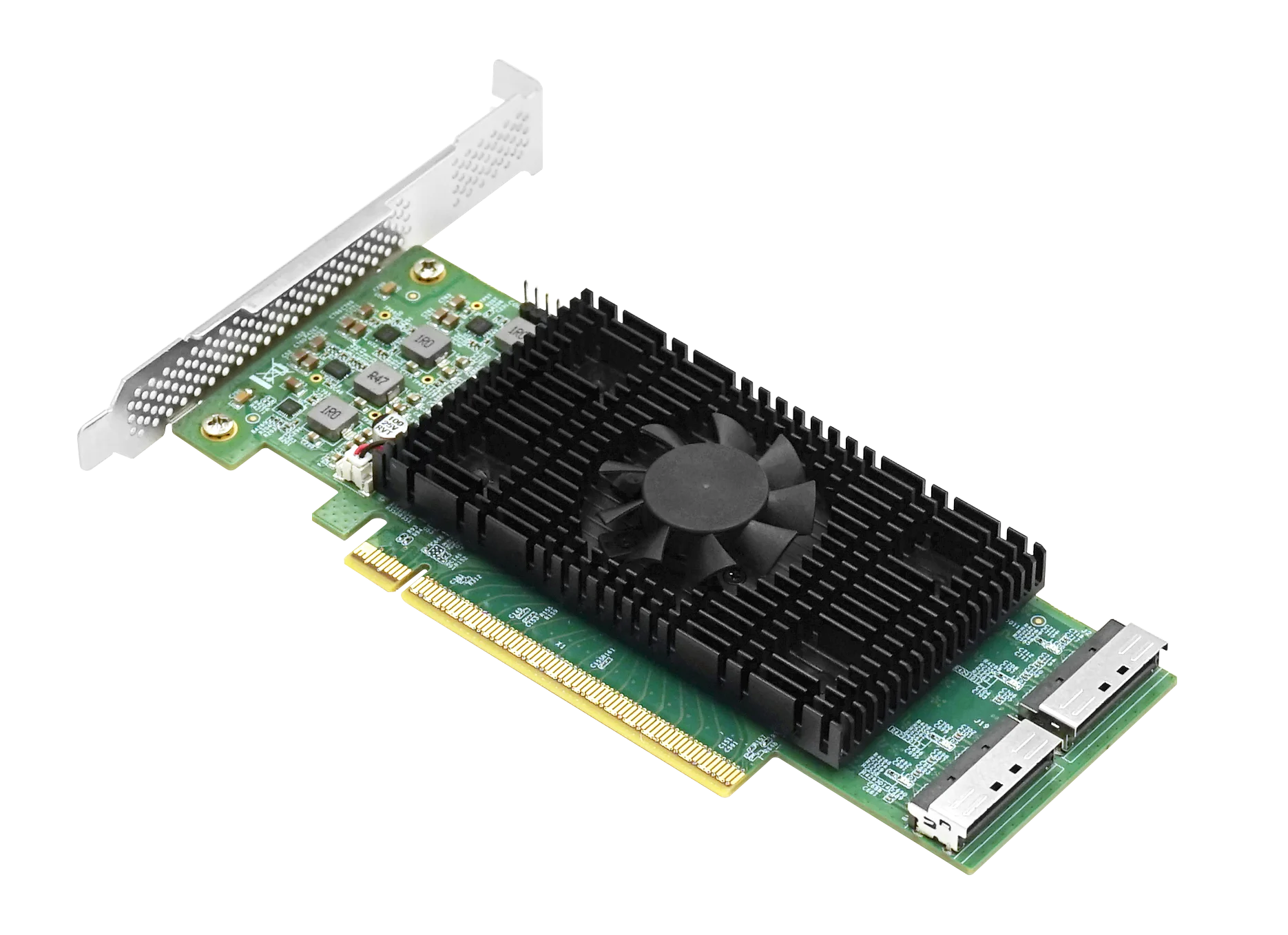

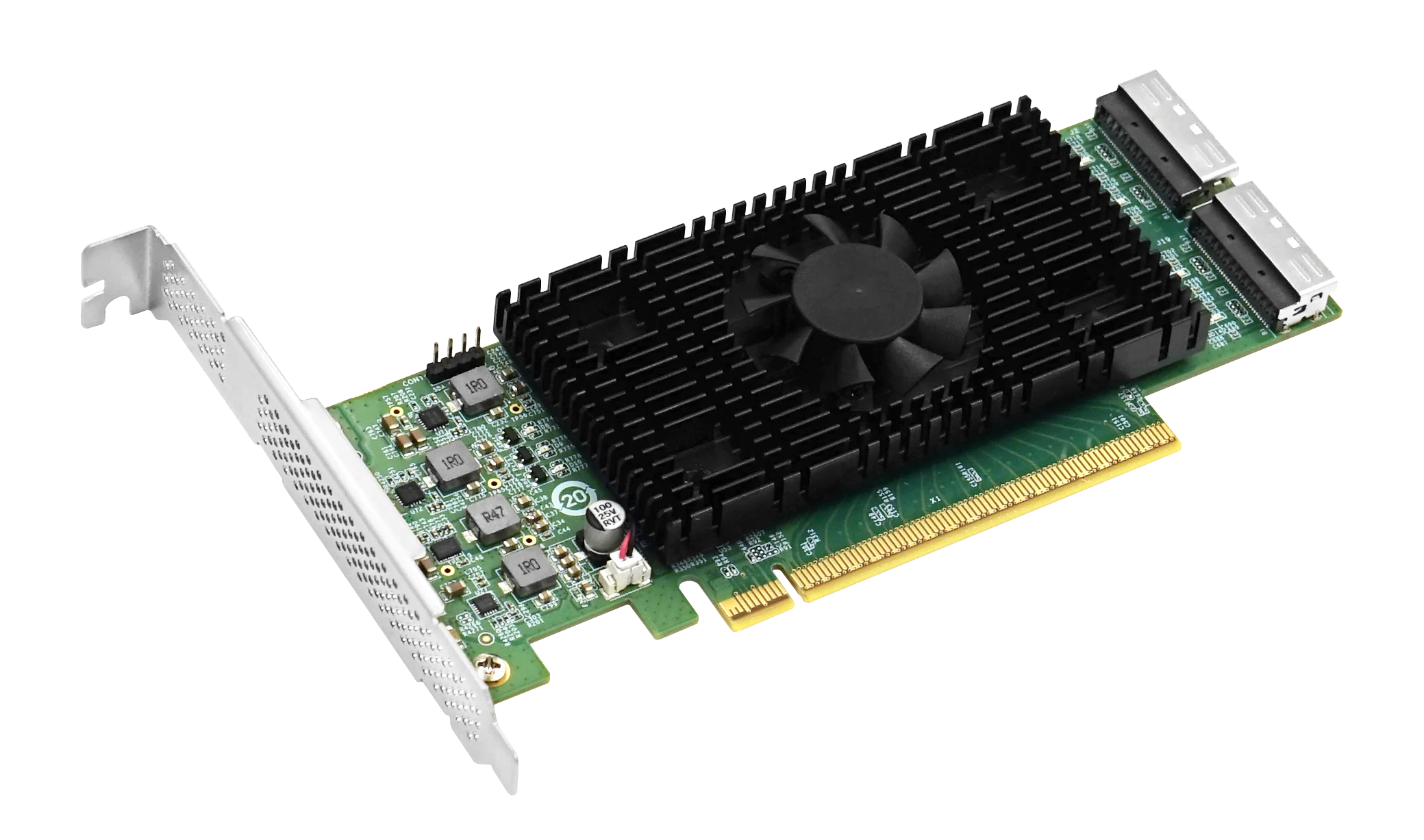

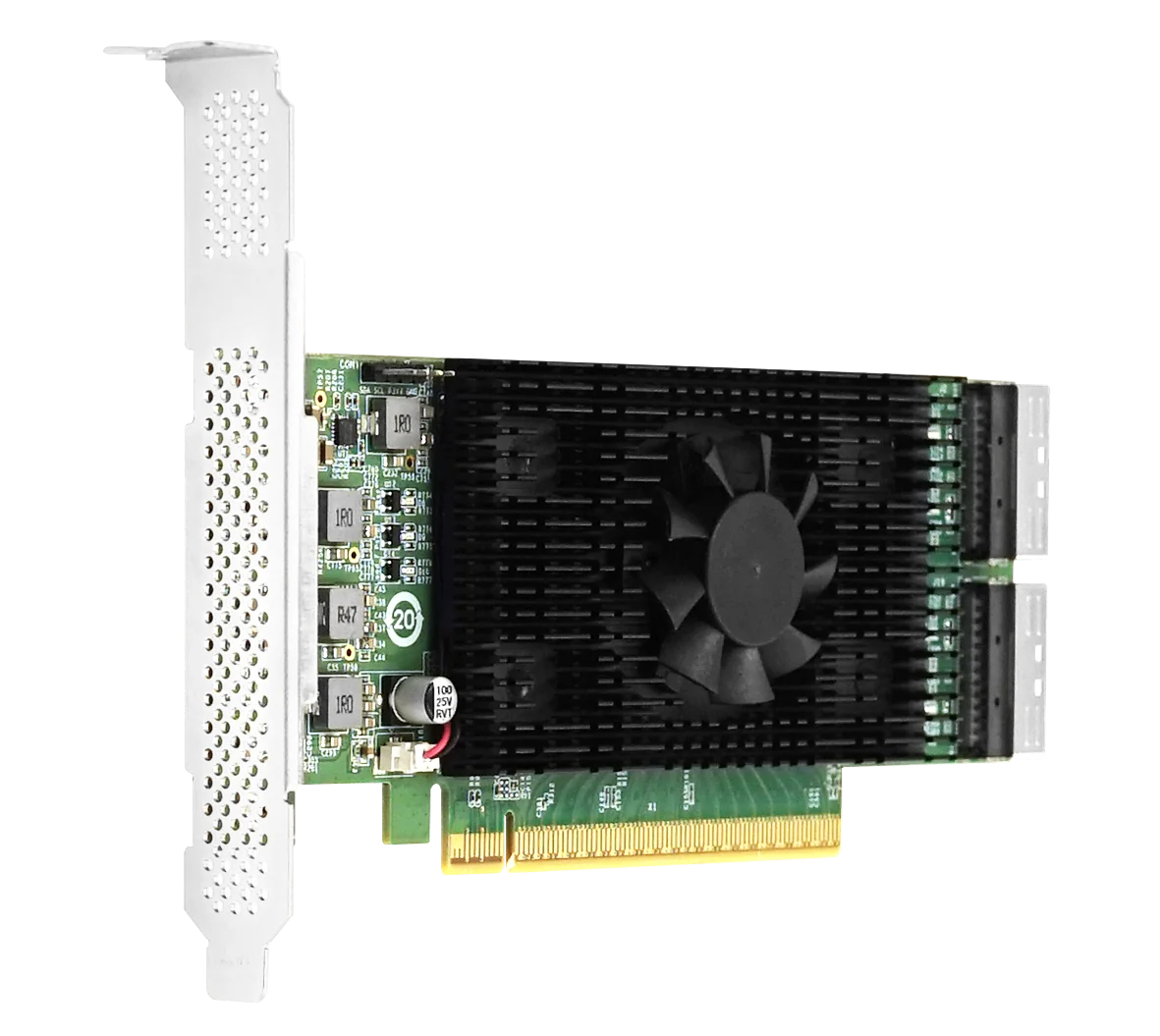

PCIe 5.0 x16 to 2-port MCIO 8i retimer NVMe expansion card for servers and workstations.
When data-intensive workloads cause storage I/O bottlenecks in servers and workstations, the lack of PCIe bandwidth stalls critical applications. The LRSV9570-2I NVMe expansion card solves this by leveraging PCIe 5.0 x16 connectivity, enabling direct attachment of two MCIO 8i NVMe SSDs for seamless high-speed data access.
Powered by a Silicon Innovation XRET5032 retimer, it delivers 32 GT/s per lane and supports 1x16, 2x8, or 4x4 bifurcation, eliminating bus contention and ensuring smooth multi-device operation. The dual MCIO 8i ports provide versatility for SSD direct-attach, backplane expansion, and GPU accessory expansion, effectively doubling storage possibilities.
The card’s support for CXL 2.0 Alt mode enables memory sharing, cutting latency for high-performance computing tasks. With low-profile and full-height bracket options, wide OS compatibility (Windows, Linux, VMware), and a -10°C to 55°C operating range, the LRSV9570-2I meets demanding enterprise requirements for scalability and reliability.
Complies with PCIe 5.0, delivering up to 32 GT/s per lane for maximum data transfer efficiency.
Enables memory sharing between host and devices, reducing latency for high-performance workloads.
Supports 1x16, 2x8, and 4x4 splitting, adapting to diverse SSD and GPU expansion configurations.
Built-in Silicon Innovation XRET5032 retimer ensures robust signal quality for reliable 32 GT/s links.
Consumes only 6.1W minimum and 19.1W maximum, reducing thermal load in dense deployments.
Two MCIO 8i connectors allow direct NVMe SSD attachment, backplane expansion, or GPU accessory integration.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Controller | Silicon Innovation XRET5032 |
|---|
| PCIe Bus | PCIe 5.0 x8 |
|---|---|
| Bus Interface | MCIO 8I |
| Number of interfaces | 2 |
| Port | Dual |
| Bracket Height | Low Profile & Full Height |
| Bifurcation Modes | 1*X16, 2*X8, 4*X4 (X4, X8 requires motherboard support for splitting) |
| Power supply | PCIe Supply |
| Power (Min) | 6.096W |
|---|---|
| Power (Max) | 19.14W |
| Operating Temp. | -10°C to 55°C |
|---|---|
| Storage Temp. | -40°C to 85°C |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35°C |
| OS List | Windows, Windows Server, RHEL/CentOS, Debian, Rocky, Deepin, YMOS, Ubuntu, OpenKylin, SUSE, VMware ESXi, NewStart, Hi-Spider Router, NEOKylin, ATL Server, FandeServer, REDOS, UOS, Alce, OpenEuler, ikuai routing, FusionOS |
|---|
| PCB Size | 115*76*1.6mm |
|---|---|
| Package Size | 250*170*32mm |
| Certification | FCC, CE, RoHS |
|---|
| Baffle specifications | Full bracket (installed) & Low Profile |
|---|---|
| Included Items | Expansion Card *1, Product Warranty Card *1 |
| Packaging | Carton+Blister box |
