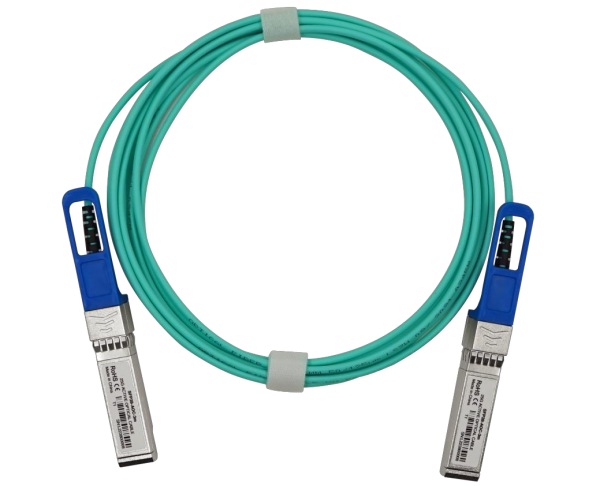

LR-LINK SFP28-AOC-3m is a 25G active optical cable for high-speed data center interconnects, supporting up to 70m transmission.
High-density data centers require flexible, low-latency cabling solutions that do not compromise on speed or reliability. Traditional copper DAC cables often suffer from weight and diameter issues, limiting airflow and management efficiency in dense rack environments.
The SFP28-AOC-3m delivers up to 25 Gb/s data transfer rates using an 850nm VCSEL laser transmitter and PIN receiver. This ensures robust signal integrity over distances up to 70m on OM3 MMF, enabling seamless scaling of 25GbE networks without the bulk of copper alternatives.
Ideal for server-to-switch and switch-to-storage interconnects, this AOC supports InfiniBand QDR, SDR, and DDR protocols. Its hot-pluggable design and RoHS compliance make it a superior choice for modern enterprise infrastructure demanding both performance and ease of deployment.
Supports up to 25 Gb/s data rate for high-performance computing and data center applications.
Achieves transmission distances up to 70m on OM3 multimode fiber, surpassing typical DAC limits.
Offers a lighter and smaller diameter alternative to traditional Direct Attach Copper (DAC) cables.
Features a standard SFP28 footprint allowing for easy installation and maintenance without system downtime.
Complete technical details for integration and deployment planning.
| Product Type | Active Optical Cable (AOC) |
|---|---|
| Data Rate | Up to 25 Gb/s |
| Length | 3m |
| Connector Type | SFP28 |
| Wavelength | 850nm |
| Max Transmission Distance | 70m (on OM3 MMF) |
| Supply Voltage | +3.3V |
|---|---|
| Power Supply Current | 300 mA |
| Operating Temperature | 0℃~+70℃ |
| Storage Temperature | -20℃~+85℃ |
| Compliance | SFF-8431, RoHS |
