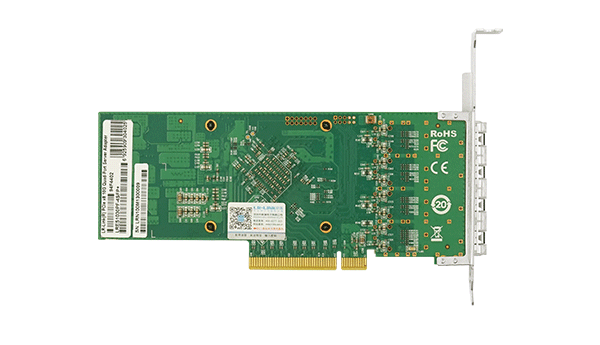

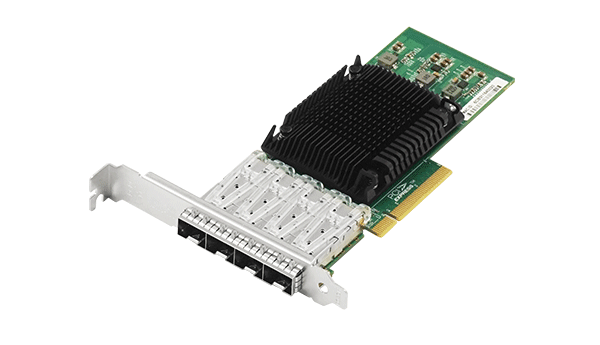

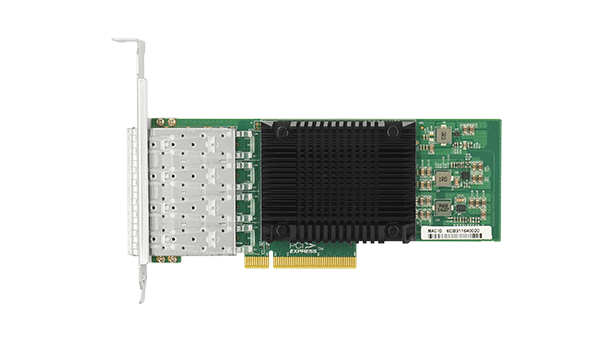

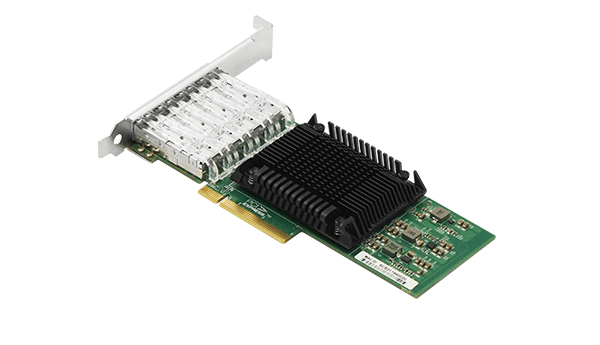

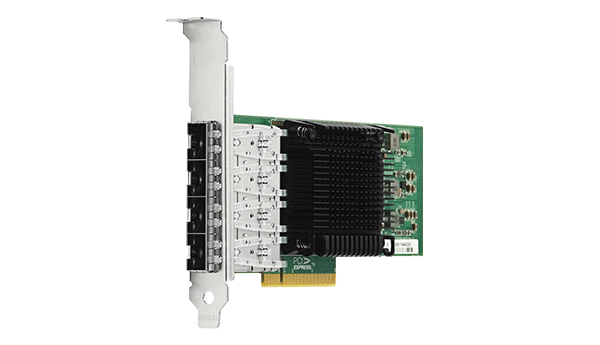

Quad-port 10G SFP+ PCIe network adapter based on Mucse RNP N10 chip for servers and security.
When scaling network bandwidth for high-security servers or AI clusters, relying on foreign-controlled chips can pose risks to data sovereignty and supply chain stability. The LRES1030PF-4SFP+ addresses this by delivering robust 10G connectivity through a domestically developed Mucse RNP N10 controller, ensuring independent controllability for critical infrastructure.
Equipped with four 10G SFP+ ports and a PCIe 3.0 x8 interface, this adapter provides up to 40Gbps of aggregate bandwidth, eliminating bottlenecks in data-intensive applications. With a power consumption of only 9.5W and support for Jumbo Frames up to 9.6KB, it optimizes throughput while maintaining energy efficiency in dense server environments.
Ideal for network security appliances, cloud servers, and embedded systems requiring reliable fiber connectivity, the LRES1030PF-4SFP+ supports CentOS, Ubuntu, Kylin, and UOS. Its compliance with IEEE standards and support for virtualization functions like VxLAN make it a secure, high-performance choice for modern data centers seeking autonomous hardware solutions.
Features Mucse's independent intellectual property rights controller, ensuring information security and breaking technical monopolies.
Provides four 10G SFP+ ports supporting various fiber types (SR/LR/Cu) for flexible high-speed network deployment.
Utilizes PCIe v3.0 x8 bus interface, compatible with PCIe x16 slots, delivering robust bandwidth for server applications.
Supports VEB, VLAN, QinQ, and VxLAN virtualization functions, ideal for cloud computing and network security devices.
Compatible with mainstream Linux distributions including CentOS, Ubuntu, Kylin, and UOS for diverse enterprise environments.
High-quality optical modules and cables for optimal compatibility with your network adapter.
Complete technical details for integration and deployment planning.
| Controller Chip | Mucse RNP N10 |
|---|
| Bus Type | PCIe v3.0 x8, compatible with PCIe x16 |
|---|---|
| Compatibility | PCIe v2.1 |
| Connector | 4*10G SFP+ |
|---|---|
| Data Rate | 10 Gigabit |
| Media Type | Fiber |
| Fiber Type Support | 10GBASE-SR, 10GBASE-LR, 10GBASE-Cu, 1GBASE-SR, 1GBASE-LR, 1GBASE-Cu |
| Power Consumption | 9.5W |
|---|---|
| Baffle Height | Half height & full height |
| PCB Size | 162.3*68.5*1.6(±1~2mm) |
| IEEE Standards | IEEE 802.3ae, IEEE 802.3z, IEEE 802.3x, IEEE 802.1AS, IEEE 802.1Q, IEEE 802.3AD, IEEE 802.3az, IEEE 802.1P, IEEE 802.3ac |
|---|
| Supported Features | PoE Management, Full Duplex, Flow Control, VLAN, Energy Efficient Ethernet (EEE), Jumbo Frames, IPsec, MACSec, VEB, QinQ, VxLAN, NVRGE |
|---|
| Unsupported Features | PXE, DPDK, WoL, iSCSI |
|---|
| System Support | CentOS/RHEL 7.1~8.5, Ubuntu 18.04.5 LTS/20.01.3, Kylin V10/V4.0.2, UOS V20 |
|---|---|
| Jumbo Frame Max | 9.6KB |
| Operating Temperature | 0 ℃ to 70 ℃ (32 ℉ to 158 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Certification | FCC, CE, RoHS |
