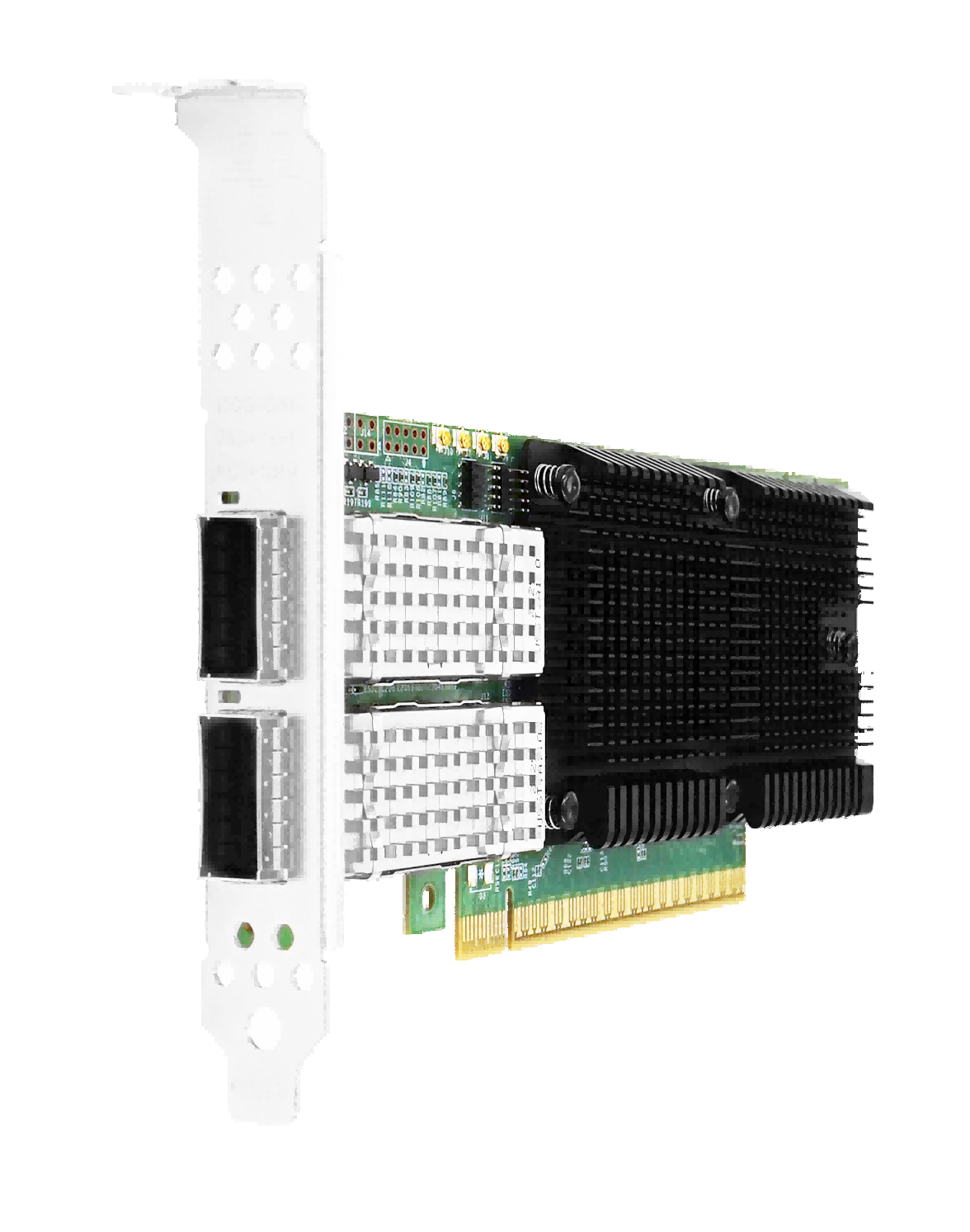

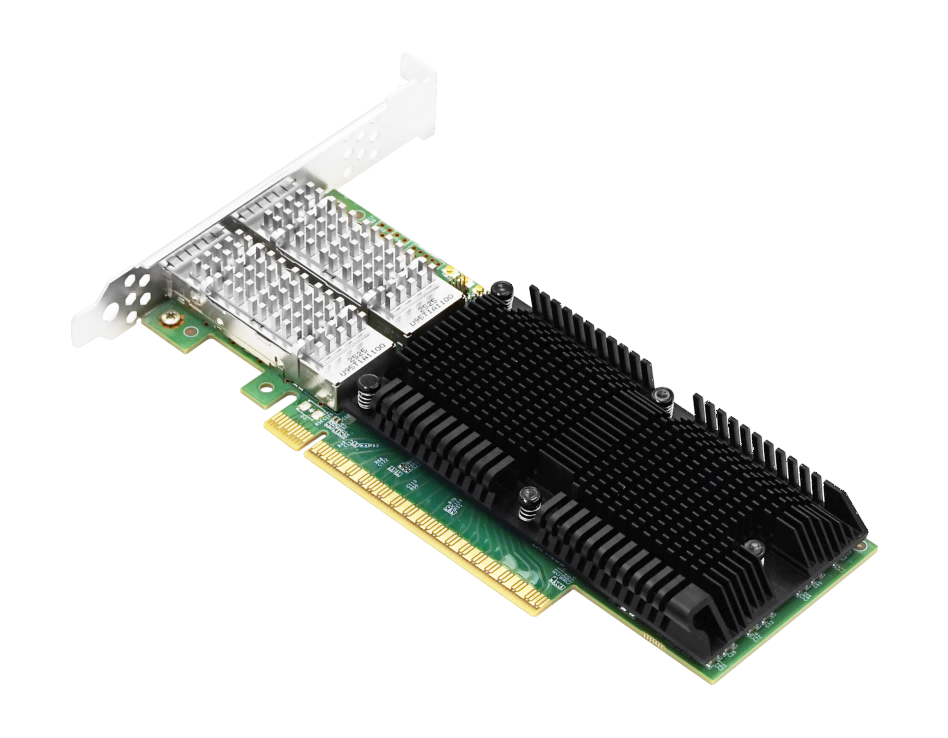

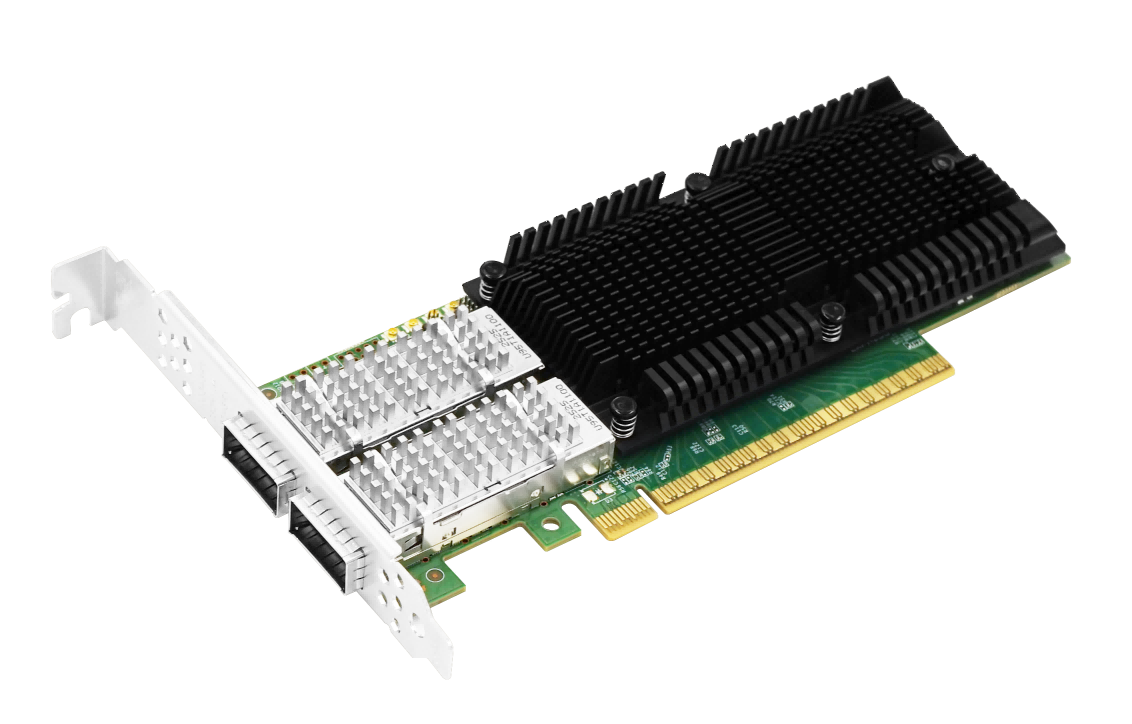

LRES1080PF-2QSFP56

100G | Dual-Port Network Adapter | PCIe 4.0 x16

Speed up to 200GbE
Dual Port QSFP56 for 200GbE/100GbE
PCIe5.0 X8 or PCIe 4.0 X16
Supports multiple port configruations using EPCT
Supports DDP, DPDK,
Overview

LRES1080PF-2QSFP56 is a dual-port 100G network adapter, it can be configured to speeds up to 200GbE, Supports the growing bandwidth demands of modern networks, especially for cloud services, virtualized environments, and large data transfers. The low-power design enables decreased energy consumption across the system to reduce costs and environmental impact, solving increasingly important power density challenges.

LRES1080-2QSFP56 supports multiple speeds, In addition to the default configuration of 2x100G, it can also be configured through the Ethernet Port Configuration Tool(EPCT) to 1X200G(Port 1 only),4X50G,2X50G, and 8X25G(via breakout cables) .


Specifications

Product Specifications

Model

LRES1080PF-2QSFP56

Controller

Intel E830

Adapter Type

PCIe NIC

Form Factor

HHHL

Host Connector

PCIe 4.0 x16 or PCIe 5.0 x8

Connectors

2QSFP56

Port

Dual

Link Speed

25/50/100/200Gbps

Protocol Support

‌IEEE 1588‌

‌IEEE 802.1AS‌

‌IEEE 802.3‌

‌IEEE 802.1Q‌

‌IEEE 802.1BR‌

‌IEEE 802.1Qbv‌

‌IEEE 802.1Qbu‌

‌IEEE 802.1Qbb

Functional Support

PXE/UEFI

Yes

WoL

No

SR-IOV

Yes

1588 PTP

Yes

Jumbo Frames

9.7KB

Power

DAC

12.8WMax

Optical Transceiver

16.2W (Max)

LED Indicators

LED Type

Color/Behavior

Note

Link

Off

No link

Amber

Link at lower speed

Green

Link at 100Gbps

Activity

Off

No Activity

Green(blink)

Linkup(traffic flowing)

Supported Physical Layer Interfaces

200GBASE-CR2100GBASE-CR4 / 100GBASE-CR250GBASE-CR2 / 40GBASE-CR4200GBASE-SR2100GBASE-SR4100GBASE-SR240GBASE-SR4200GBASE-DR2100GBASE-LR4 / 100GBASE-FR4100GBASE-DR / 100GBASE-FR

Supported Systems

OS

·Windows

·Deepin

·VMware ESXi

·Founder Tech OS

·Kylin OS

·Open Kylin

·RHEL/Centos

·Rocky

·Ubuntu

·SUSE

·NewStart OS

·OpenEuler

·FusionOS

·ATL Server

·Alce

Technical Specifications

Operating Temperature

-10°C to 60°C

Storage Temperature

-40°C to 70°C

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 °C

Certification

FCC, CE, RoHS

Physical Properties

Product Size

170*68.74mm

Package Size

250*170*32mm

Packing List

Internet Network Adapter

*1

Product Warranty Card

*1

Packaging

Carton + Blister Box
