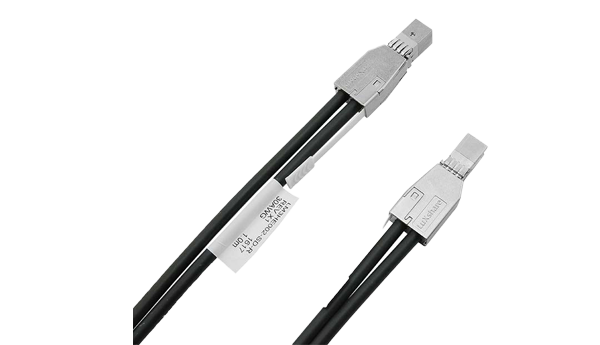

1-meter MiniSAS HD to MiniSAS HD internal cable assembly for high-speed storage connectivity.
When signal integrity issues cause storage link failures in dense server chassis, reliable cabling becomes critical for maintaining uptime. The LRSF4444-1M MiniSAS HD cable assembly ensures stable connectivity for enterprise storage deployments.
This 1-meter cable is tested at 12.00 Gbps per lane, enabling consistent throughput for SAS/SATA RAID arrays and JBOD enclosures. With 30/28 AWG wiring and shielded construction, it minimizes crosstalk and EMI interference in high-density rack servers.
Ideal for connecting HBAs to backplanes or drive trays, this Amphenol-manufactured assembly meets strict UL and RoHS2 compliance standards. The LRSF4444-1M delivers dependable physical layer performance for mission-critical storage infrastructure.
Tested at 12.00 Gbps to ensure signal integrity for high-speed SAS storage links.
Copper tape and braid shielding minimize interference in dense server environments.
Meets UL, CSA, CE, and RoHS2 standards for global data center deployment.
Amphenol-manufactured with anti-static controls and serialized EPROM tracking.
Complete technical details for integration and deployment planning.
| Product Type | Cable Assembly |
|---|---|
| Connector A | MiniSAS HD |
| Connector B | MiniSAS HD |
| Length | 1M |
| Test Speed | 12.00 Gbps |
|---|---|
| Wire AWG | 30/28 AWG |
| Diameter | 7.0" ± 1.0" |
|---|---|
| Shielding | Copper Tape + Braid |
| Certifications | UL ZPFW2 E86140, CSA, CE, WEEE, RoHS2 |
|---|---|
| Solder Standard | Lead Free (CS-1186) |
