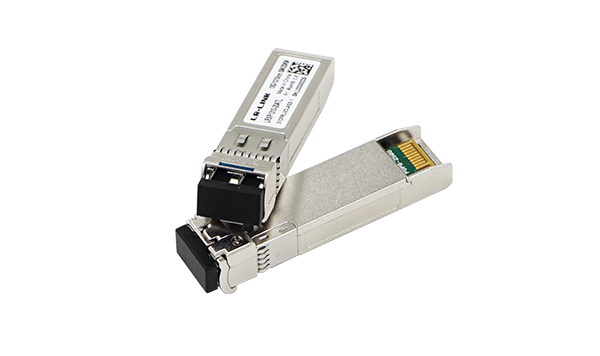

10Gb/s SFP+ single-mode fiber module with 20km transmission range.
When extending network connectivity across large campus environments or data center interconnects, maintaining signal integrity over long distances is critical. Standard multimode modules often fail beyond a few hundred meters, creating infrastructure gaps. The LRXP1310-20ATL 10G SFP+ single-mode fiber module solves this by enabling reliable 10Gb/s transmission up to 20 kilometers.
With a 1310nm DFB laser transmitter and compliance with IEEE 802.3ae standards, this module ensures stable data rates between 9.98 and 11.3 Gb/s. Its low power consumption of less than 1W reduces operational costs in high-density switch deployments, while the hot-swappable design allows for easy maintenance without system downtime.
Ideal for server adapters, storage area networks, and enterprise core switches, this module meets IEC-60825 laser safety standards. The robust construction offers excellent ESD protection and low EMI, ensuring consistent performance in demanding industrial and cloud computing environments. Choose LR-LINK for reliable long-reach optical connectivity.
Supports transmission distances up to 20km over single-mode fiber, ideal for campus and data center interconnects.
Delivers 10Gb/s data transmission capability compliant with IEEE 802.3ae standards for high-bandwidth applications.
Consumes less than 1W of power, reducing energy costs and heat generation in high-density switch environments.
Allows for easy installation and replacement without powering down the host system, minimizing downtime.
Complies with IEC-60825 laser safety standards and features excellent ESD protection for reliable operation.
Complete technical details for integration and deployment planning.
| Product Type | 10G SFP+ Single-mode Ethernet Fiber Optic Module |
|---|---|
| Data Rate | 10.3125 Gb/s (Typical) |
| Transmission Distance | Up to 20 km over SMF |
| Wavelength | 1310 nm |
| Power Consumption | < 1W |
| Supply Voltage | +3.3V |
| Transmitted Optical Power | -6 to +0.5 dBm |
|---|---|
| Optical Center Wavelength | 1290 - 1330 nm |
| Extinction Ratio | 3.5 dB |
| Side-Mode Suppression Ratio | 35 dB |
| Dispersion Penalty | 3.2 dB |
| Input Optical Power Overload | 1.5 to 0 dBm |
|---|---|
| Receiver Wavelength Range | 1260 - 1360 nm |
| LOS High Level Warning | -30 dBm |
| LOS Low Level Warning | 16 dBm |
| Receiver Dispersion Penalty | 0.5 dB |
| Operating Temperature | 0℃ ~ 70℃ |
|---|---|
| Storage Temperature | -40℃ ~ 80℃ |
| Safety Standard | IEC-60825 |
| Compliance | RoHS Compliant |
| Protocol Support | IEEE 802.3ae |
| Feature Support (Yes) | Hot-swappable, TTL Interface, Single Power Supply |
| Feature Support (No) |
